0.160 X 3-1/2 SDWS FRAMING TAN T25 750CT

$245.26

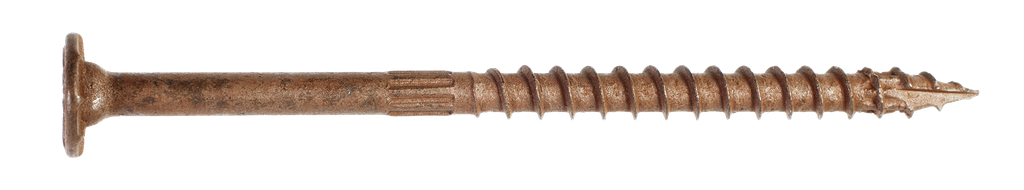

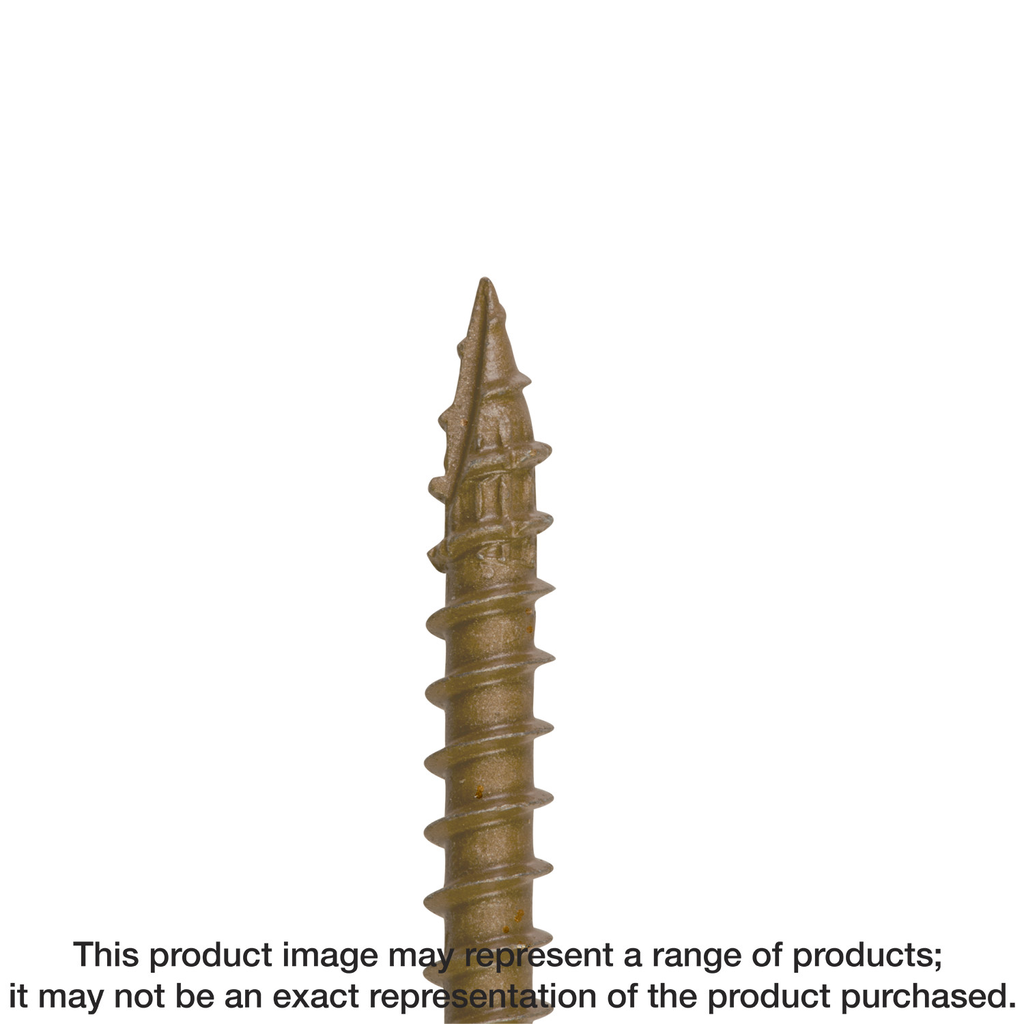

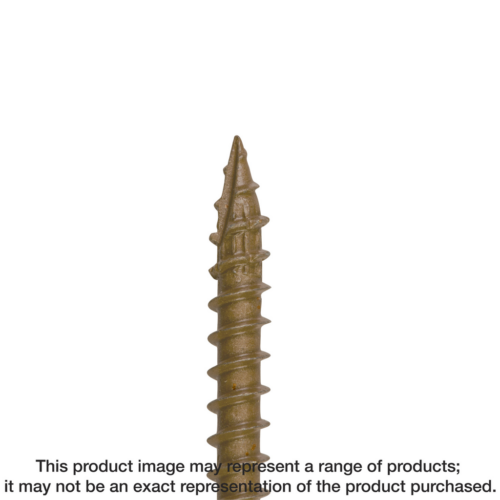

Engineered for strength and ease of use, the Simpson Strong-Drive SDWS FRAMING Screw is a versatile fastener perfect for both indoor and outdoor applications. With a robust 0.160-inch diameter and a 3-1/2 inch length, its large head, featuring underhead box-nibs, offers increased bearing for structural integrity while ensuring a clean and hassle-free countersink. The Quik Guard coating enhances durability and corrosion resistance, making it suitable for various environments. Additionally, the serrated threads minimize installation torque, allowing for quick and efficient driving, complemented by a SawTooth Type-17 tip that eliminates the need for predrilling. Included with the screws is a driver bit designed to fit perfectly, reducing cam-outs and extending the lifespan of your tools, making these screws a reliable choice for your construction needs.

SKU: SDWS16312Q Category: Tags: , , , Barcode: 707392015284.

Description

The SDWS Framing screw is designed and load-rated for replacing 16d, 10d and 8d nails in framing applications. The SDWS Framing screw is 0.160 in. in diameter and superior to nails in holding power and pull-out resistance. It is code listed under IAPMO UES ER-192 and meets 2018 and 2021 IRC® and IBC® code requirements for several common wood framing applications.

Additional information

Weight 16.6 lbs
Dimensions 5 × 5 × 5 in
Length

3-1/2 in

Diameter

0.160 in
