1-1/2 X 22-5/16 RETRO PLATE STRAP ZMAX
$6.36

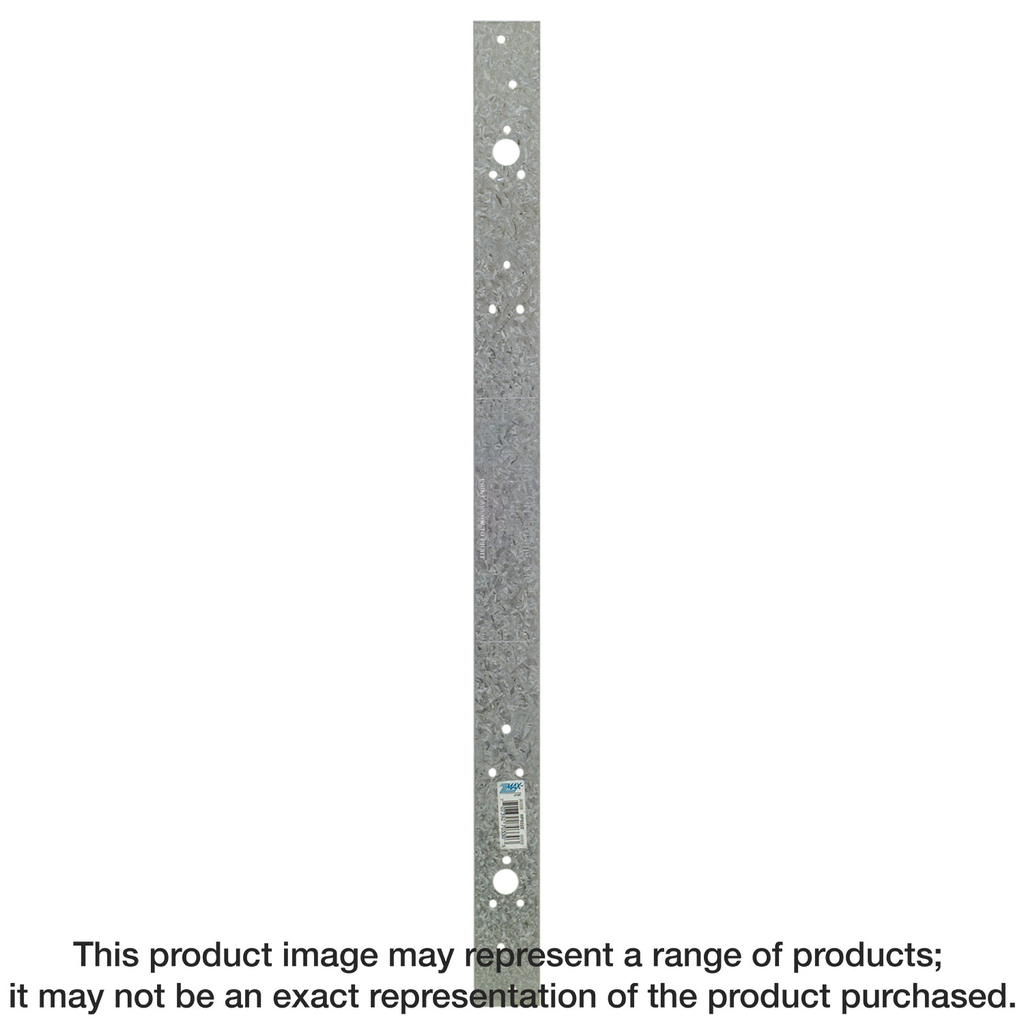

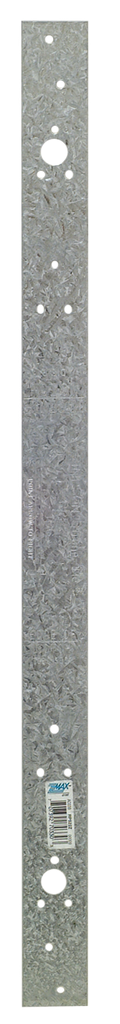

Engineered for versatility and durability, the Retrofit Strap Tie is an essential component for securing wood members where pipes and ducts are installed. Crafted from robust 16-gauge steel and treated with ZMAX galvanization, this strap tie provides excellent corrosion resistance, making it ideal for both exterior and treated-wood applications. Its design allows for installation at critical junctions such as wall intersections and ridge ties, ensuring reliable support in various structural configurations. The staggered nail pattern enhances fastening strength, while its compatibility with the narrow face of a 2x member simplifies incorporation into any building project.
Description
Simpson Strong-Tie® straps and plates join and reinforce joints with simple, versatile solutions for a wide range of connections. Available in many lengths, widths and thicknesses, straps can be used on the wide or narrow face of lumber for light repairs or heavy-duty projects. Many straps are designed to be used back-to-back on a piece of lumber without fastener interference. The RPS meets IBC, IRC and City of Los Angeles code requirements for HVAC and pipes in walls.
Additional information
| Weight | 0.54 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Length | 22-5/16 in |
| Width | 1-1/2 in |
