1/2 X 5-1/2 INCH STRONG-BOLT2 1 POLY
$3.53

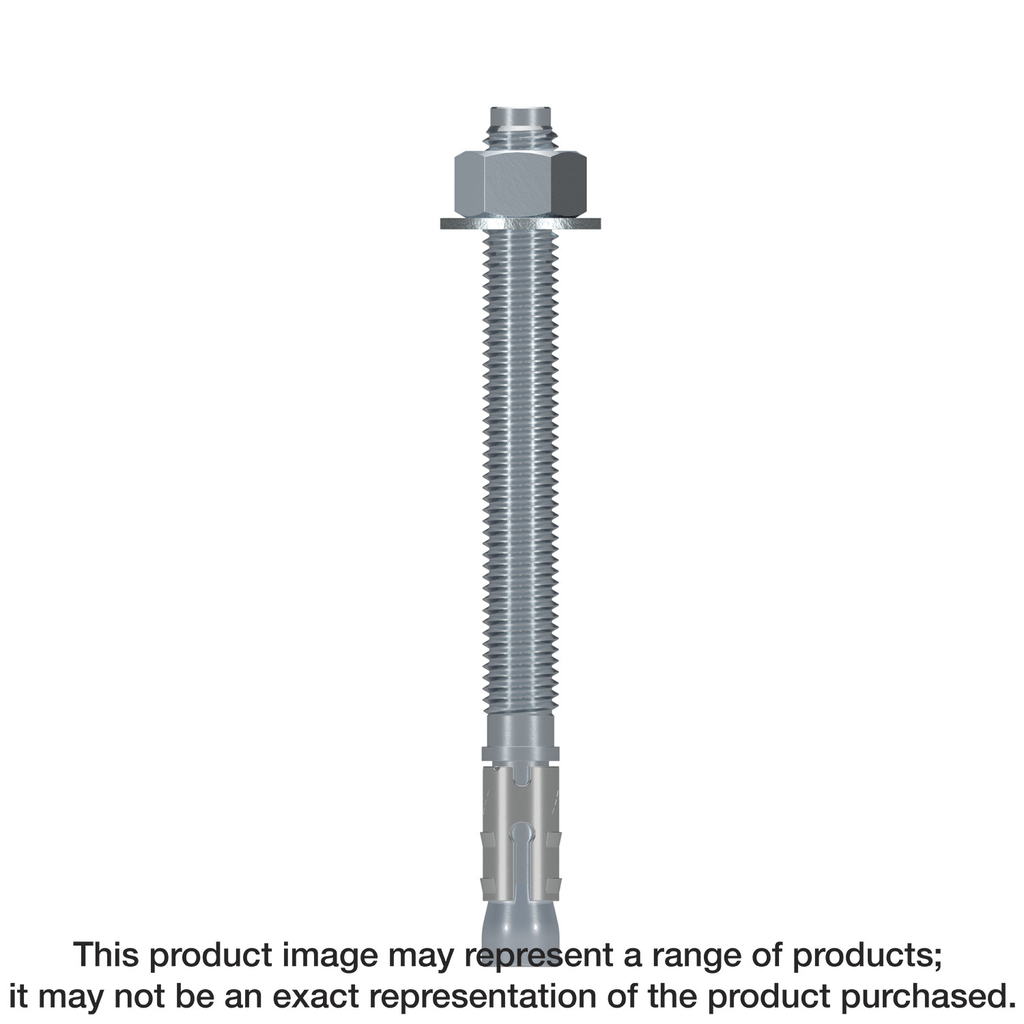

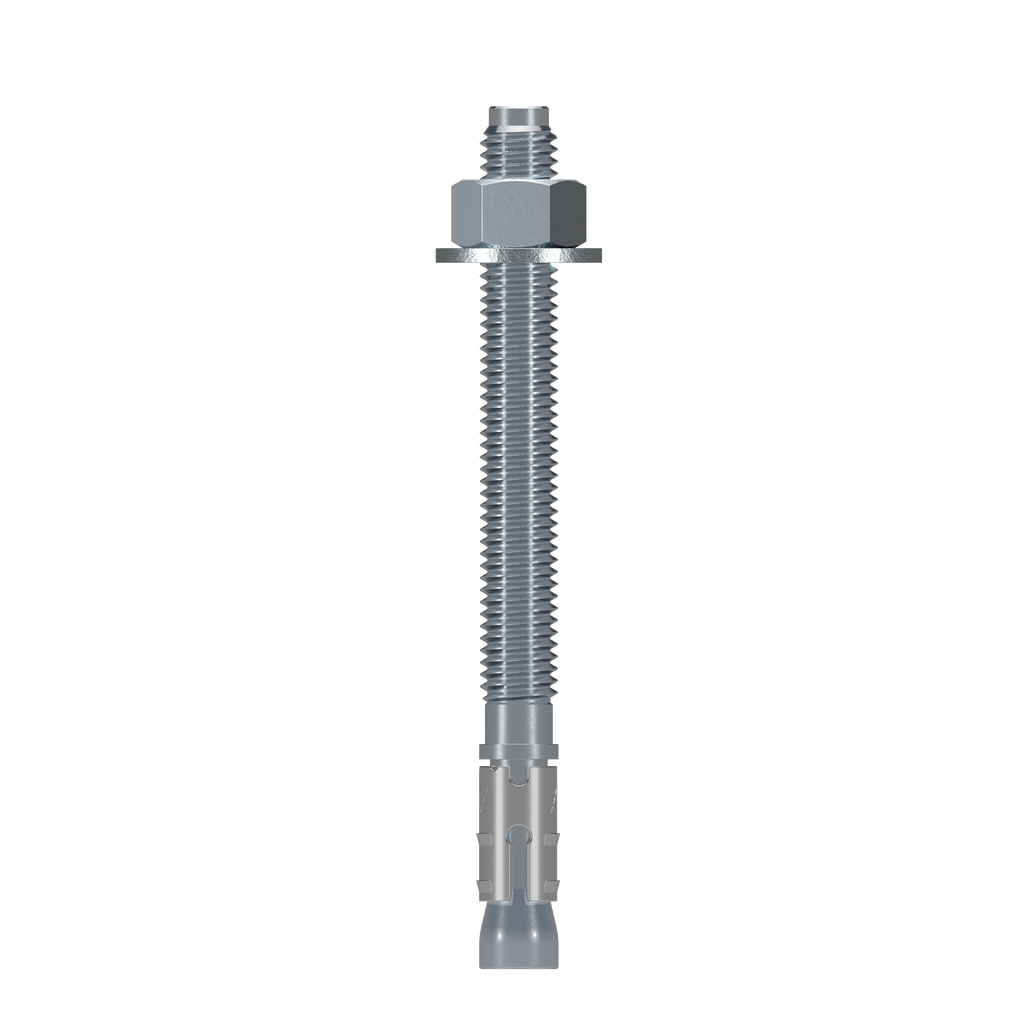

The Simpson Strong-Tie Strong-Bolt® 2 is engineered for versatility and reliability, making it suitable for a wide array of applications, including horizontal, vertical, and overhead installations. This wedge anchor, made from durable zinc-plated carbon steel, has been rigorously tested in accordance with standards set by ACI355.2 and AC193, ensuring its qualification for both static and seismic loading conditions across seismic design categories A through F. An innovative chamfered top design helps prevent mushrooming during installation, enhancing its overall performance. While effective, it’s important to be aware that the product may expose users to wood dust, which is recognized in California as a potential cancer risk.
Description
Code listed for cracked and uncracked concrete, and masonry applications, the Simpson Strong-Tie® Strong-Bolt® 2 wedge-type expansion anchor is an optimal choice for high performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands. The Strong-Bolt 2 is available in zinc-plated carbon steel, mechanically galvanized carbon steel, and Type 304 and Type 316 stainless steel.
Additional information
| Weight | 0.316 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 1.062 in |
| Size | 1/2 in. x 5-1/2 in. |
