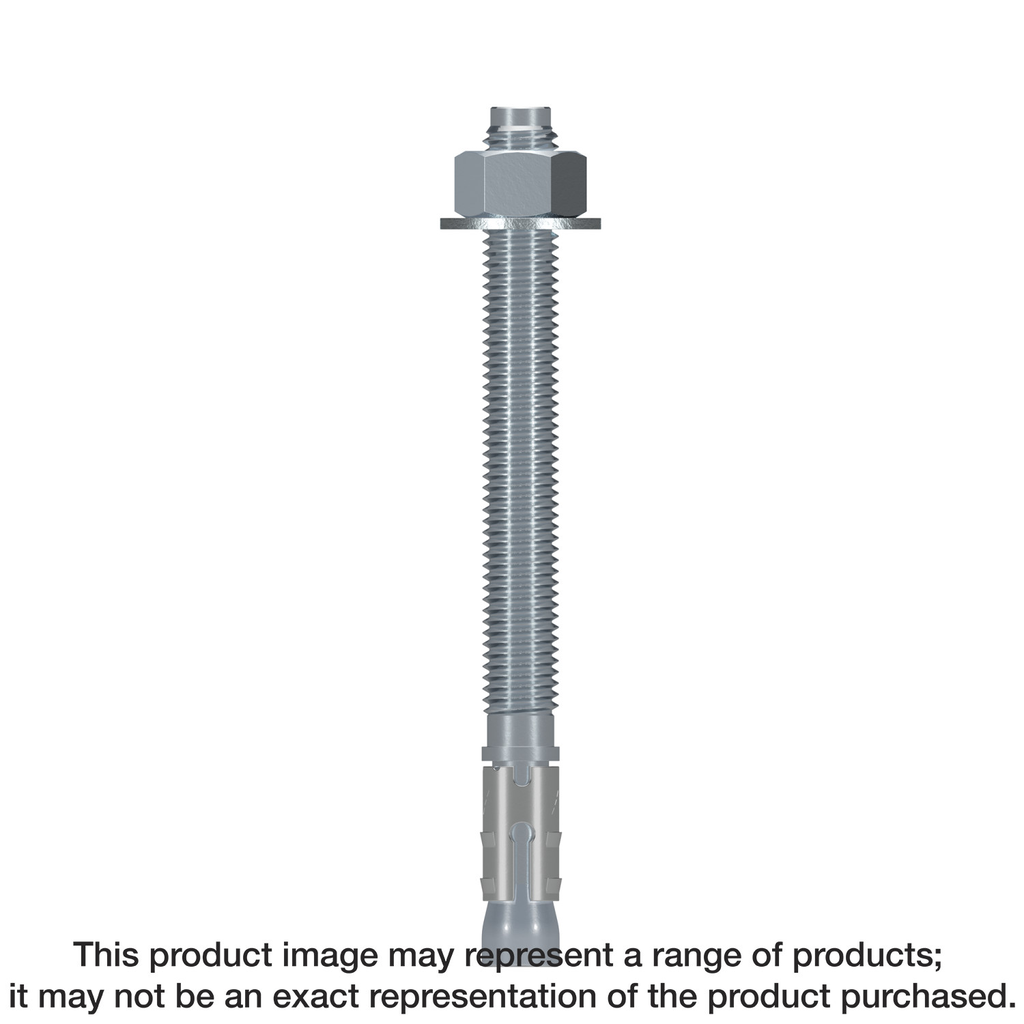

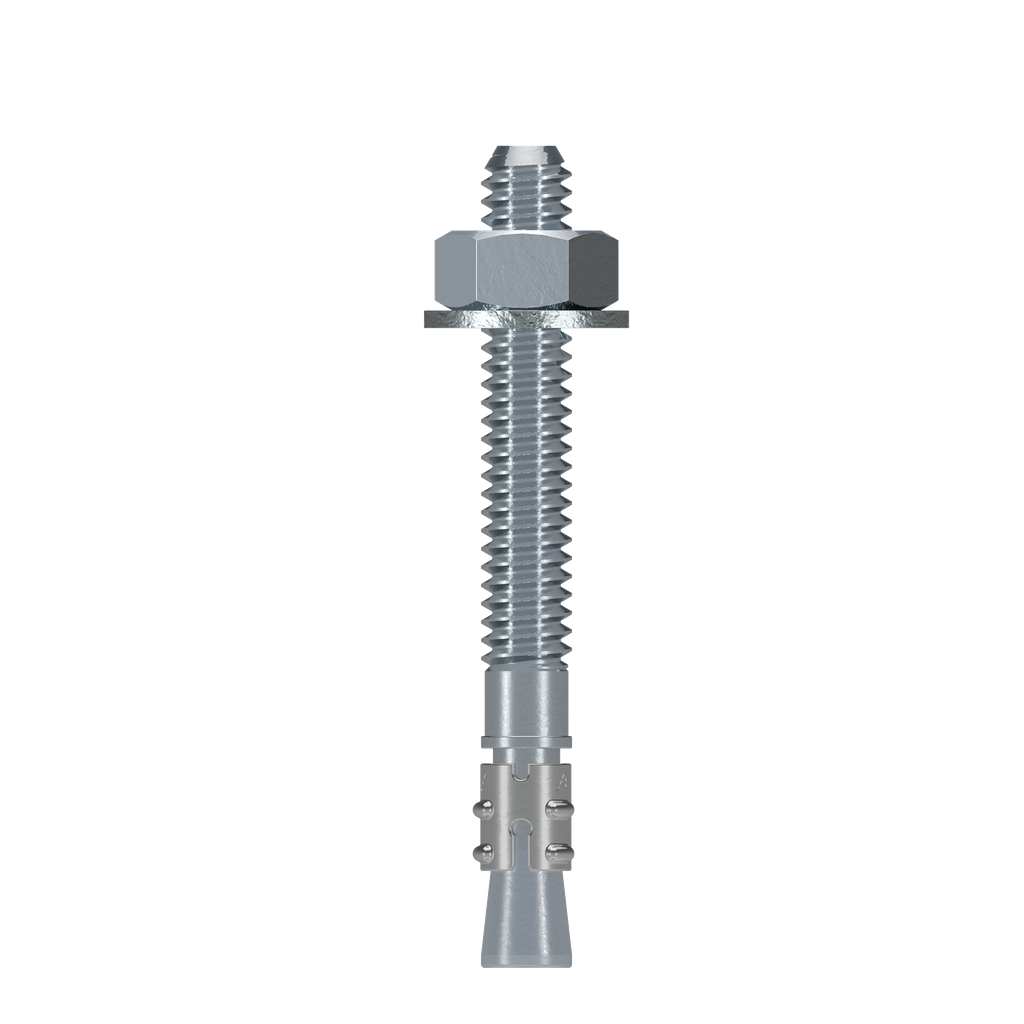

1/4 X 2-1/4 INCH STRONG-BOLT2 1 POLY
$0.50
The Simpson Strong-Tie Strong-Bolt® is a high-performance wedge anchor made from zinc-plated carbon steel, ensuring both durability and resistance to corrosion. Engineered with a chamfered top, this product effectively prevents mushrooming during installation, making it user-friendly for various applications. It has been rigorously tested according to ACI355.2 and AC193 standards and is qualified for both static and seismic loading conditions, accommodating design categories A through F. Versatile in its use, this anchor is suitable for horizontal, vertical, and overhead installations, providing a reliable fastening solution in diverse construction scenarios, while cautioning users about potential exposure to certain chemicals during the process.
Description
Code listed for uncracked concrete and masonry applications, the Simpson Strong-Tie® Strong-Bolt® 2 wedge-type expansion anchor is an optimal choice for high performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands. The Strong-Bolt 2 is available in zinc-plated carbon steel, mechanically galvanized carbon steel, and Type 304 and Type 316 stainless steel.
Additional information
| Weight | 0.045 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Size | 1/4 in. x 2-1/4 in. |
| Depth | 0.625 in |
