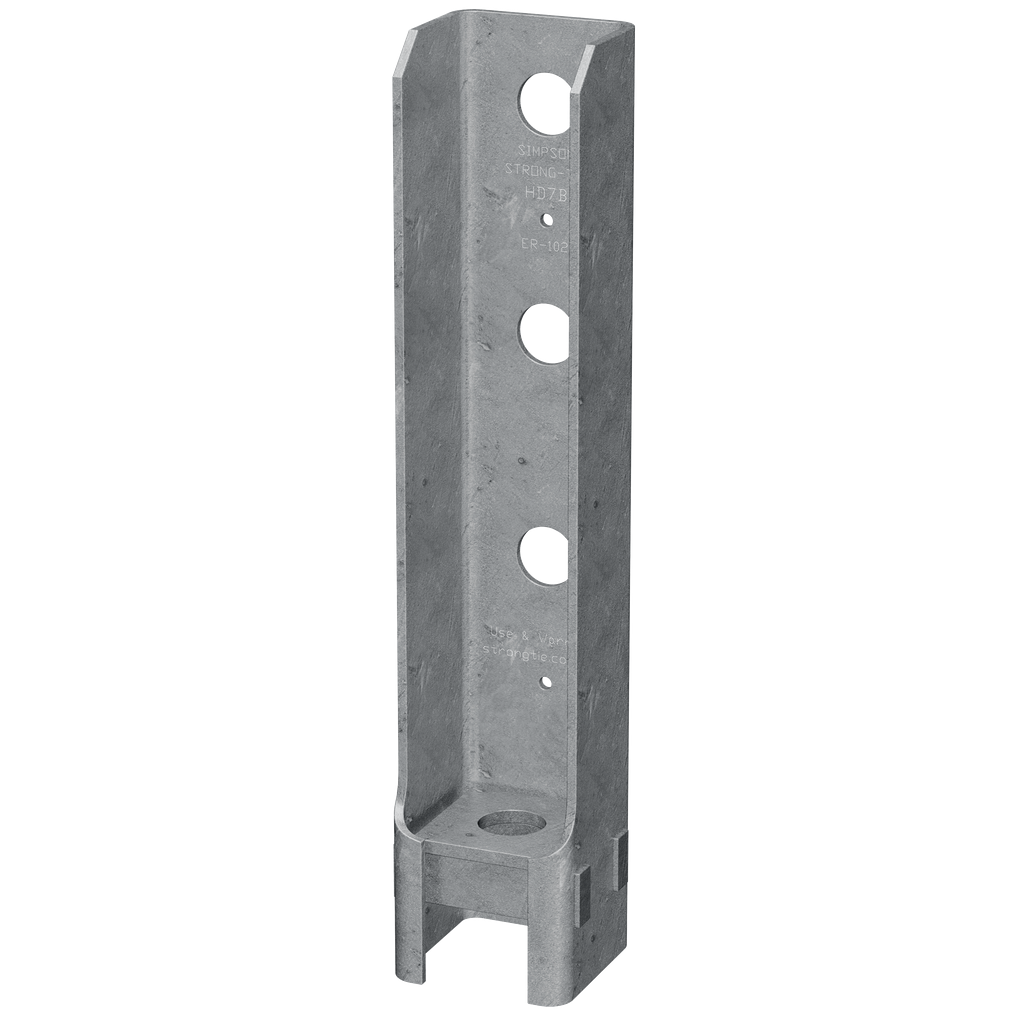

12-3/8IN BOLTED HOLDOWN
$46.48
Crafted with precision, the bolted holdown from Simpson Strong-Tie is engineered to offer exceptional strength and stability for your construction projects. Featuring a unique seat design that minimizes deflection under load, this holdown ensures structural integrity while providing corrosion resistance through its galvanized (G90) finish. Built from robust materials, including a 3/16-inch steel base and a 10-gauge steel body, it can be conveniently installed directly on the sill plate or raised above it. The self-jigging design guarantees that the installation meets code requirements, positioning the holdown at the mandated distance from the end of the post when flush with the sill plate. This product is designed to be installed after concrete placement and framing, making it a versatile choice for reliable long-term performance.
Description

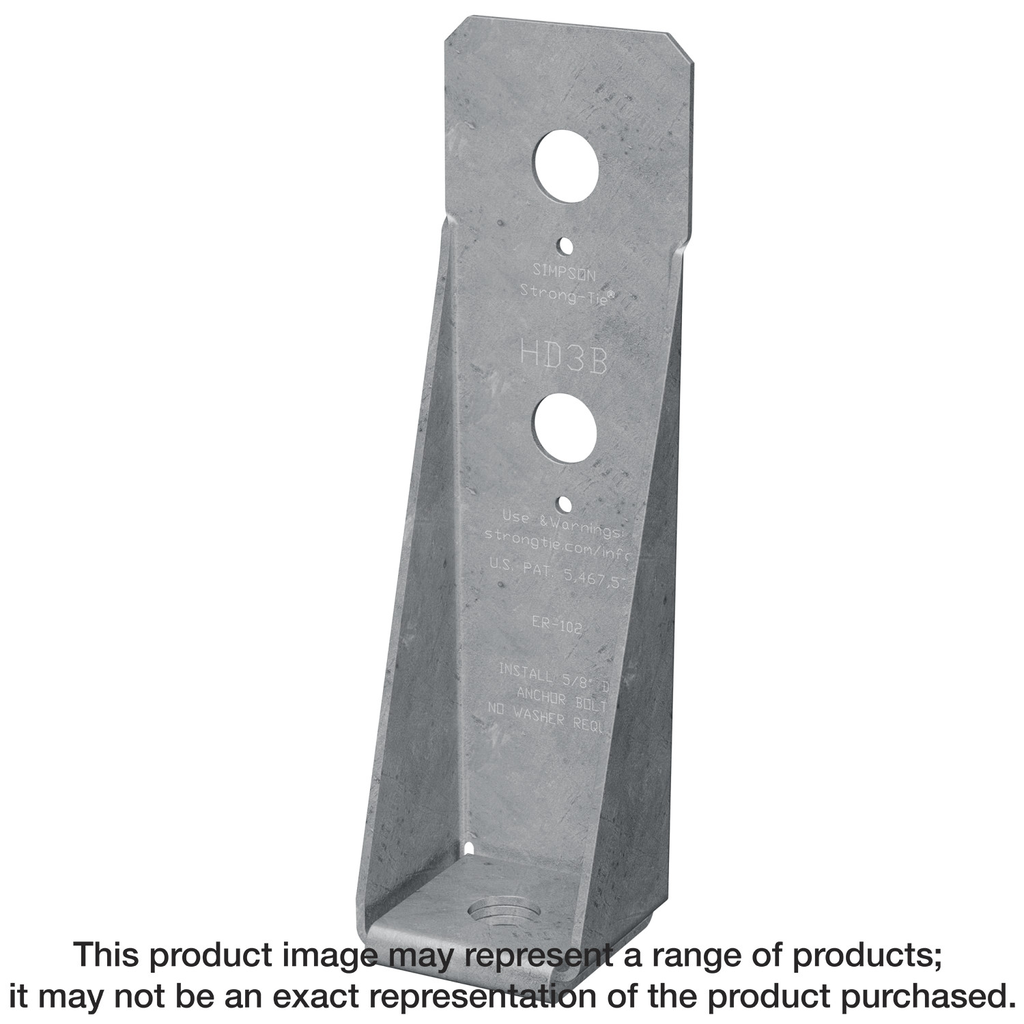

The Simpson Strong-Tie® HDB is designed to provide loads for intermediate-load-range shearwalls, braced-wall panels and lateral applications in wood construction. This bolted holdown is installed with bolts into studs or columns and offers low-deflection performance for a range of load requirements. The HDB is suitable for back-to-back applications where eccentricity is a concern.
Additional information
| Weight | 3.4 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Height | 12-3/8 in. |
| Width | 2-1/2 in. |
