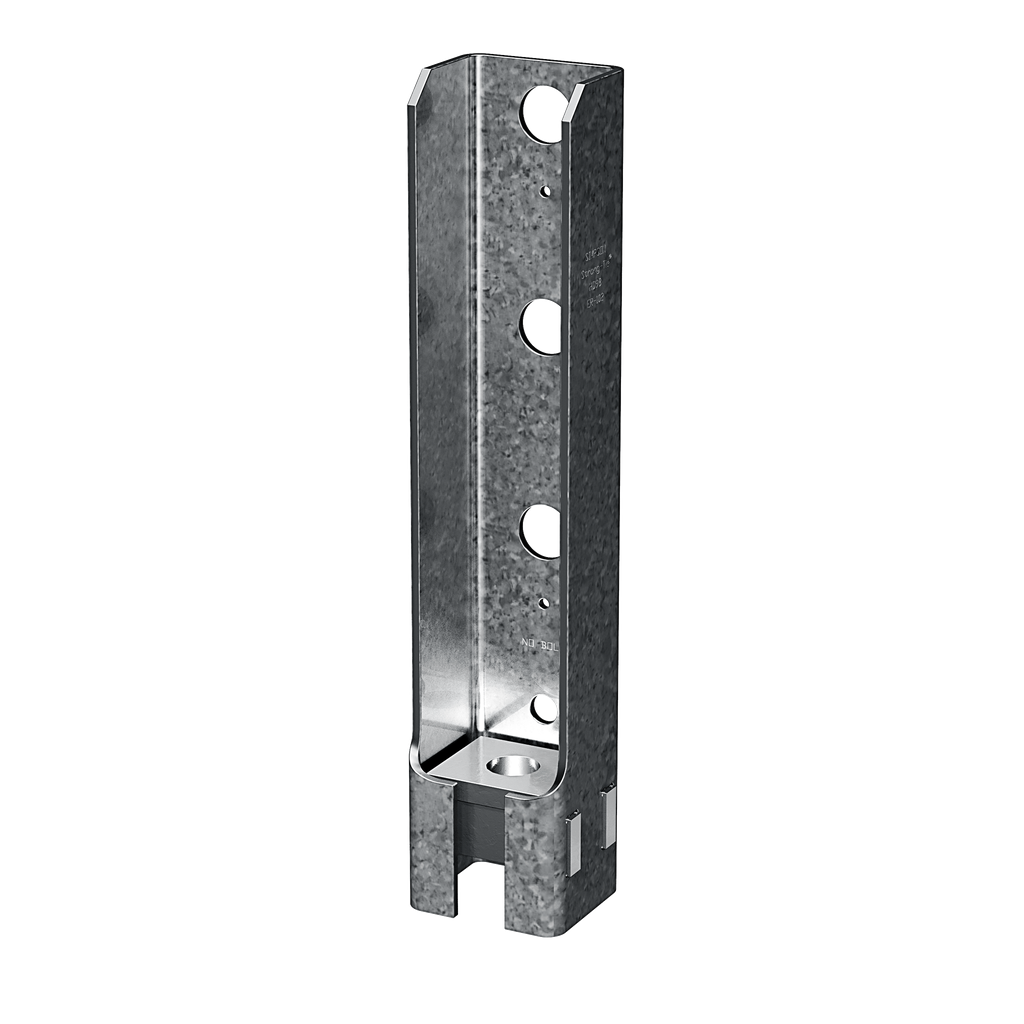

14IN BOLTED HOLDOWN
$67.13
Constructed for superior strength and stability, the bolted holdown from Simpson Strong-Tie is an essential component for ensuring structural integrity in construction projects. Its galvanized (G90) finish provides exceptional corrosion resistance, making it ideal for various environmental conditions. The holdown boasts a robust base crafted from 3/8-inch steel and a 7-gauge steel body, offering unparalleled durability. Designed for ease of installation, it features a self-jigging mechanism that adheres to building codes by maintaining the required minimum of seven bolt diameters from the end of the post, whether placed flush on the sill plate or elevated. Additionally, its unique seat design significantly reduces deflection under load, ensuring that your structures remain secure and stable.
Description
The Simpson Strong-Tie® HDB is designed to provide loads for intermediate-load-range shearwalls, braced-wall panels and lateral applications in wood construction. This bolted holdown is installed with bolts into studs or columns and offers low-deflection performance for a range of load requirements. The HDB is suitable for back-to-back applications where eccentricity is a concern.
Additional information
| Weight | 5.83 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Height | 14 in |
| Width | 2-7/8 in |
