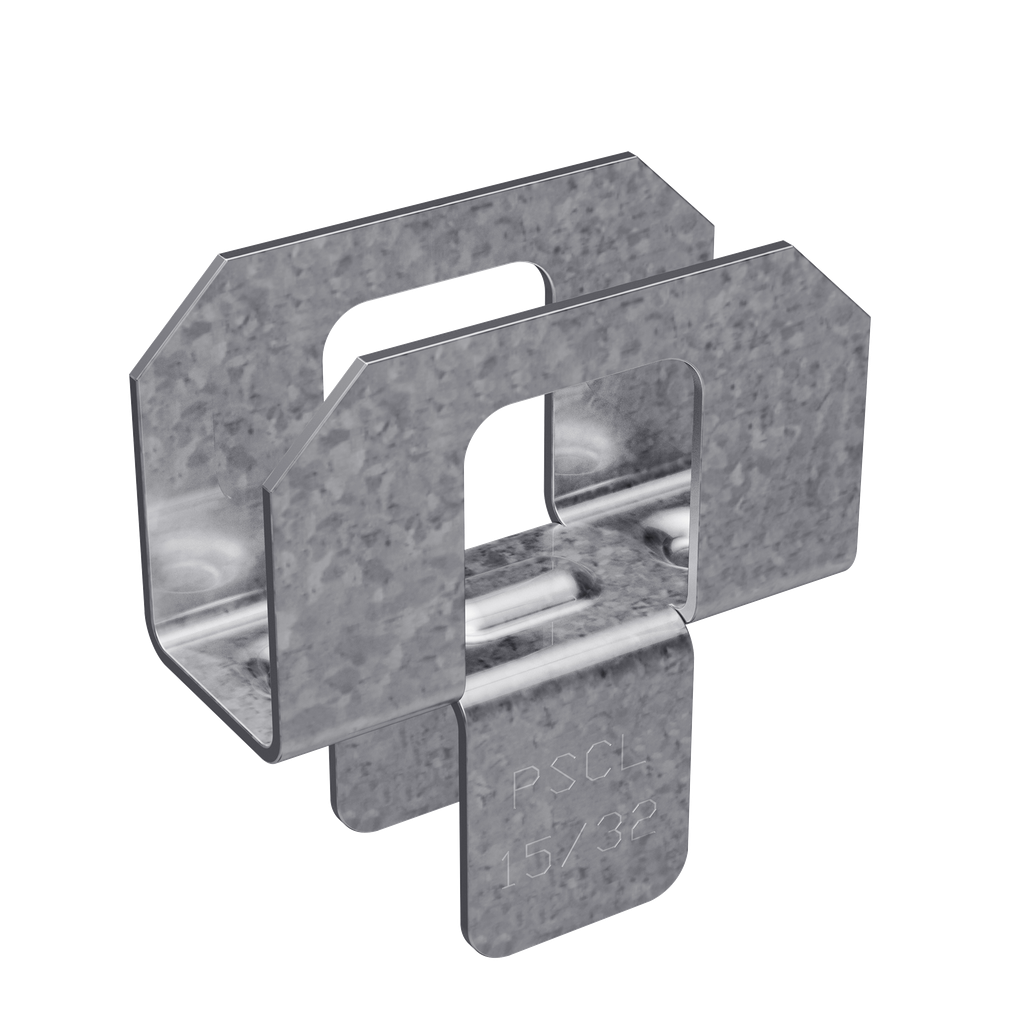

15/32IN PLYWOOD SHEATHING CLIP
$11.11
Engineered for efficiency and reliability, these panel sheathing clips are specifically designed to accommodate 15/32-inch thickness plywood, maintaining a precise 1/8-inch spacing between panels as recommended by the American Plywood Association. Constructed from durable 20-gauge steel, they offer a sturdy solution for securing plywood sheathing while ensuring that panels remain even for a consistent structural plane. Their quick-installation feature, requiring no nails, not only enhances the installation process but also promotes a robust framework. These clips are further galvanized for corrosion resistance, making them an ideal choice for both new constructions and repairs.
Description
The PSCL is designed to brace unsupported sheathing edges when sheathing meets edge to edge without a rafter for support. This light sheathing clip provides a 1/8-in. gap to address shrinkage and expansion of roof sheathing. Inserted over the edges of adjacent plywood panels, the PSCL reduces deflection and keeps panels even to maintain a level plane on the structure.
Additional information
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 1.25 in |
| Panel Thickness | 15/32 in |
