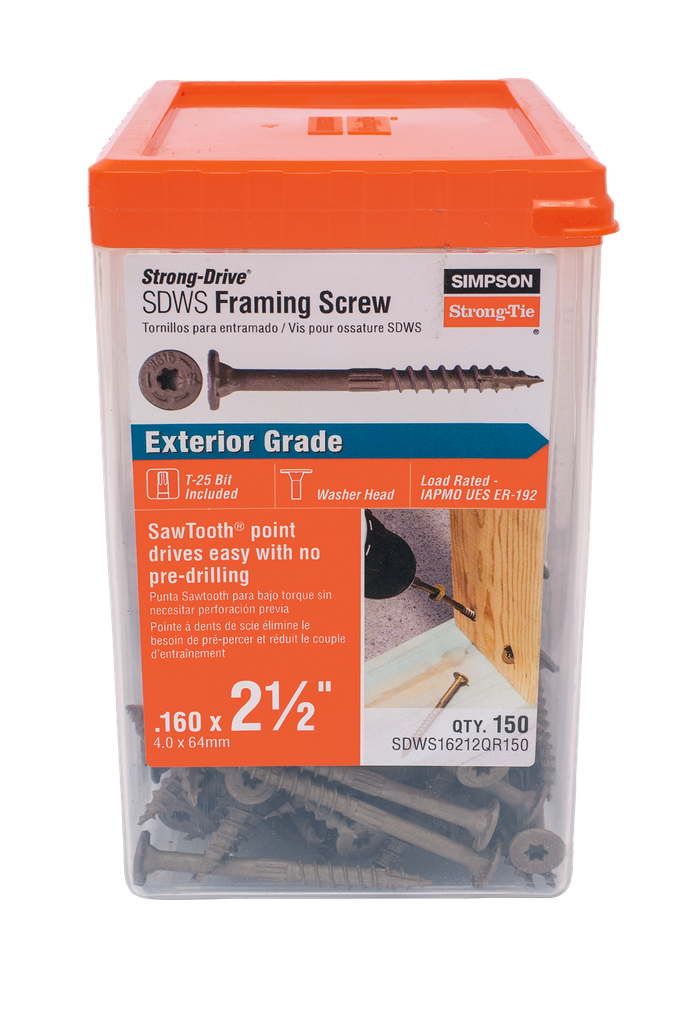

.160 X 2-1/2 SDWS FRAMING TAN T25 150CT

$37.21

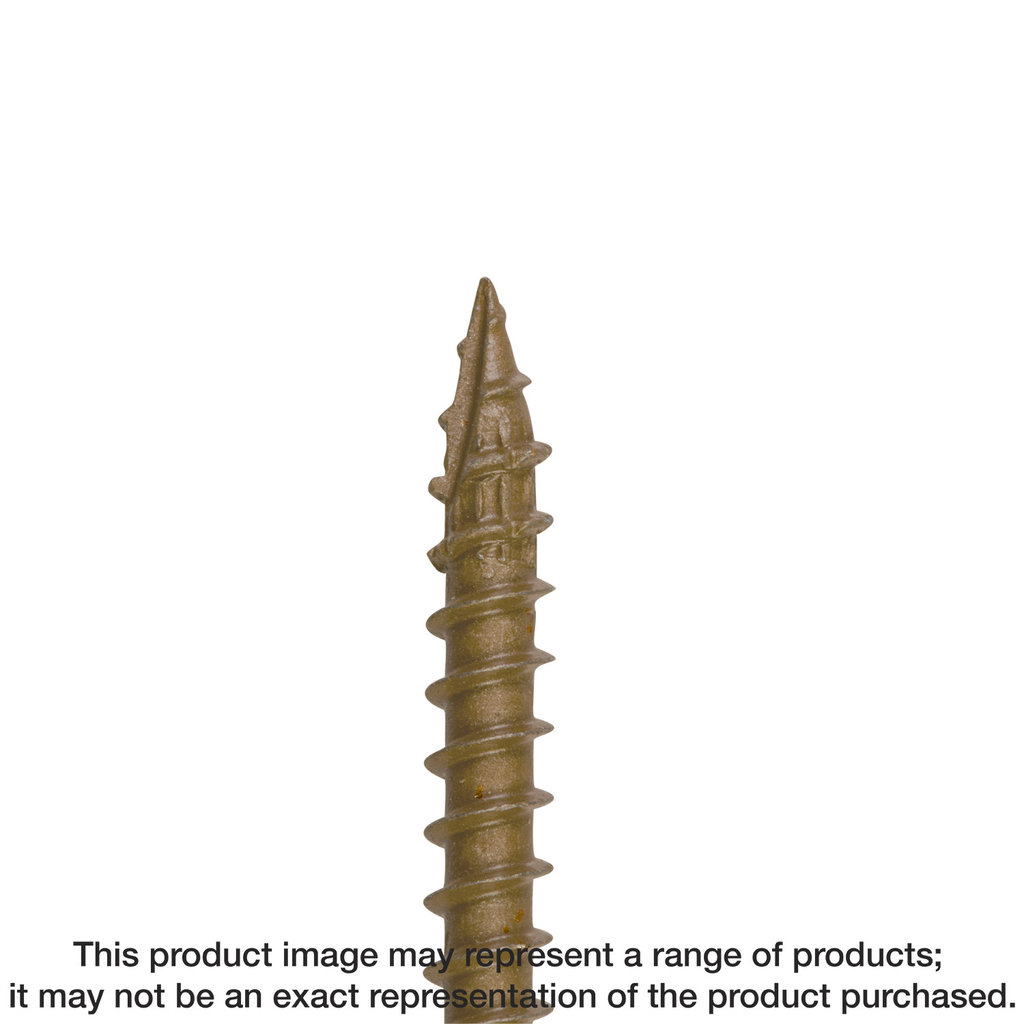

Engineered for versatility and performance, the Simpson Strong-Tie SDWS FRAMING Screw features a robust Quik Guard coating, ensuring reliable protection for both indoor and outdoor applications. With its innovative SawTooth Type-17 tip, this screw allows for quick starts without the need for predrilling, enhancing installation efficiency. The six-lobe drive design minimizes cam-outs, facilitating smoother driving while prolonging the life of the driver bit included in the pack. Additionally, the large head with underhead box-nibs ensures clean countersinking and better bearing in structural applications, making these screws a dependable choice for any framing project. This package contains 150 screws, conveniently organized in three sets for easy use.

SKU: SDWS16212QR150 Category: Tags: , , , Barcode: 10707392010361.

Description

The SDWS Framing screw is designed and load-rated for replacing 16d, 10d and 8d nails in framing applications. The SDWS Framing screw is 0.160 in. in diameter and superior to nails in holding power and pull-out resistance. It is code listed under IAPMO UES ER-192 and meets 2018 and 2021 IRC® and IBC® code requirements for several common wood framing applications.

Additional information

Weight 2.4 lbs
Dimensions 5 × 5 × 5 in
Length

2-1/2 in

Head Diameter

0.450 in
