.160 X 2-1/2IN SDWS QUIKGRD FRAMING 75CT
$30.52

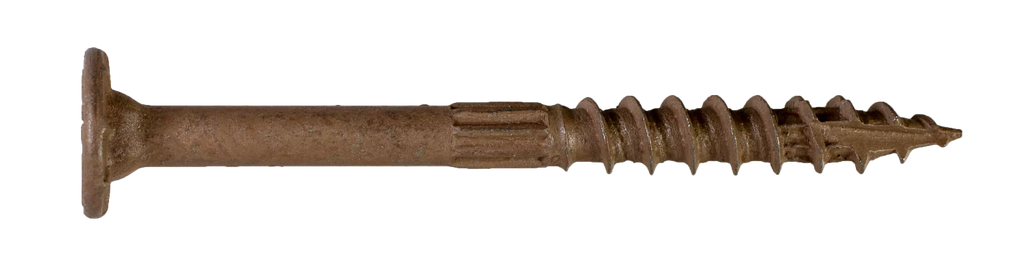

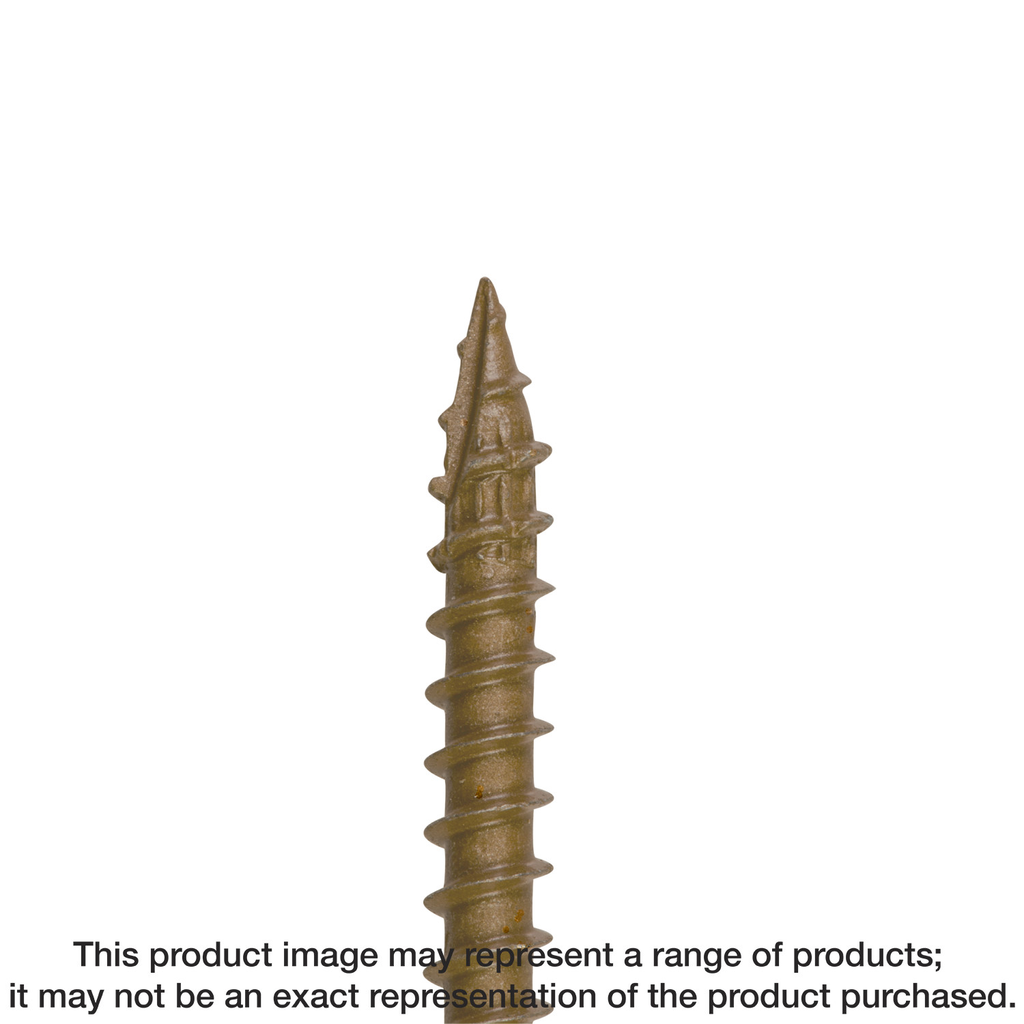

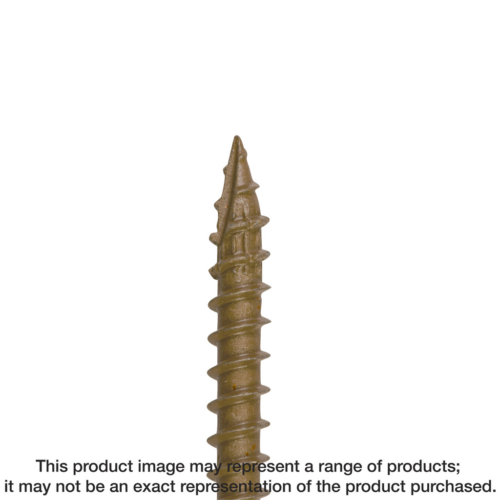

Engineered for strength and efficiency, the Strong-Drive® SDWS™ framing screw from Simpson Strong-Tie is a superb choice for both indoor and outdoor applications. Measuring 2-1/2 inches in length with a 0.450-inch diameter head featuring underhead box-nibs, it ensures superior bearing and simplifies the countersinking process. The innovative SawTooth® Type-17 tip allows for quick starts without the need for predrilling, while the serrated threads work to minimize installation torque. Additionally, the included 6-lobe drive enhances performance by reducing cam-outs during installation, resulting in easier driving and extended bit life. With a robust Quik Guard® coating, these screws offer reliable corrosion resistance, making them suitable for a variety of structural tasks.
Description
The SDWS Framing screw is designed and load-rated for replacing 16d, 10d and 8d nails in framing applications. The SDWS Framing screw is 0.160 in. in diameter and superior to nails in holding power and pull-out resistance. It is code listed under IAPMO UES ER-192 and meets 2018 and 2021 IRC® and IBC® code requirements for several common wood framing applications.
Additional information
| Weight | 1.2 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Length | 2-1/2 in |
| Head Diameter | 0.450 in |
