.160 X 3IN SDWS QUIKGUARD FRAMING 1000CT
$281.72

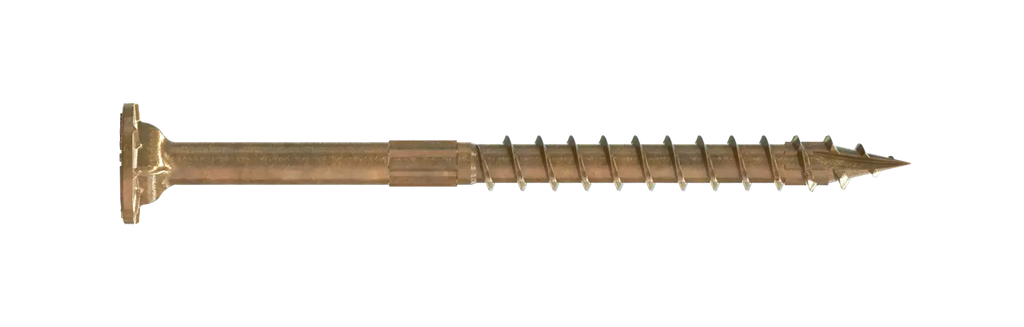

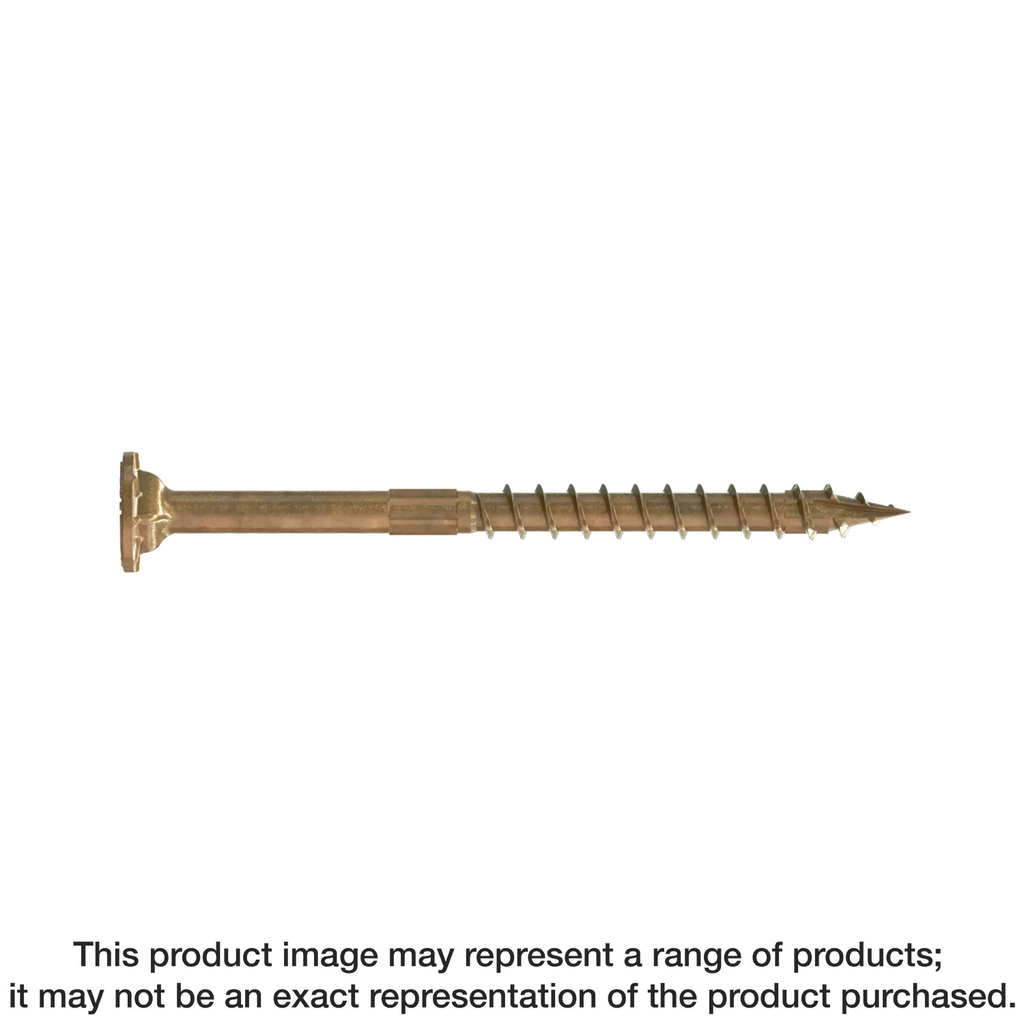

Engineered for robust performance in both indoor and outdoor applications, the Simpson Strong-Drive® SDWS™ framing screw features a SawTooth® Type-17 tip that allows for quick starts without the need for predrilling, facilitating smoother installation. Its unique serrated threads significantly reduce installation torque, making it easier to drive into various materials while optimizing the lifespan of your driver bits thanks to a well-designed 6-lobe drive that minimizes cam-outs. Additionally, the Quik Guard® coating enhances durability and protection, ensuring reliable performance in structural applications. A large head with underhead box-nibs not only provides improved bearing capacity but also ensures clean and efficient countersinking, making these screws an ideal choice for framing projects.
Description
The SDWS Framing screw is designed and load-rated for replacing 16d, 10d and 8d nails in framing applications. The SDWS Framing screw is 0.160 in. in diameter and superior to nails in holding power and pull-out resistance. It is code listed under IAPMO UES ER-192 and meets 2018 and 2021 IRC® and IBC® code requirements for several common wood framing applications.
Additional information
| Weight | 17.8 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Length | 3 in |
| Depth | 0.450 in |
