.160 X 3IN SDWS QUIKGUARD FRAMING 75CT
$28.82

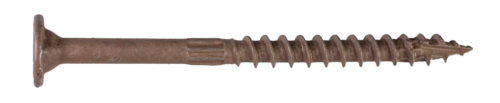

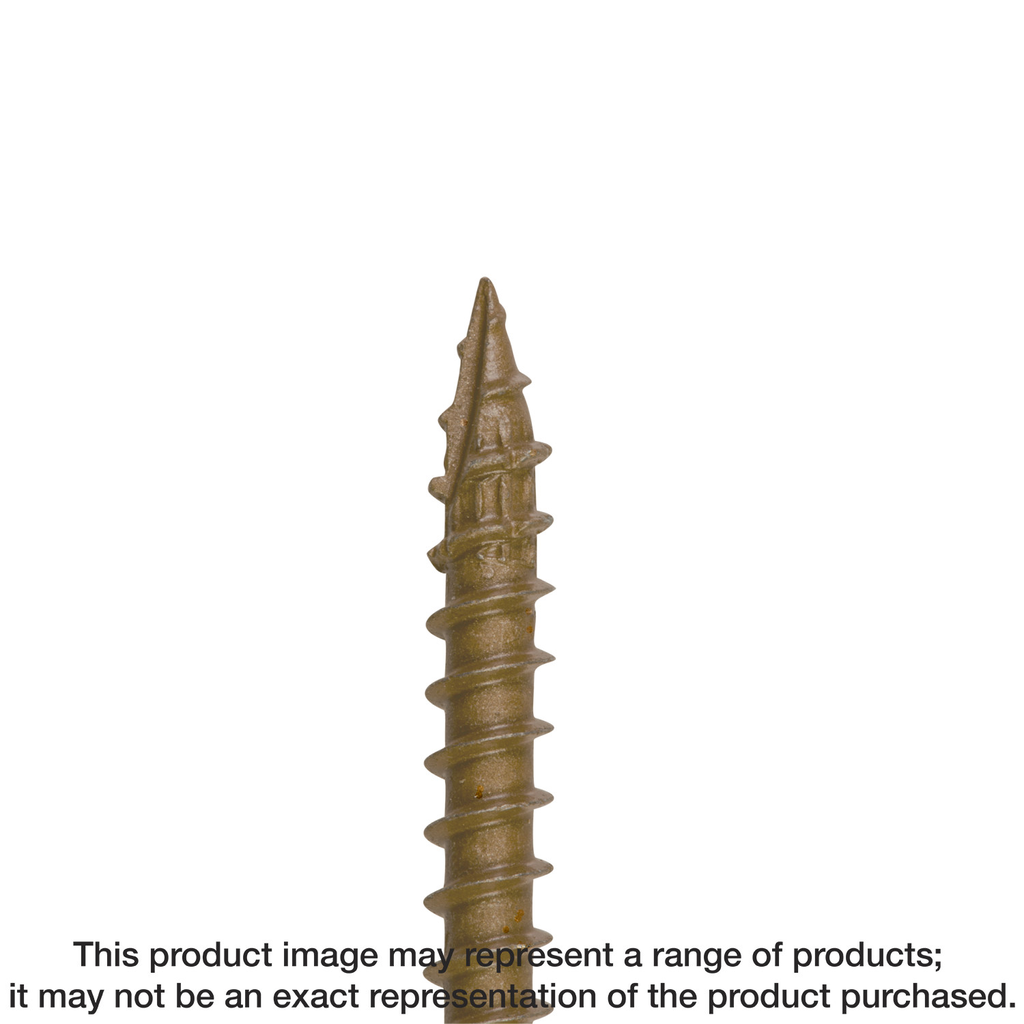

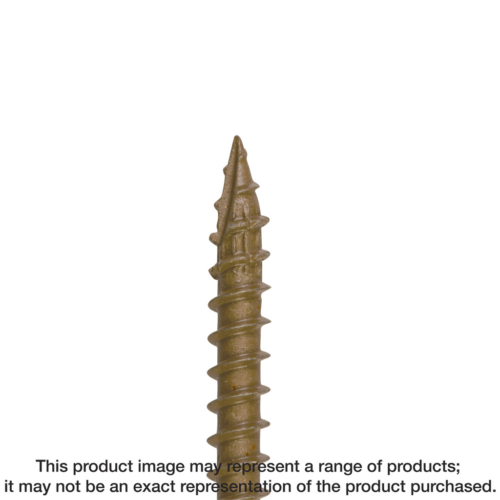

The Strong-Drive® SDWS™ framing screw from Simpson Strong-Tie offers exceptional performance for both indoor and outdoor applications, thanks to its innovative Quik Guard® coating that ensures reliable protection against corrosion. Measuring 3 inches in length with a 0.450-inch diameter head, this screw features serrated threads that significantly reduce installation torque, making it easier to drive into materials. The built-in SawTooth® Type-17 tip provides quick starts without the need for predrilling, while the six-lobe drive minimizes the risk of cam-out, enhancing both ease of installation and prolonging the life of your driver bit. With its large head and underhead box-nibs, it offers increased bearing capacity suitable for structural applications, making these screws a valuable addition to any construction or DIY project.
Description
The SDWS Framing screw is designed and load-rated for replacing 16d, 10d and 8d nails in framing applications. The SDWS Framing screw is 0.160 in. in diameter and superior to nails in holding power and pull-out resistance. It is code listed under IAPMO UES ER-192 and meets 2018 and 2021 IRC® and IBC® code requirements for several common wood framing applications.
Additional information
| Weight | 1.32 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Length | 3 in |
| Head Diameter | 0.450 in |
