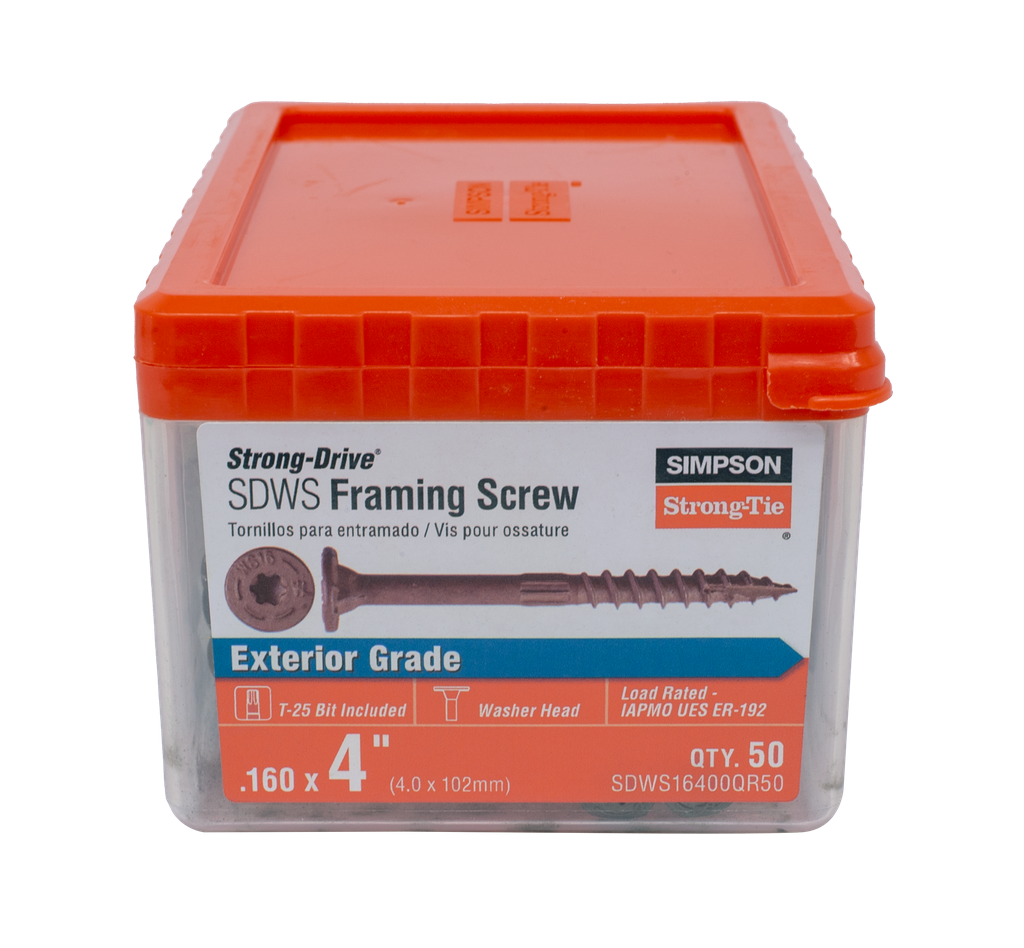

.160 X 4 SDWS FRAMING TAN T25 50CT

$22.12

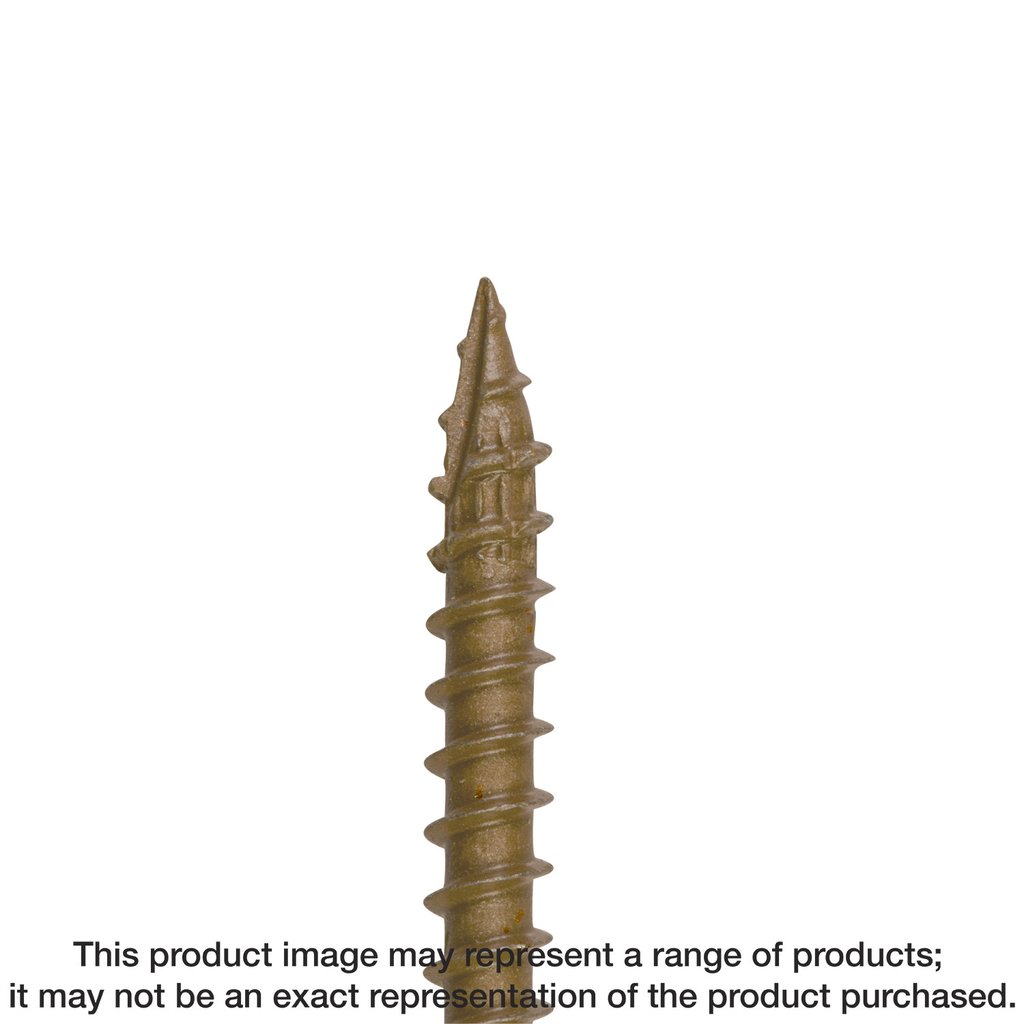

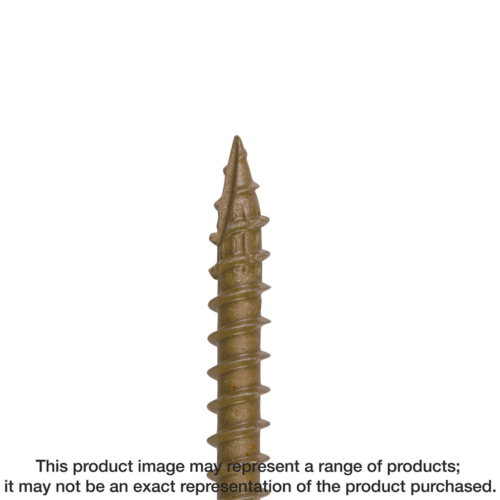

Engineered for superior performance in structural applications, the Simpson Strong-Drive SDWS FRAMING Screw features a large head with underhead box-nibs that ensure increased bearing capacity, allowing for effective and clean countersinking. The innovative SawTooth Type-17 tip enables fast starts without the need for predrilling, while the serrated threads are designed to reduce installation torque, making driving easier and more efficient. This screw is coated with Quik Guard, providing reliable protection for both indoor and outdoor use. Additionally, the 6-lobe drive minimizes cam-outs, extending the life of driver bits significantly. For added convenience, a driver bit is included in the package, ensuring you have everything you need for a successful installation.

SKU: SDWS16400QR50 Category: Tags: , , , Barcode: 707392010401.

Description

The SDWS Framing screw is designed and load-rated for replacing 16d, 10d and 8d nails in framing applications. The SDWS Framing screw is 0.160 in. in diameter and superior to nails in holding power and pull-out resistance. It is code listed under IAPMO UES ER-192 and meets 2018 and 2021 IRC® and IBC® code requirements for several common wood framing applications.

Additional information

Weight 1.2 lbs
Dimensions 5 × 5 × 5 in
Depth

0.450 in

Length

4 in
