161N W/4IN EMBED TRUSS ANCHOR
$1.72

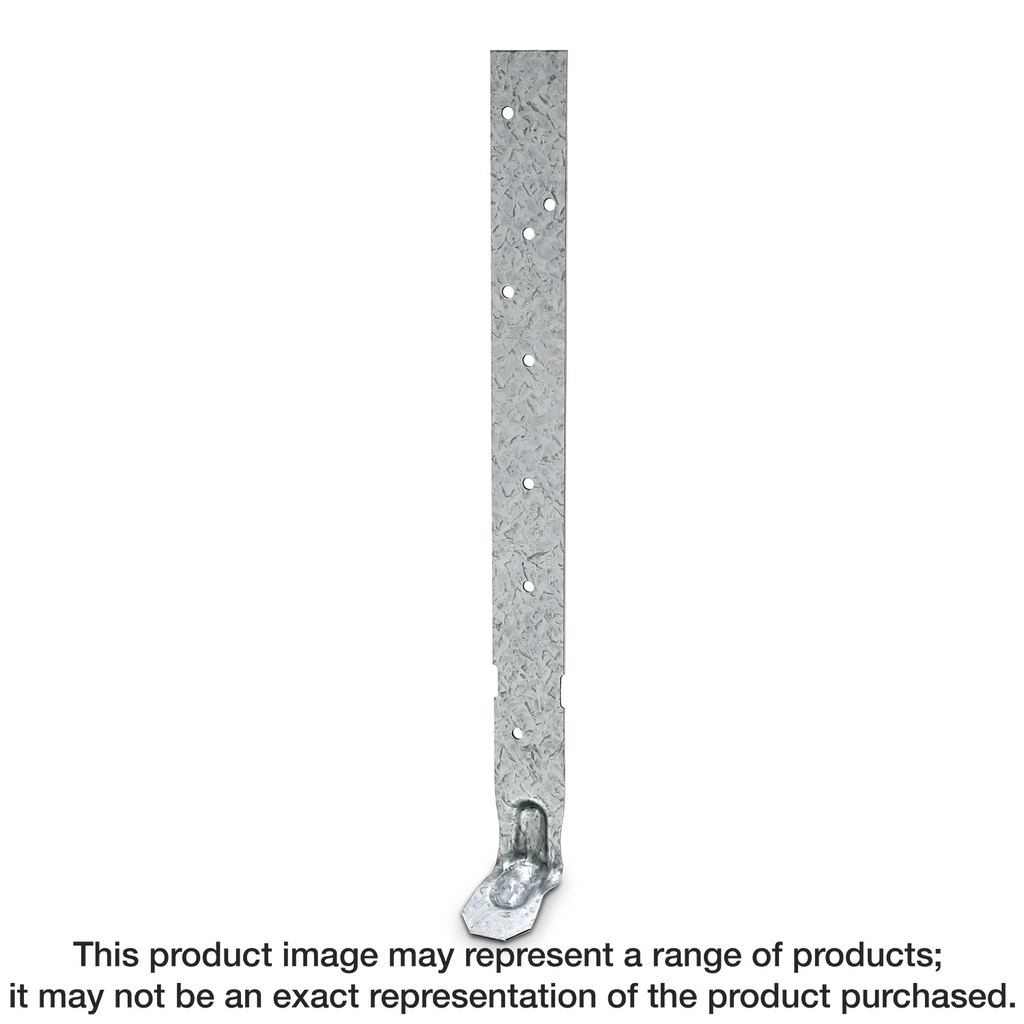

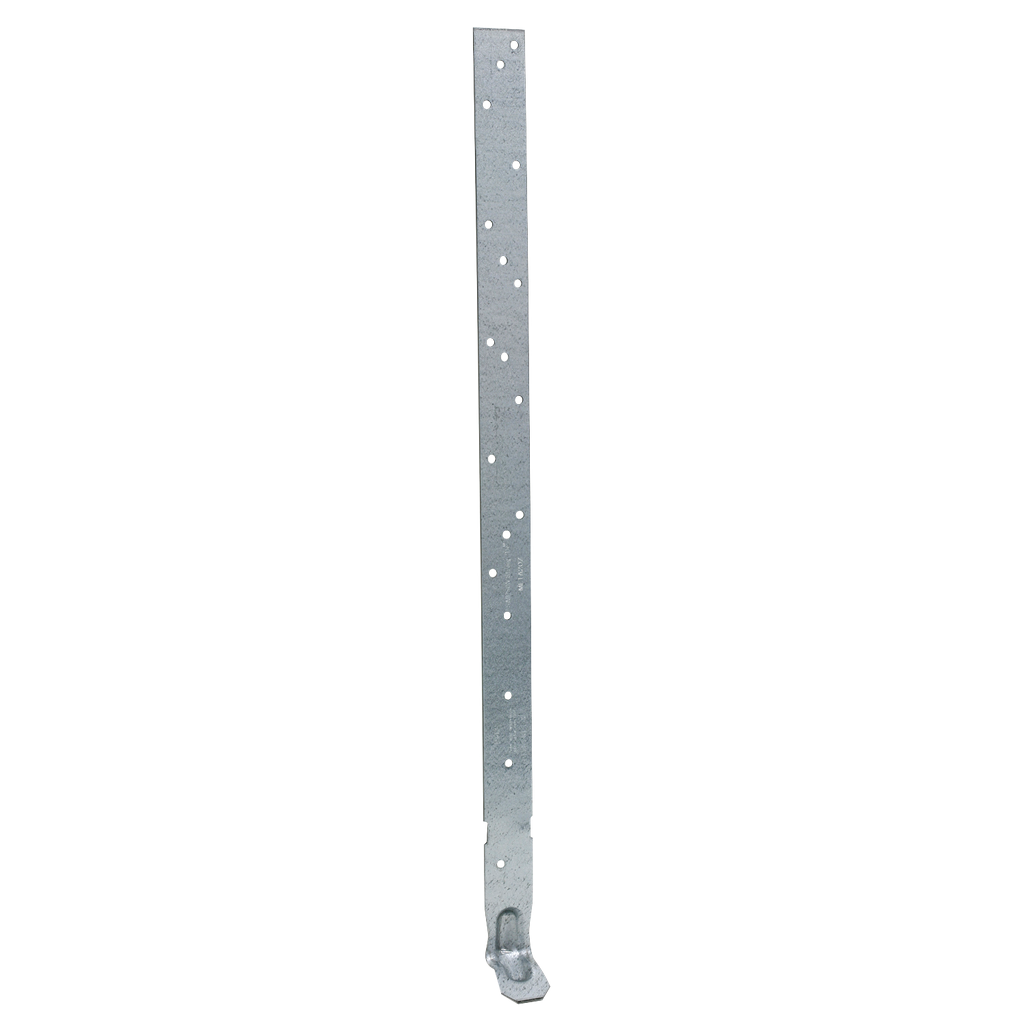

The Simpson Strong-Tie META20 is a robust galvanized embedded truss anchor designed to provide reliable support and stability for truss systems. Crafted from durable 18-gauge steel and featuring a G90 galvanized finish, this anchor offers enhanced corrosion resistance, making it ideal for both interior and exterior applications. An indented embedment line ensures accurate depth during installation, while its 16-inch exposed length facilitates proper alignment and secure attachment. Designed for embedding at least 4 inches into a minimum 6-inch concrete beam or an 8-inch nominal grouted block wall, the META20 is engineered to withstand significant wind and seismic forces, ensuring long-lasting performance in various structural conditions. Additionally, it is compatible with the Simpson Strong-Tie TSS truss seat snap-in and TBP8 moisture barrier plate, providing flexibility for diverse construction needs.
Description
Simpson Strong-Tie® connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. The META provides an engineered method to attach roof trusses securely to concrete and masonry walls. This medium embedded truss anchor features staggered nail patterns to strengthen uplift resistance and can be used in pairs on single- and multi-ply trusses. The versatile META can be installed straight or field-bent around truss or rafter members.
Additional information
| Weight | 0.34 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Load Rating | Wind and Seismic |
| Length | 20 in |
