16IN FLOOR-TO-FLOOR TAKE UP SCREW KIT/25
$266.53

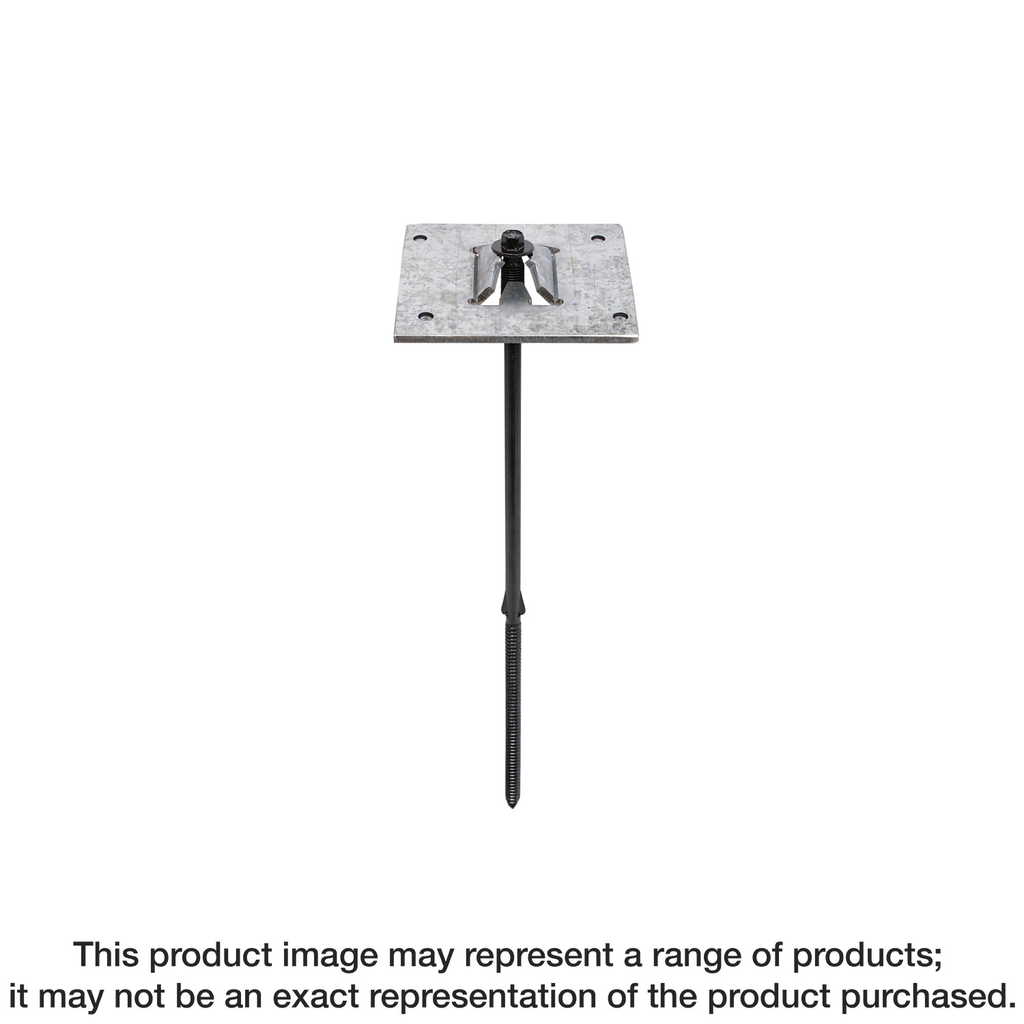

Engineered for efficiency and reliability in construction applications, the Strong-Drive® SDWF FLOOR-TO-FLOOR screw by Simpson Strong-Tie is designed to simplify the fastening process between floor systems. Featuring a robust 5/16-inch hex drive and a length of 16 inches, these screws are particularly effective for installations in dry, low-corrosion environments, thanks to their E-coat® electrocoating.
Description

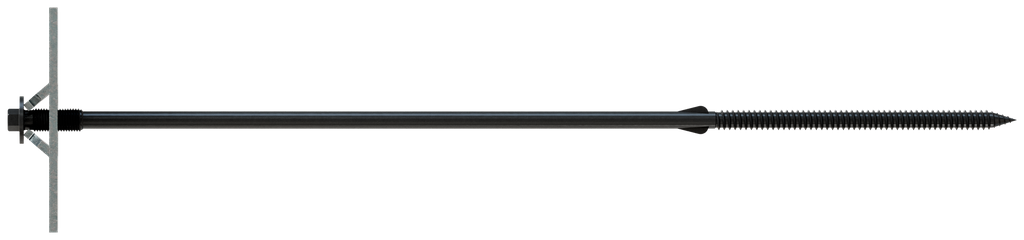

The Strong-Drive SDWF Floor-to-Floor screw is designed to simplify the wind-uplift restraint connection while providing superior performance over the life of the structure. The unique design of the SDWF enables it to attach upper and lower walls together from the top, spanning the floor system and providing an easy-to-install connection within the continuous uplift load path of the structure. The innovative Take-Up Washer (TUW) plays a key role in the long-term performance of the SDWF when installed between the screw head and the sole plate of the upper floor.
Additional information
| Weight | 19.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Manufacturer | Simpson Strong-Tie |
| Depth | 0.730 in |
| Length | 16 in |
