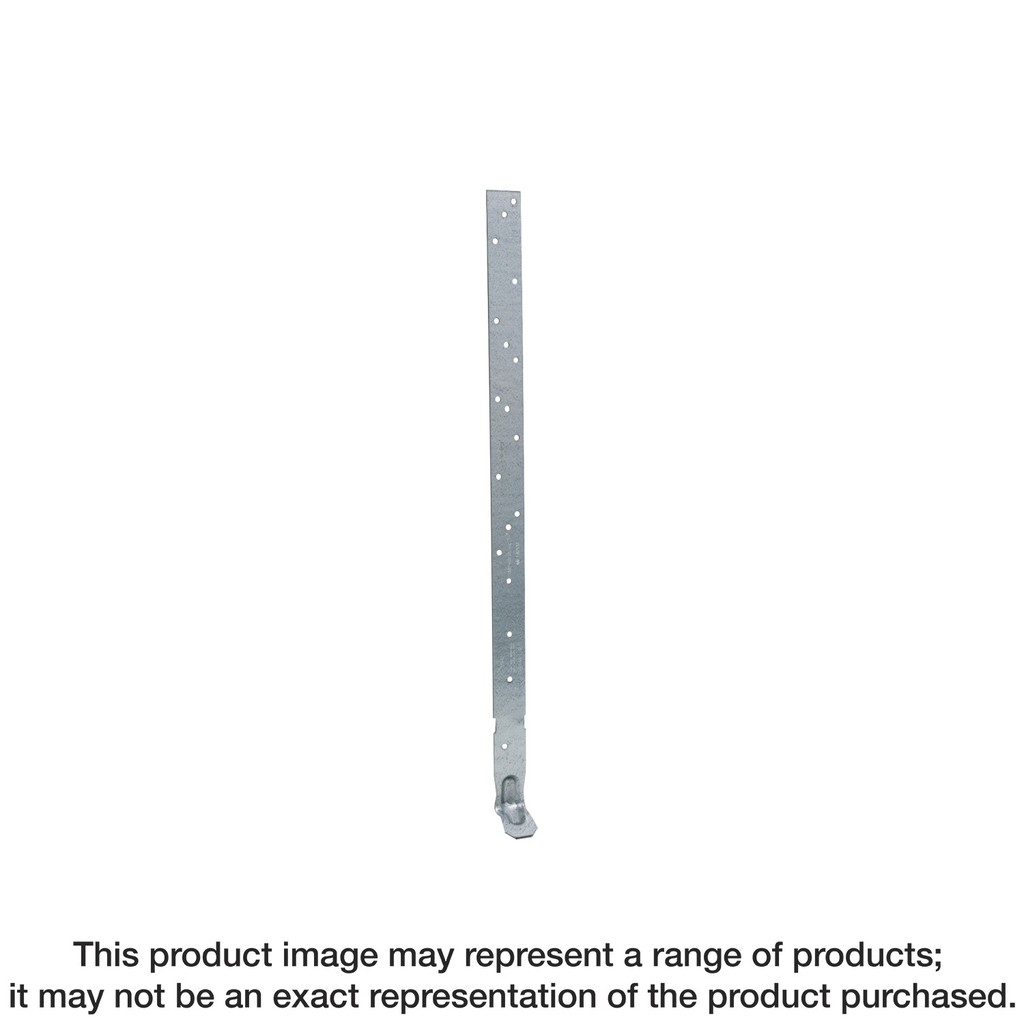

16IN W/4IN EMBED TRUSS ANCHOR W/SEAT
$3.04

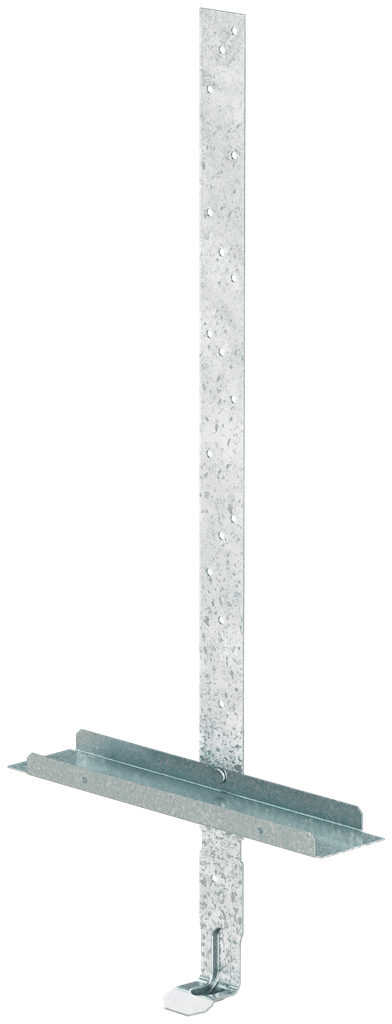

Engineered for reliability and strength, this galvanized embedded truss anchor features an indented embedment line to ensure precise depth during installation. Its design includes a 1-3/4 inch width TSS2 truss seat that snaps in securely, enhancing ease of use. Constructed from durable 18-gauge steel, with the TSS2 component made from 22-gauge steel, this anchor is load-rated to withstand heavy wind and seismic forces, making it ideal for robust construction applications. The galvanized finish provides extra resistance to corrosion, ensuring longevity and performance in various environments, while the moisture barrier can be preattached to the truss for added protection, facilitating a reliable construction process. With a 16-inch exposed length, this anchor is suitable for embedding into a minimum of a 6-inch concrete beam or an 8-inch nominal grouted block wall, making it a versatile choice for your building needs.
Description
Simpson Strong-Tie® connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. The META provides an engineered method to attach roof trusses securely to concrete and masonry walls. This medium embedded truss anchor features staggered nail patterns to strengthen uplift resistance and can be used in pairs on single- and multi-ply trusses. The versatile META can be installed straight or field-bent around truss or rafter members.
Additional information
| Weight | 0.55 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 8.5625 in |
| Length | 20 in |
