16IN W/4IN EMBED TRUSS ANCHOR ZMAX
$4.35

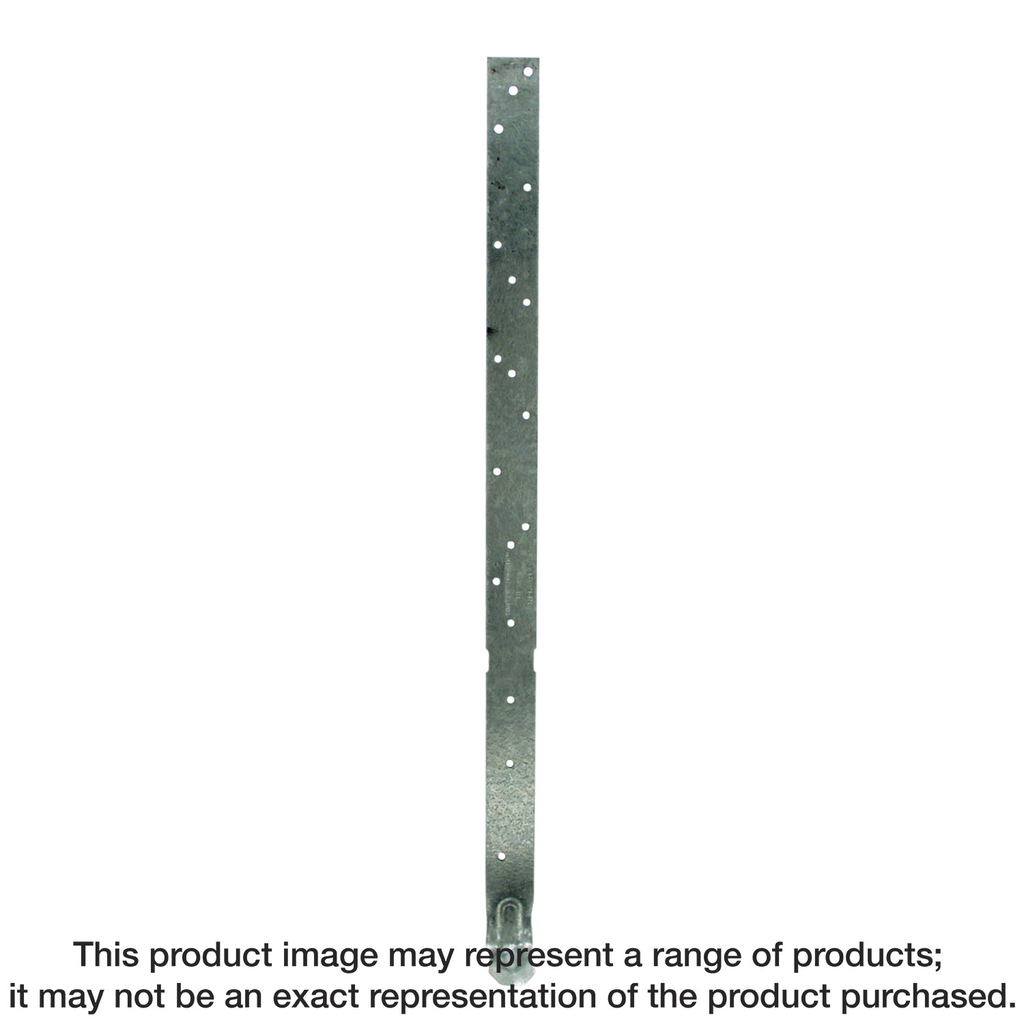

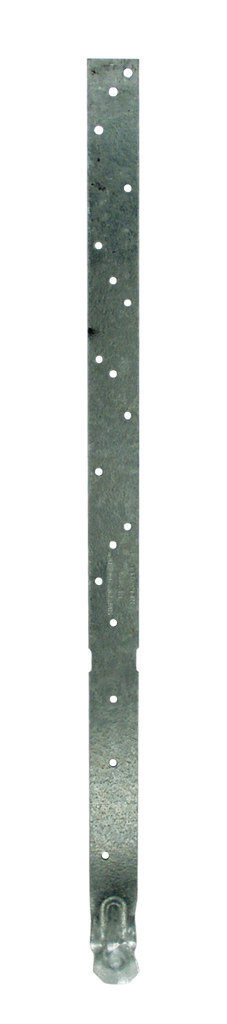

The Simpson Strong-Tie HETA 20 in. ZMAX® Galvanized Heavy Embedded Truss Anchor is expertly designed to provide robust support for a variety of construction applications, particularly where wind and seismic forces are a concern. Its ZMAX galvanization not only enhances corrosion resistance, making it suitable for exterior and treated-wood environments, but also ensures long-lasting durability. With a precise indented embedment line, this anchor guarantees consistent embedment depth, promoting installation accuracy. Engineered from 16-gauge steel, it features a 16-inch exposed length and can be embedded four inches into a poured concrete bond beam or grouted block wall, making it a reliable choice for securing trusses effectively. Additionally, it is compatible with the preassembled TSS snap-in seat from Simpson Strong-Tie, streamlining the installation process even further.
Description
The HETA provides an engineered method to attach roof trusses securely to concrete and masonry walls. This heavy embedded truss anchor features staggered nail patterns to strengthen uplift resistance and can be used in pairs on single- and multi-ply trusses. The versatile HETA can be installed straight or field-bent around truss or rafter members.
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Load Rating | Wind and seismic forces |
| Length | 20 in |
