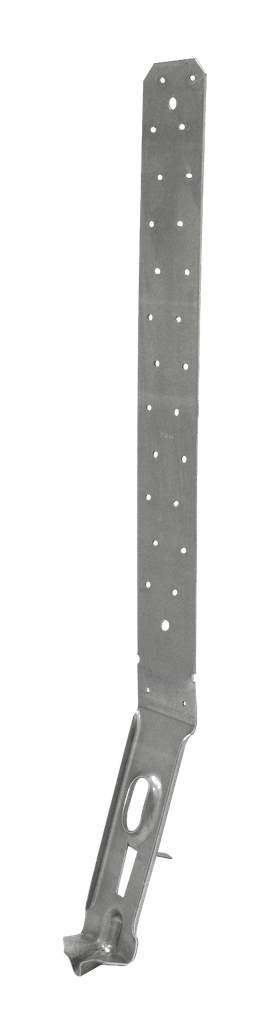

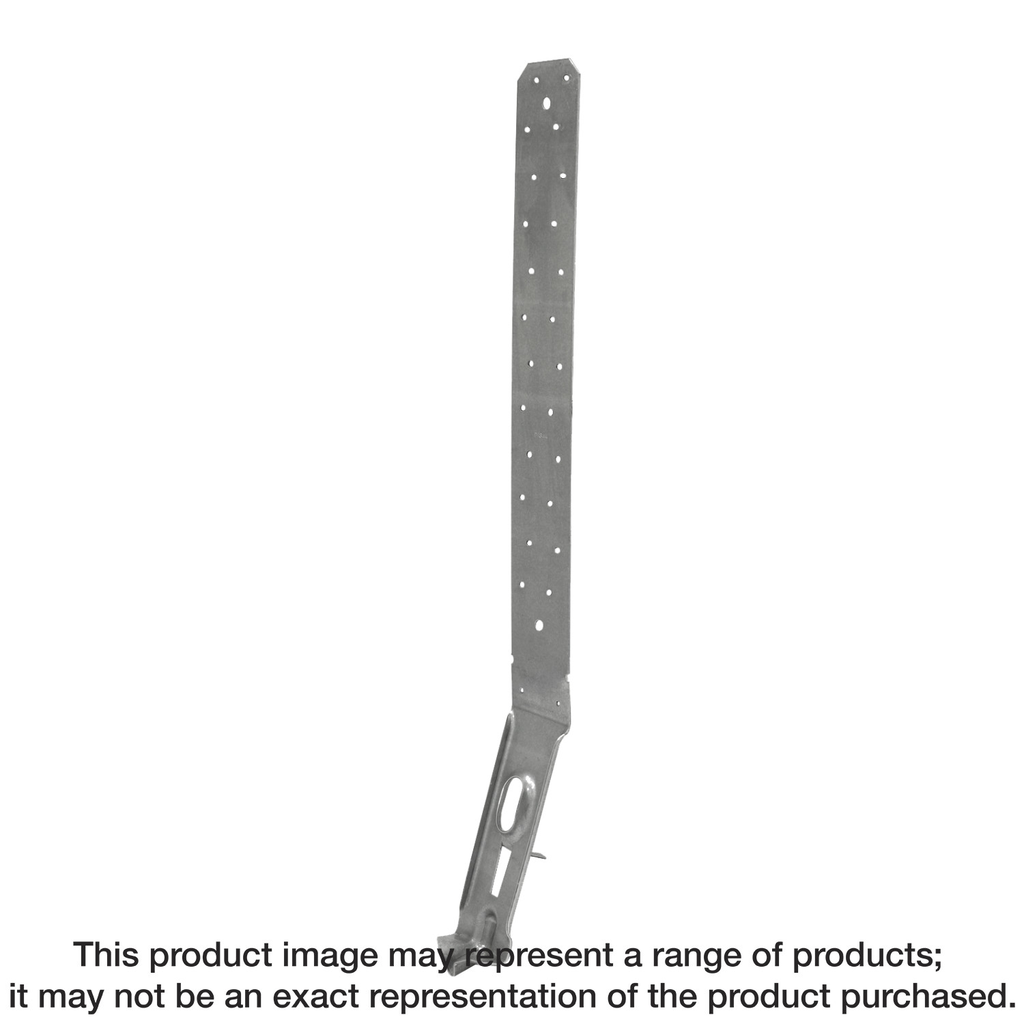

18-5/8IN STRAP TIE HOLDOWN
$18.91
Engineered for superior structural integrity, the LSTHD strap-tie holdown from Simpson Strong-Tie offers exceptional performance in securing double 2x members with its thoughtfully designed features. Made from durable 14-gauge galvanized steel, this holdown provides added corrosion resistance, ensuring longevity even in challenging environments. The strap not only features countersunk nail slots that create a lower head profile for a neater finish, but its staggered nailing pattern also reduces the risk of wood splitting, further enhancing its reliability. Additionally, with slots strategically placed below the embedment line, this holdown improves the concrete bond and minimizes the potential for spalling, making it an essential component for any robust construction project.
Description
The LSTHD is an embedded strap-tie holdown with features that aid correct installation and improve performance in both wood and cold-formed steel construction. When installed on the forms with the StrapMate® strap holder or other holding device, the unique design of this light cast-in-place strap-tie holdown delivers enhanced stability before and during the pour to help prevent both parallel and perpendicular movement.
Additional information
| Weight | 1.676 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Length | 18-5/8 in. |
| Depth | 3 in |
