19/32IN PLYWOOD SHEATHING CLIP
$14.91
Crafted from durable 20-gauge steel and designed for optimal performance in structural applications, the panel sheathing clip ensures a level structural plane by keeping panels even. Specifically engineered for 19/32-inch plywood, these clips are galvanized to resist corrosion, making them suitable for long-lasting use in various environments. Each clip provides the necessary 1/8-inch spacing between plywood panels, adhering to the recommendations of the American Plywood Association for improved performance. With a quick installation process that requires no nails, these clips simplify the sheathing process while ensuring reliable support for your building projects.
Description

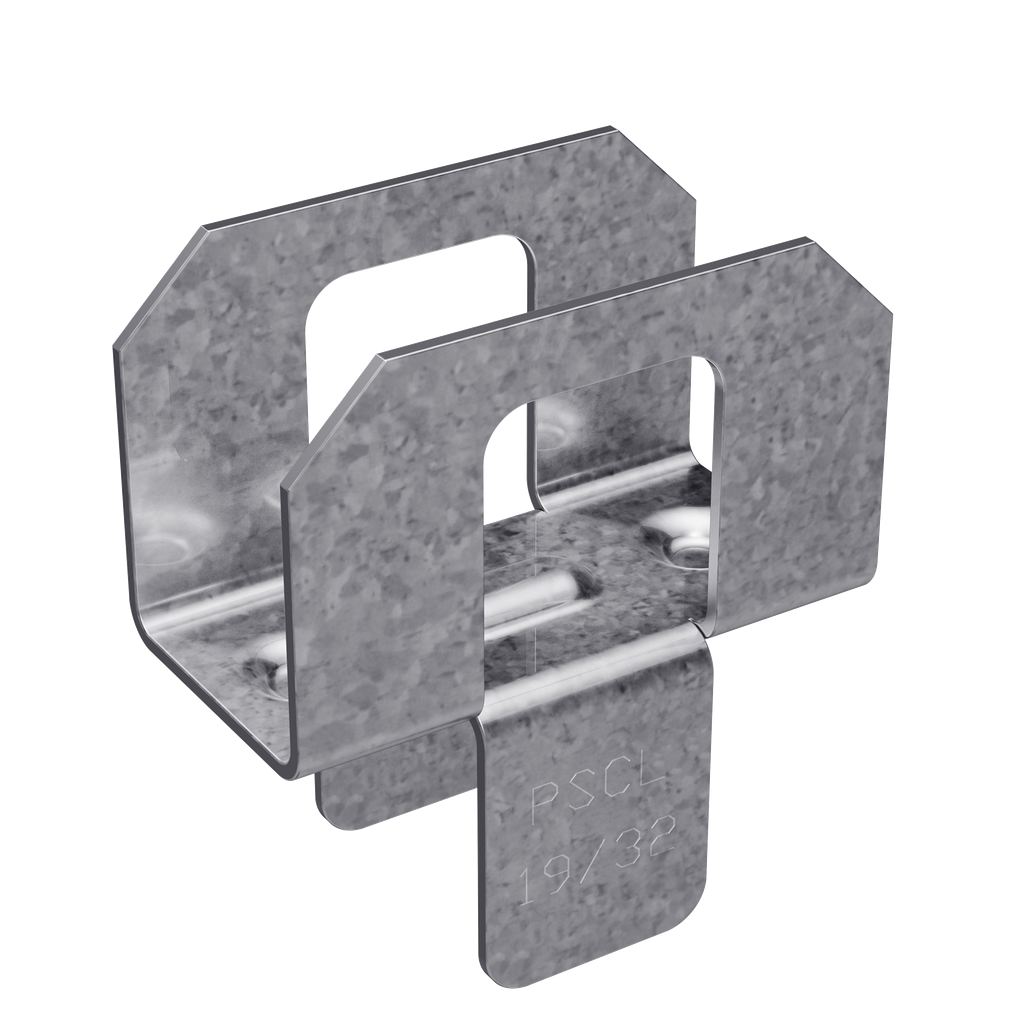

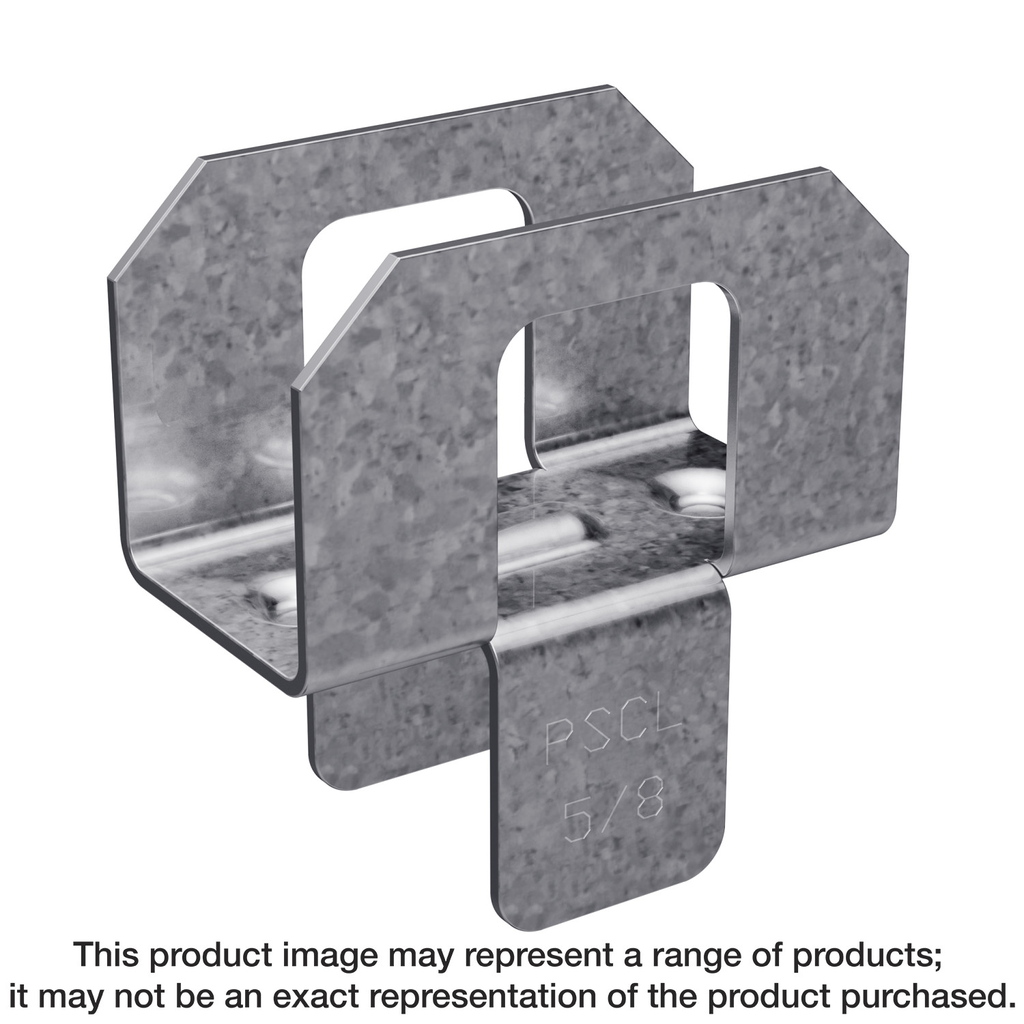

The PSCL is designed to brace unsupported sheathing edges when sheathing meets edge to edge without a rafter for support. This light sheathing clip provides a 1/8-in. gap to address shrinkage and expansion of roof sheathing. Inserted over the edges of adjacent plywood panels, the PSCL reduces deflection and keeps panels even to maintain a level plane on the structure.
Additional information
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 1.25 in |
| Panel Thickness Compatible | 19/32 in |
