.195 X 8 SDWH DB TAN 5/16 HEX 12CT
$21.16

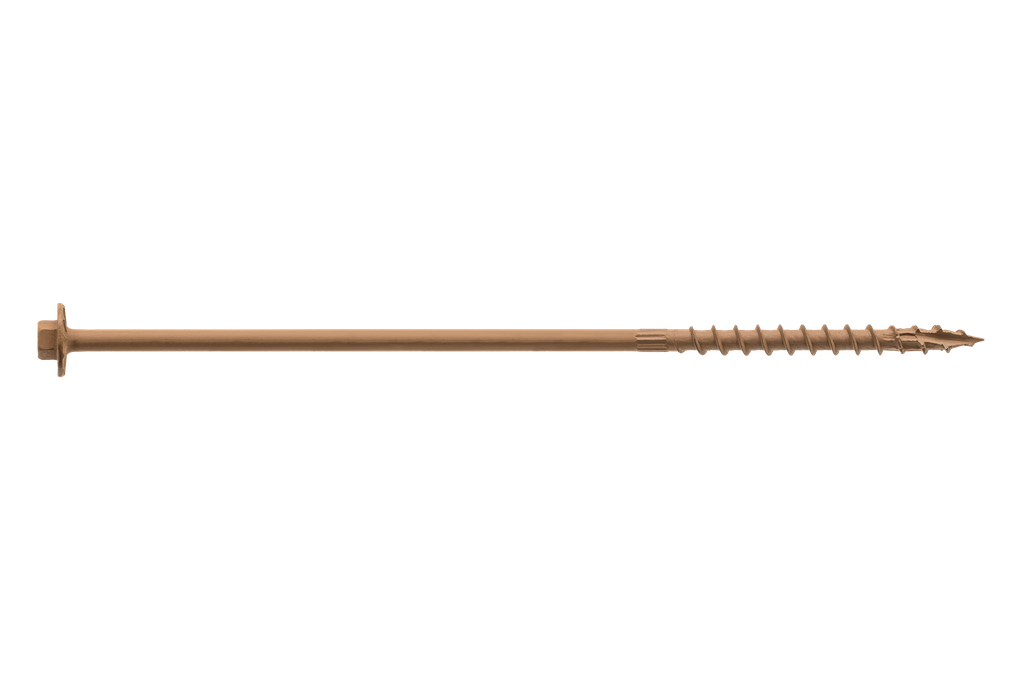

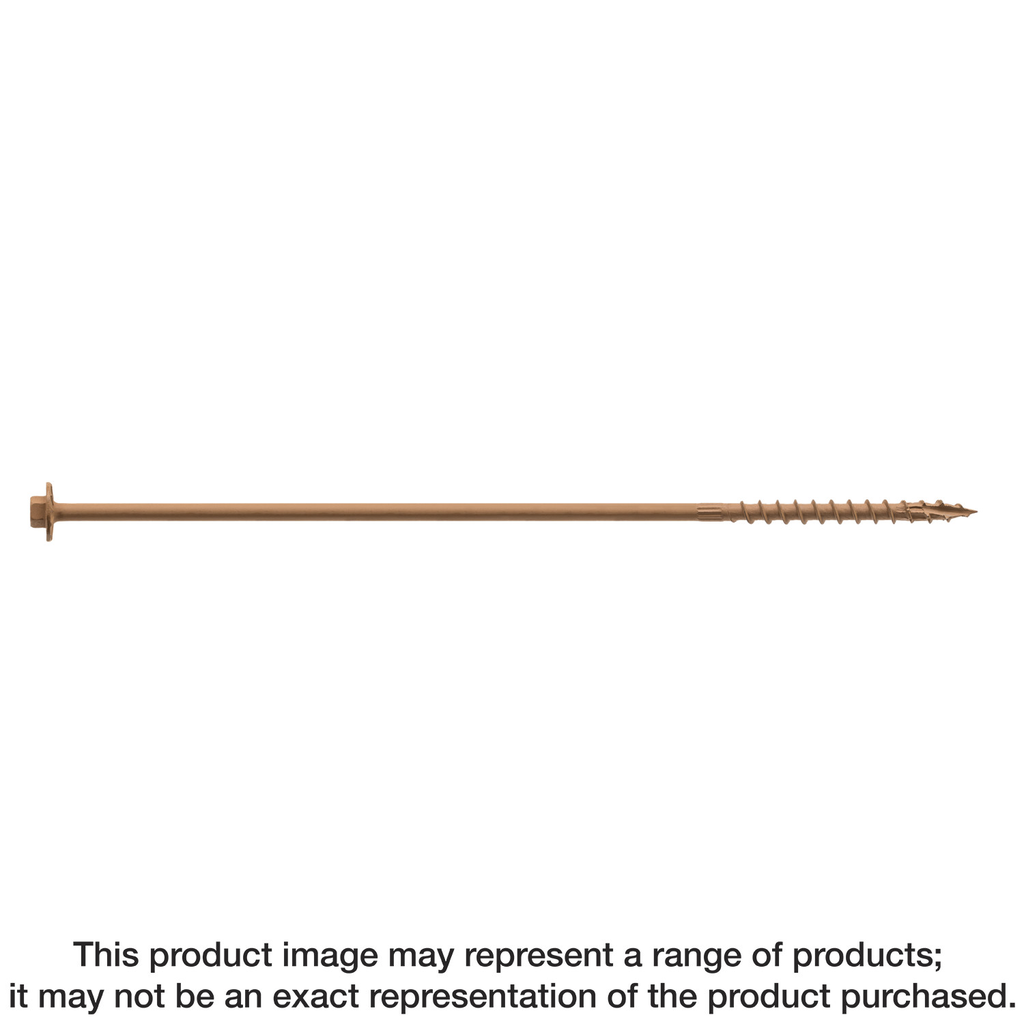

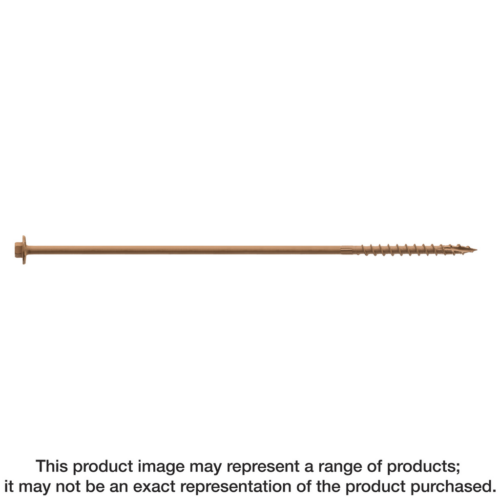

Engineered for optimal performance in a variety of applications, the Strong-Drive® SDWH™ Timber-Hex Screw from Simpson Strong-Tie features an innovative design with under-head nibs that enhance control during installation. The large washer head, measuring 0.650 inches in diameter, allows for maximum bearing area, ensuring a secure hold. Crafted with a bold thread design, these screws offer superior holding power, while the unique SawTooth® point simplifies the installation process by enabling fast starts and reducing the torque required—often eliminating the need for predrilling. Additionally, its double-barrier coating provides corrosion resistance comparable to hot-dip galvanization in most non-marine environments, making it a reliable choice for various outdoor projects.
Description
Ideal for structural and general-purpose fastening applications where a hex-head drive is preferred. The Strong-Drive SDWH Timber-Hex screw is ideal for the contractor and do-it-yourselfer alike. It is code listed under IAPMO-UES ER-192 and meets 2015 and 2018 IRC® and IBC® code requirements for several common wood framing applications.
Additional information
| Weight | 0.9 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Length | 8 in |
| Head Diameter | 0.650 in |
