2-2×10 DBL SHEAR FACE MOUNT HANGER ZMAX
$4.91

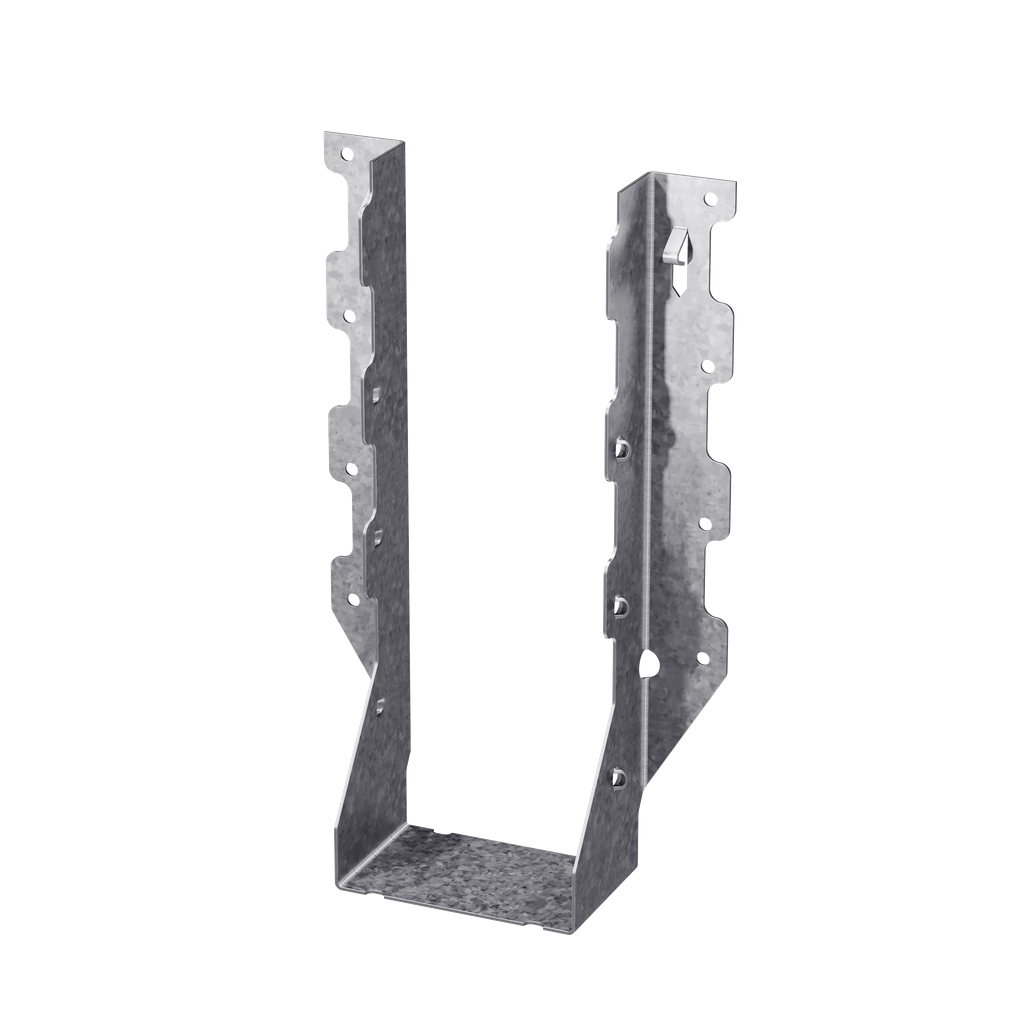

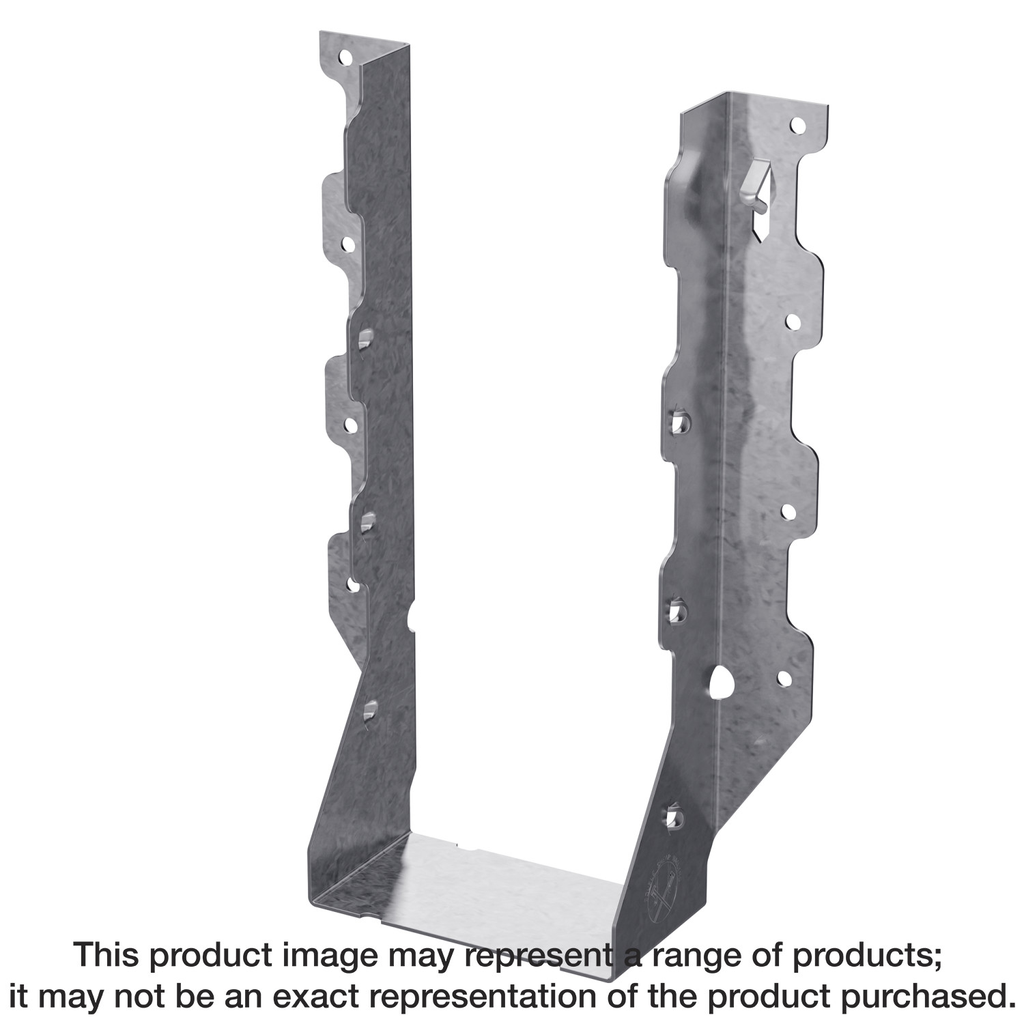

Engineered for strength and ease of use, the LUS210-2Z face-mount joist hanger from Simpson Strong-Tie is a reliable choice for supporting double 2×10 and 2×12 joists. Constructed from durable 18-gauge steel, it features a patented double-shear nailing design that maximizes stability while using fewer nails, making installation both quicker and more efficient. With speed prongs that simplify setup in tight spaces and ZMAX galvanization for superior corrosion protection, this joist hanger is ideal for exterior and treated-wood applications. Whether you are constructing a new deck or reinforcing an existing structure, this product brings the resilience and convenience needed for long-lasting support.
Description
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.
Additional information
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Joist Size | Double 2×10 and Double 2×12 |
| Depth | 5.346 in |
