2-2×10 DBL SHEAR FACE MOUNT HANGER
$3.47

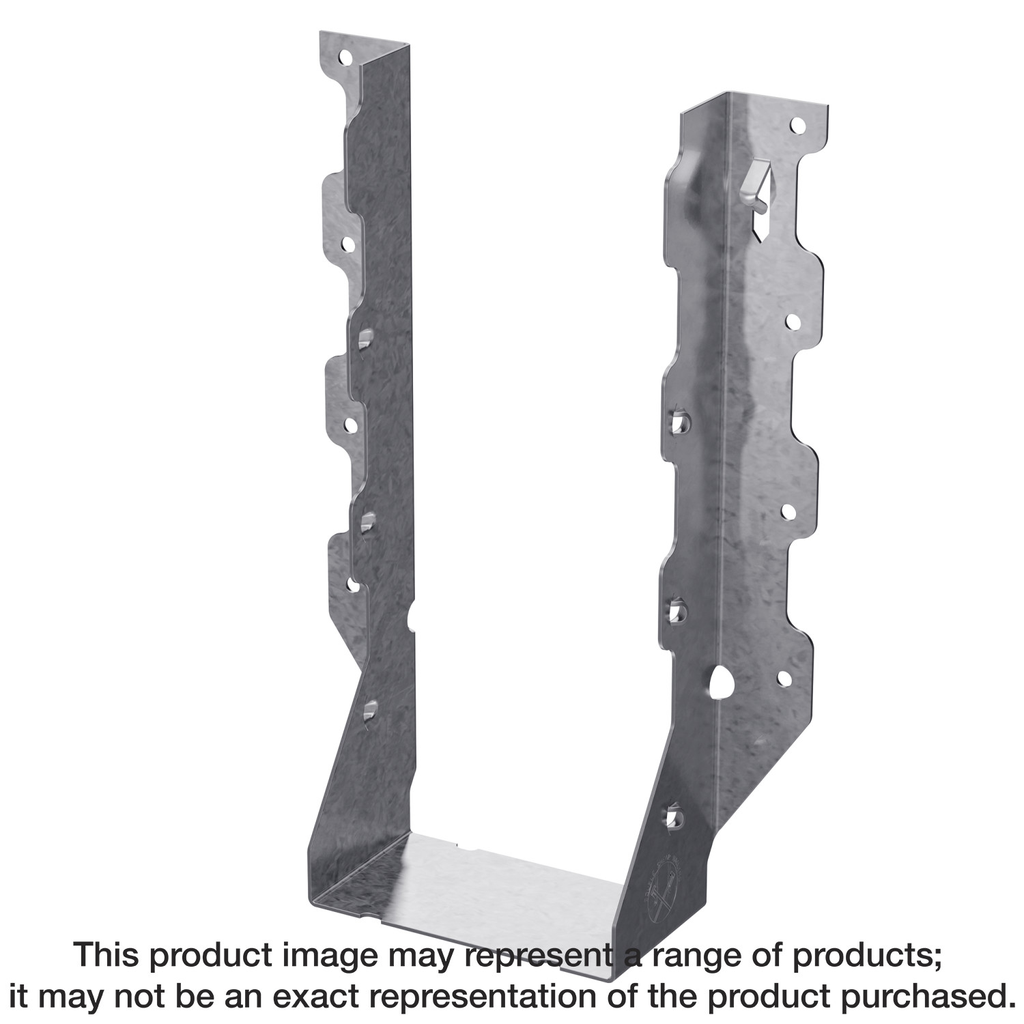

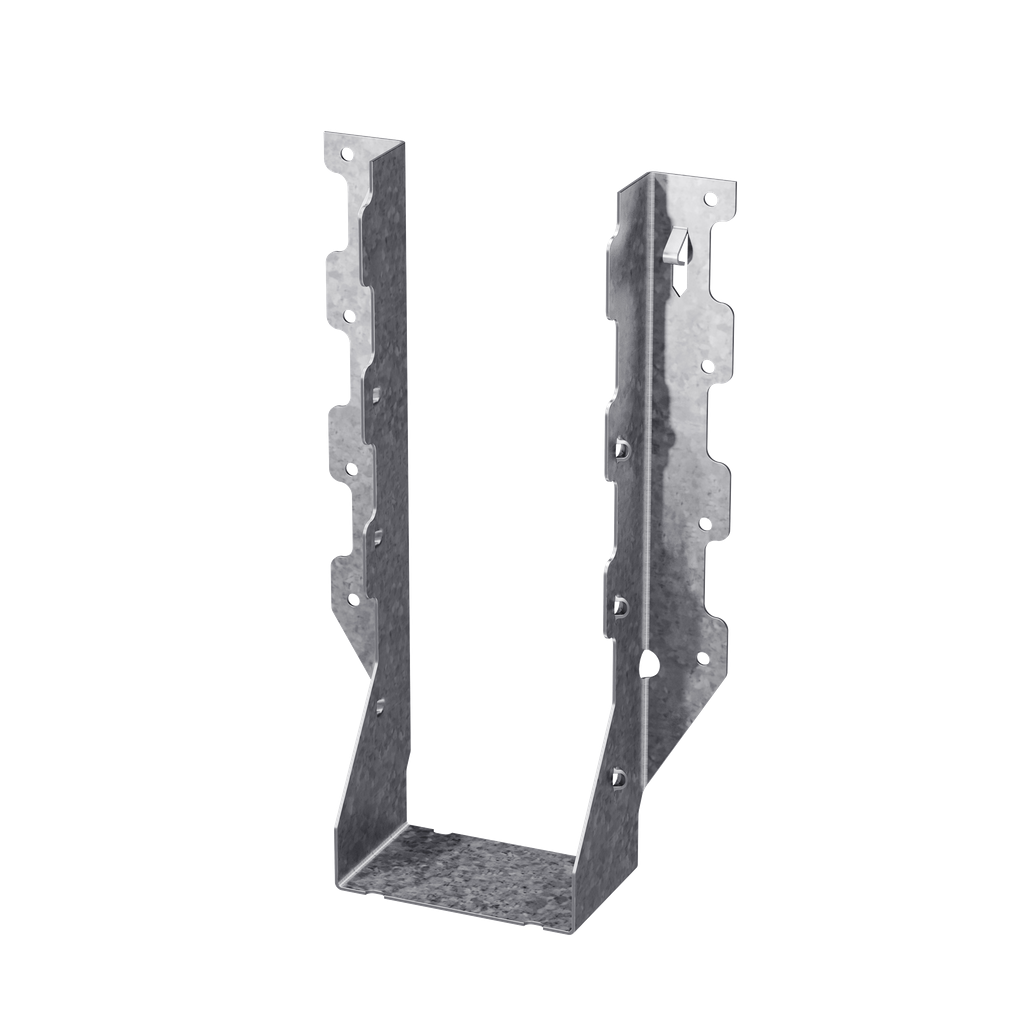

This galvanized face-mount joist hanger is engineered for exceptional strength and durability, making it an ideal choice for securing double 2×10 joists. With its patented double-shear nailing design, it offers enhanced strength while using fewer nails, streamlining both assembly and performance. The hanger is constructed from 18-gauge steel and features speed prongs that facilitate quick and easy installation, even in tight spaces where angled joist nailing can be a challenge. Additionally, the G90 galvanized finish provides superior corrosion resistance, ensuring long-lasting reliability in various outdoor applications.
Description
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.
Additional information
| Weight | 0.56 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Joist Size | Double 2×10, 2×12, 2×14 |
| Depth | 5.342 in |
