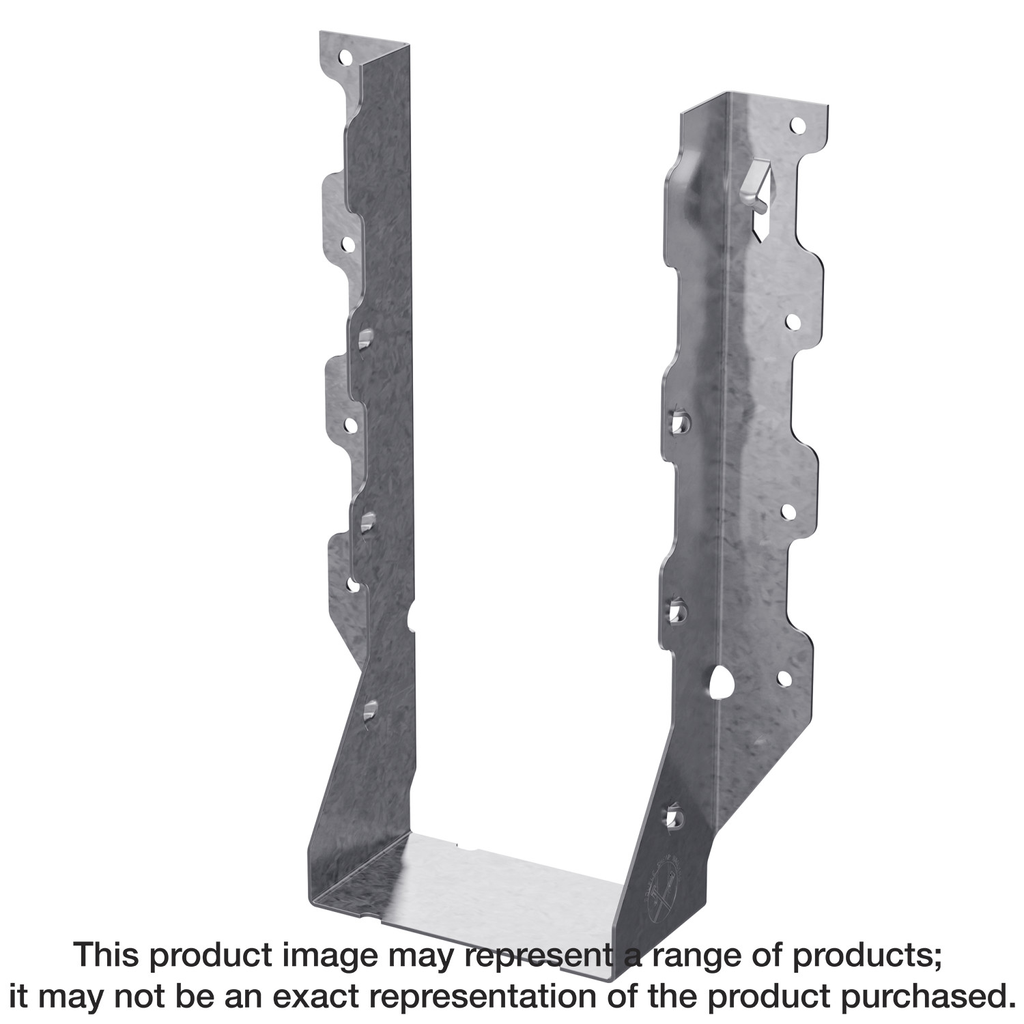

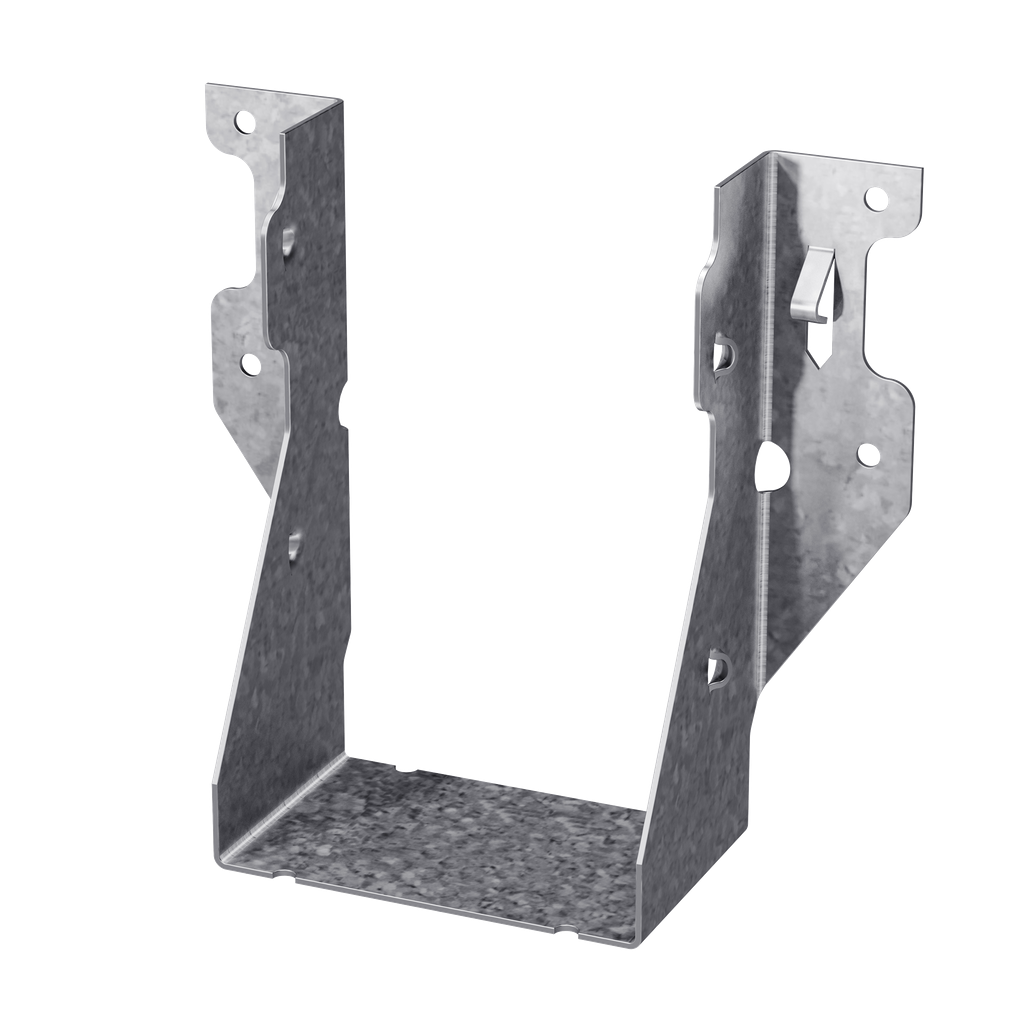

2-2×6 DBL SHEAR FACE MOUNT HANGER
$2.67
This galvanized face-mount joist hanger is expertly crafted from 18-gauge steel, providing exceptional strength and durability for your construction projects. Designed for double 2×6 and 2×8 nominal joists, it features speed prongs that facilitate a quick and straightforward installation process while ensuring a secure fit. Its patented double-shear nailing design not only enhances the structural integrity of your build but also reduces the number of nails required, making it an efficient choice for both professional contractors and DIY enthusiasts alike. Additionally, the galvanized finish offers superior corrosion resistance, ensuring that this product will maintain its integrity even in challenging environments. Enjoy the convenience of angled joist nailing, which simplifies installation in tight spaces, making this joist hanger a reliable solution for your framing needs.
Description
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.
Additional information
| Weight | 0.36 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 5.342 in |
| Nominal Joist Size | Double 2×6 and 2×8 |
