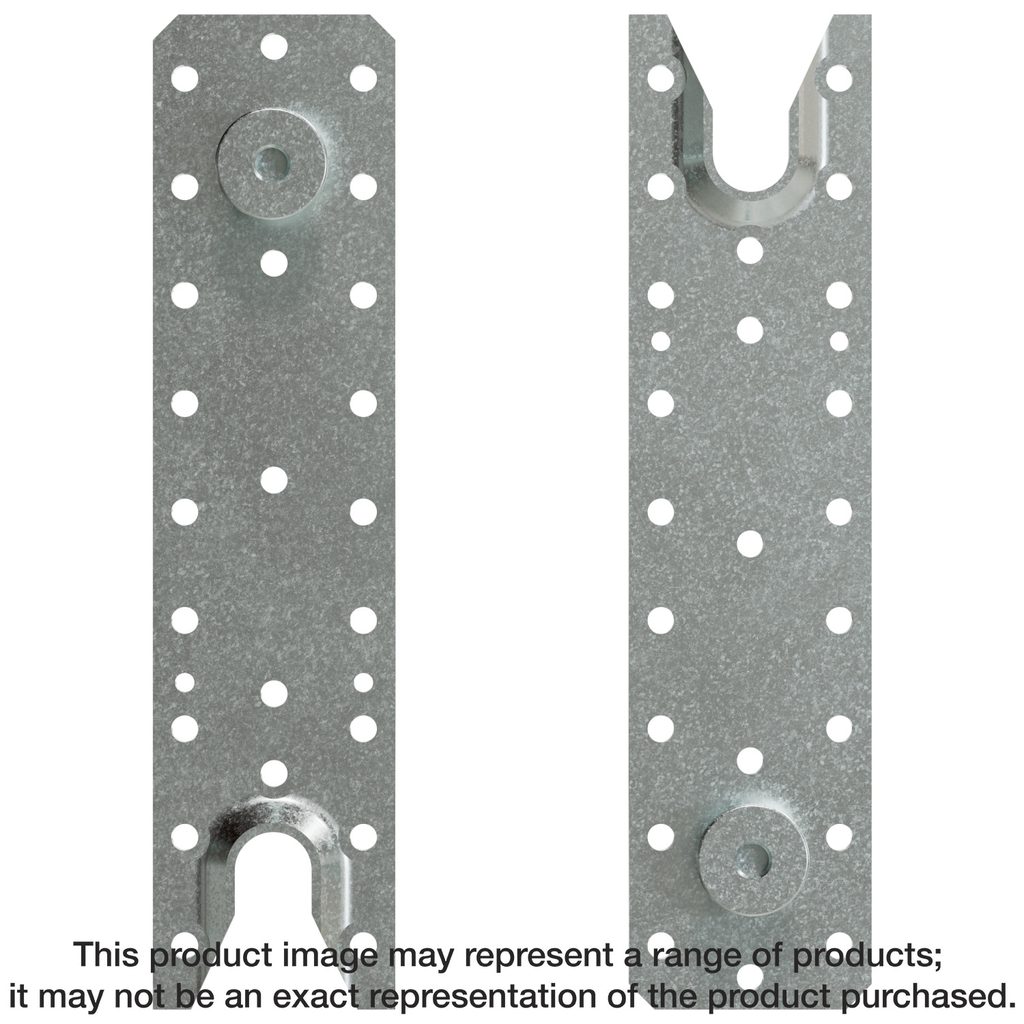

2.37″ X 5.5″ CBH HDG Kit – Beam Hanger
$93.46
The CBH™ concealed hanger from Simpson Strong-Tie is designed to provide robust support in structural applications, offering a width of 2-3/8 inches and a height of 5-1/2 inches. Crafted from 3-gauge steel and finished with hot-dip galvanization, it boasts superior corrosion resistance, making it ideal for exterior and treated-wood projects. This hanger is code-listed per ICC-ESR-2552 and certified for 1-hour and 2-hour fire resistance ratings according to ASTM E119, ensuring that it meets strict safety standards. With impressive inter-story drift performance tested to over 2% and precise beam length tolerances of +/- 1/32 inch, installation becomes streamlined and precise, catering to diverse jobsite requirements while maintaining both structural integrity and aesthetic appeal.
Description
Computer modeling and CNC manufacturing enables glulam to be delivered to the jobsite in precise lengths and with preinstalled concealed hangers. The Simpson Strong-Tie® CBH™ concealed beam hanger is specifically designed for such applications, and is installed with readily available Strong-Drive® SDS Heavy-Duty Connector screws. The CBH has been tested for inter-story drift and has achieved 1-hr and 2-hr fire resistance ratings according to ASTM E119.
Additional information
| Weight | 2.04 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Width | 2.375 in |
| Height | 5.5 in |
