2.37″ X 7.63″ CBH HDG Kit – Beam Hanger
$112.89

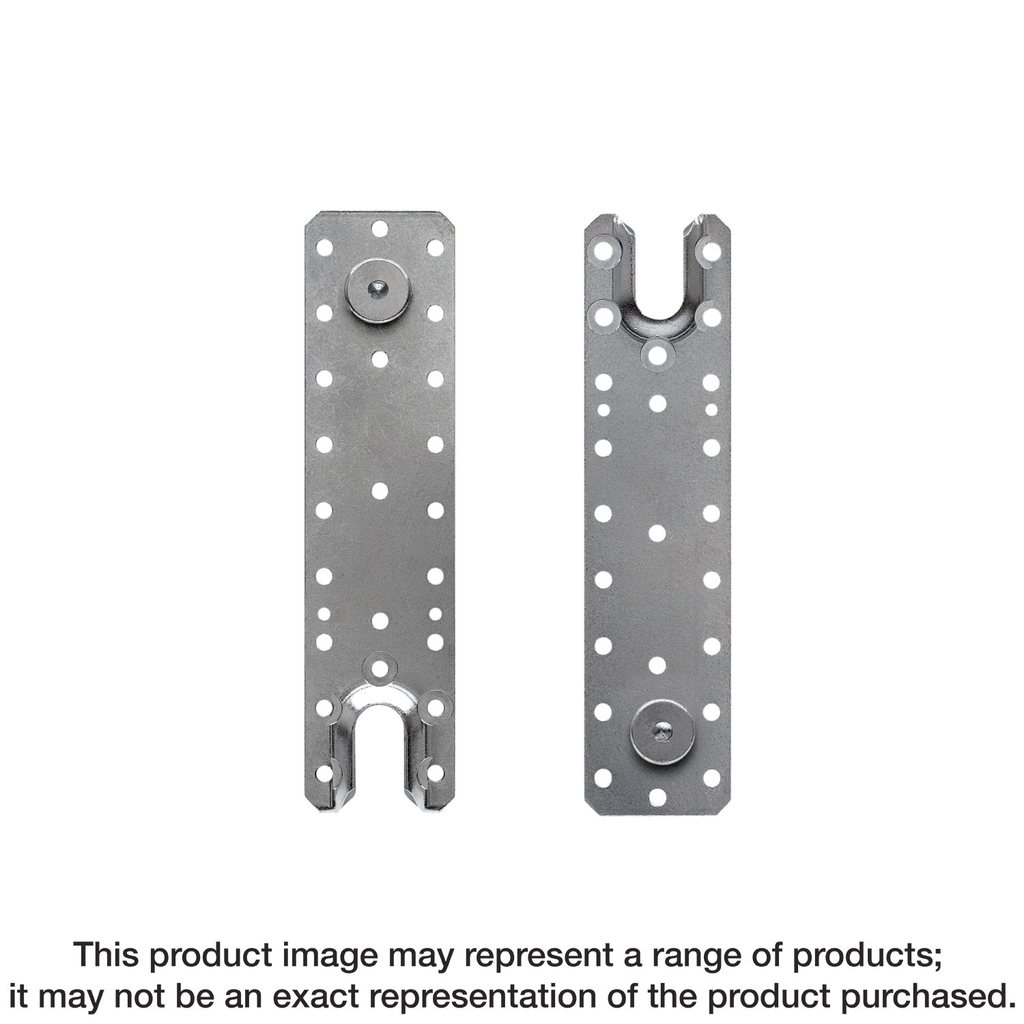

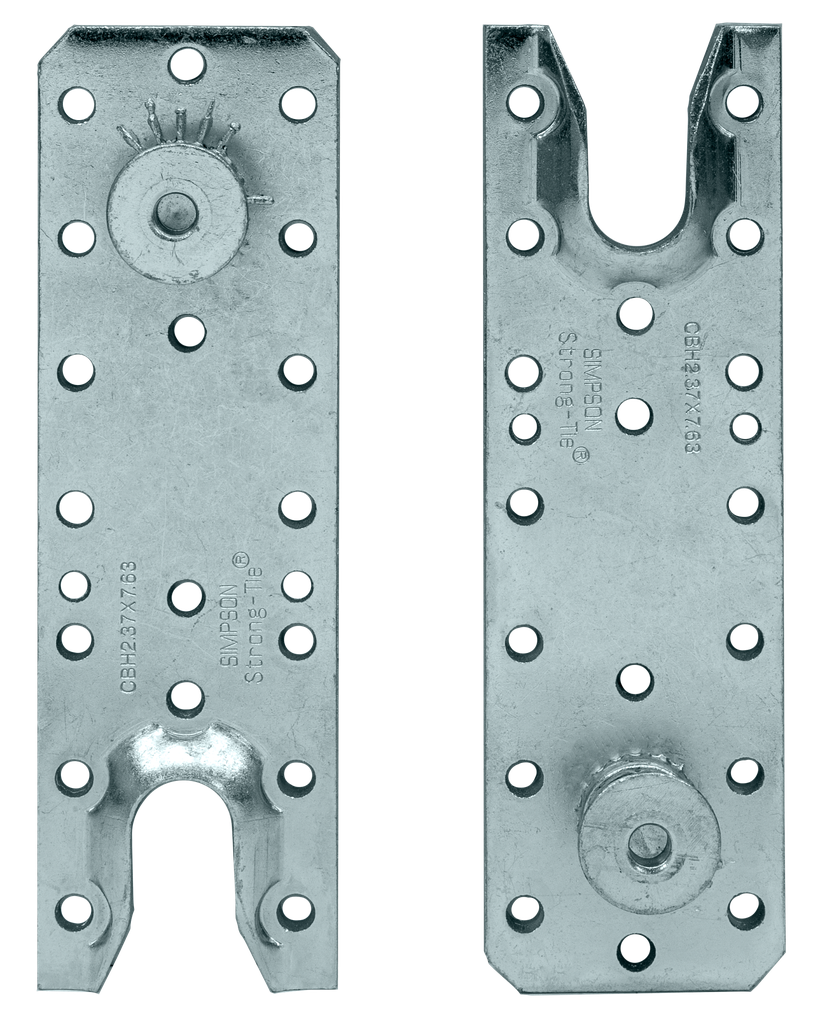

The Simpson Strong-Tie CBH™ concealed hanger is engineered for effective joist-to-beam or column connections, blending functionality with architectural aesthetics. This product features a robust design crafted from 3-gauge steel with hot-dip galvanization, ensuring exceptional corrosion resistance for both exterior and treated-wood applications. With a width of 2-3/8 inches and a height of 7-5/8 inches, it seamlessly accommodates a variety of job site needs, while the unique dual backplate configuration enhances connection stability.
Description
Computer modeling and CNC manufacturing enables glulam to be delivered to the jobsite in precise lengths and with preinstalled concealed hangers. The Simpson Strong-Tie® CBH™ concealed beam hanger is specifically designed for such applications, and is installed with readily available Strong-Drive® SDS Heavy-Duty Connector screws. The CBH has been tested for inter-story drift and has achieved 1-hr and 2-hr fire resistance ratings according to ASTM E119.
Additional information
| Weight | 2.64 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Manufacturer | Simpson Strong-Tie |
| Country of Origin | United States |
| Depth | 2.375 in |
