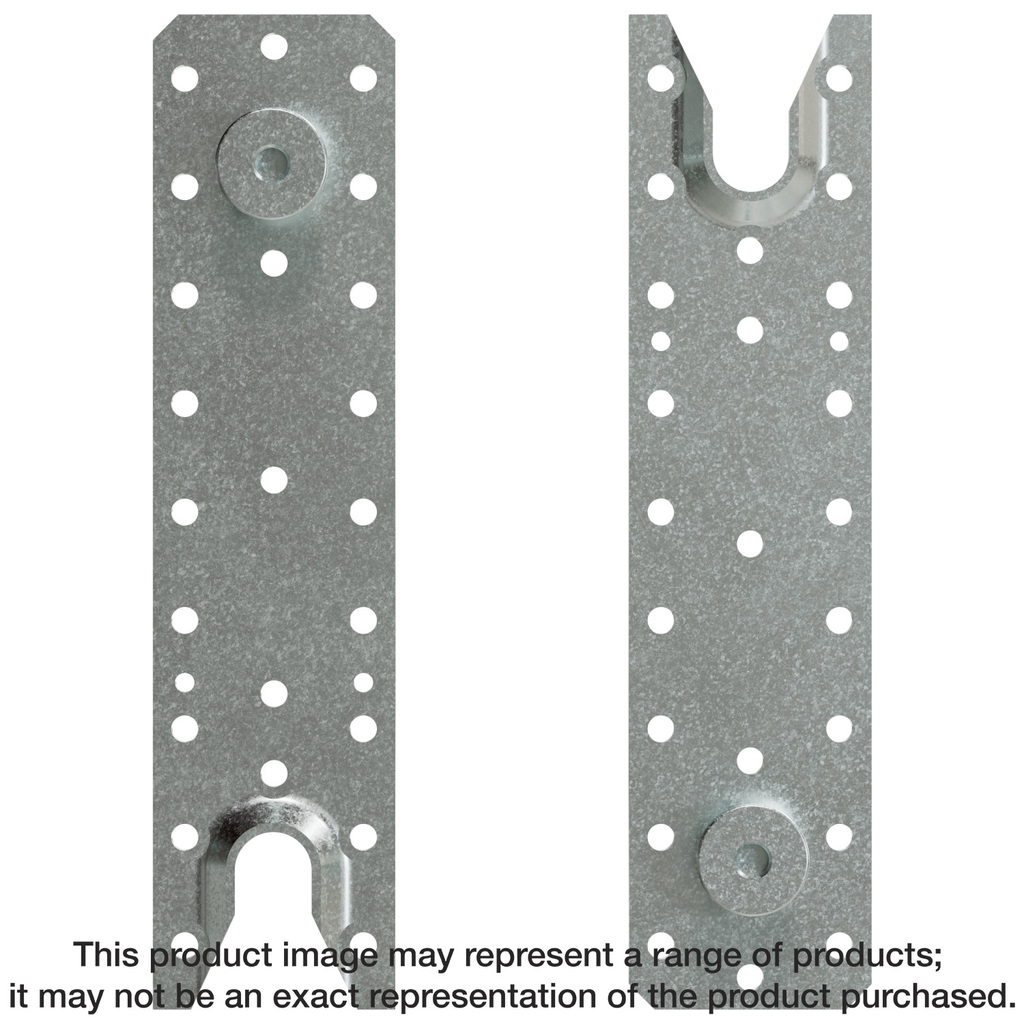

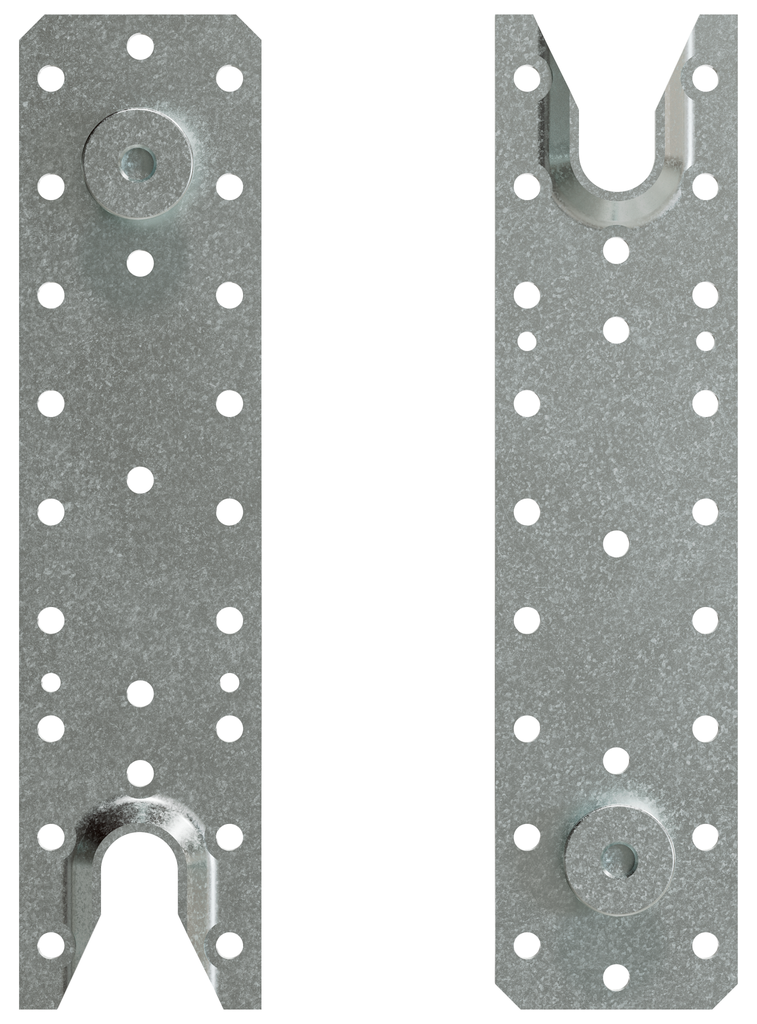

2.37″ X 9.75″ CBH HDG Kit – Beam Hanger
$168.09
Engineered for strength and reliability, this concealed hanger from Simpson Strong-Tie is ideal for connecting joists to beams or columns. Constructed from robust 3-gauge steel and finished with hot-dip galvanization, it’s designed to withstand the rigors of outdoor and treated-wood applications while offering enhanced corrosion resistance. Its dimensions of 2-3/8 inches in width and 9-3/4 inches in height, along with precise beam length tolerances, facilitate a straightforward installation process. With multiple routing options and proven inter-story drift performance, this hanger not only meets stringent fire resistance ratings but also boasts the aesthetic appeal of a concealed design, making it a reliable choice for both structural integrity and architectural elegance. Code-listed per ICC-ESR-2552, it ensures quality and compliance with industry standards.
Description
Computer modeling and CNC manufacturing enables glulam to be delivered to the jobsite in precise lengths and with preinstalled concealed hangers. The Simpson Strong-Tie® CBH™ concealed beam hanger is specifically designed for such applications, and is installed with readily available Strong-Drive® SDS Heavy-Duty Connector screws. The CBH has been tested for inter-story drift and has achieved 1-hr and 2-hr fire resistance ratings according to ASTM E119.
Additional information
| Weight | 3.24 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Width | 2.375 in |
| Height | 9.75 in |
