2 X 10 DBL CONCEALED FACE MOUNT HANGER
$24.07

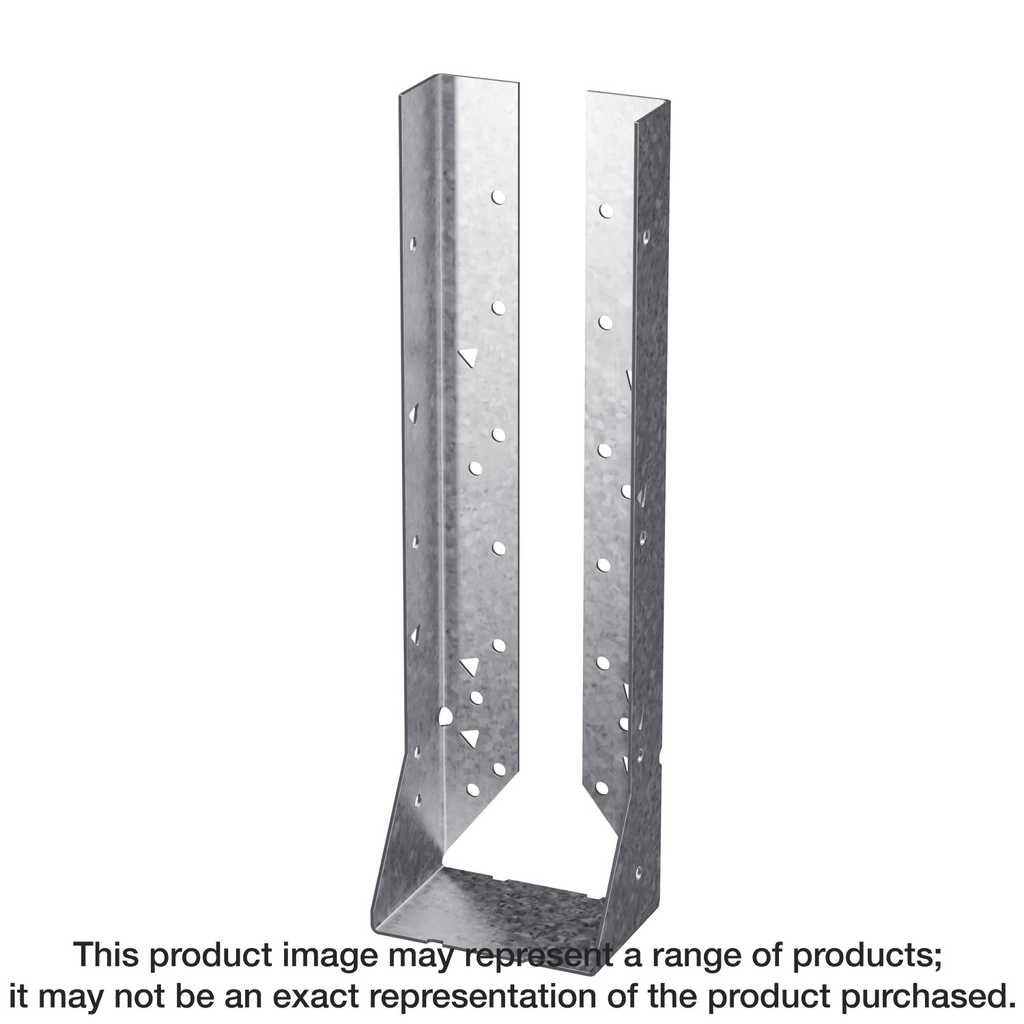

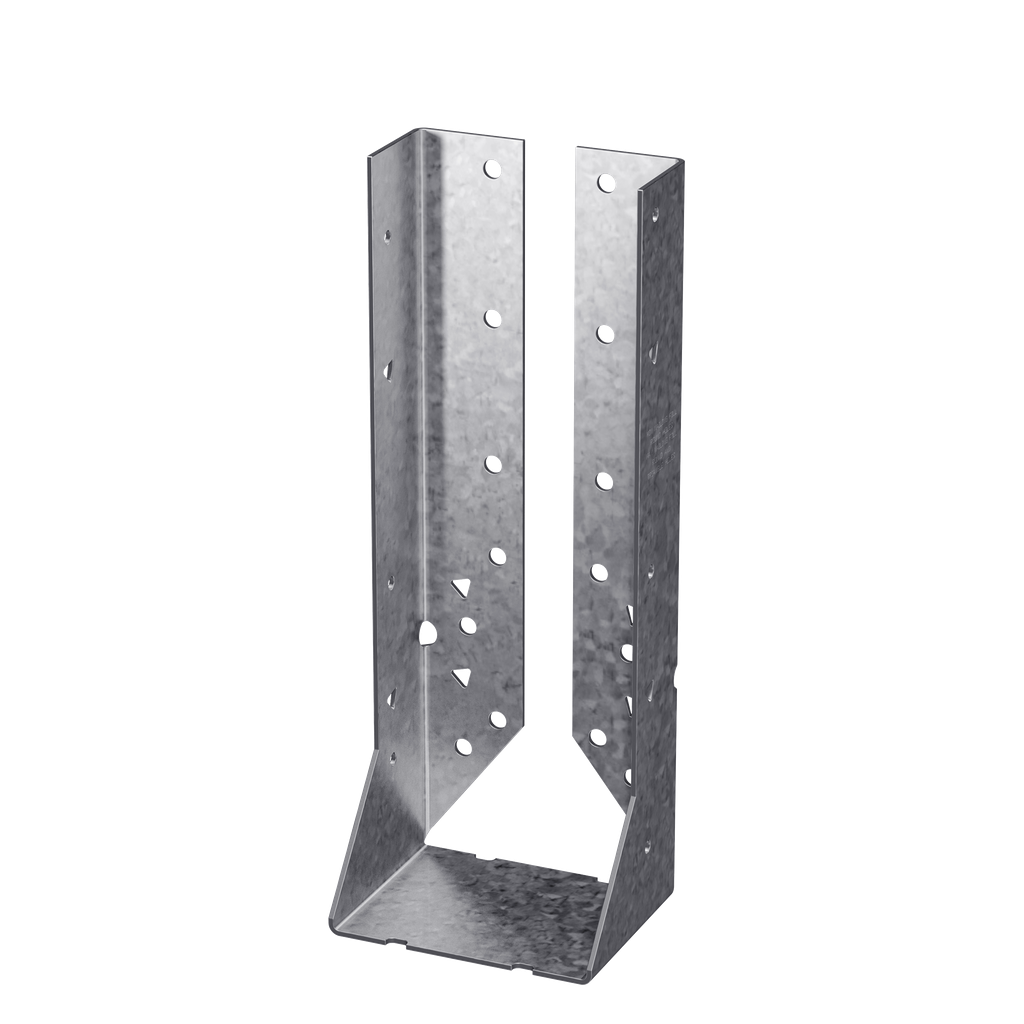

Engineered for strength and reliability, the HUC-series concealed-flange joist hanger from Simpson Strong-Tie is an essential component for connecting double 2×10 wood joists to various materials including wood, masonry, and concrete. Crafted from durable 14-gauge steel and treated with hot-dip galvanization, it ensures long-lasting performance even in demanding environments by providing exceptional corrosion resistance. Additionally, the design includes extra optional triangle holes that enhance load capacity, making it a versatile choice for heavy-duty applications. Tested and load rated to meet code compliance, this joist hanger is a dependable solution for construction projects that require both structural integrity and flexibility.
Description
The HUC is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges providing cleaner visible lines in exposed conditions. Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°.
Additional information
| Weight | 1.1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Joist Size | Double 2×10 |
| Depth | 3.265 in |
