2 X 10 DBL JOIST HANGER SKEWED RIGHT
$26.40

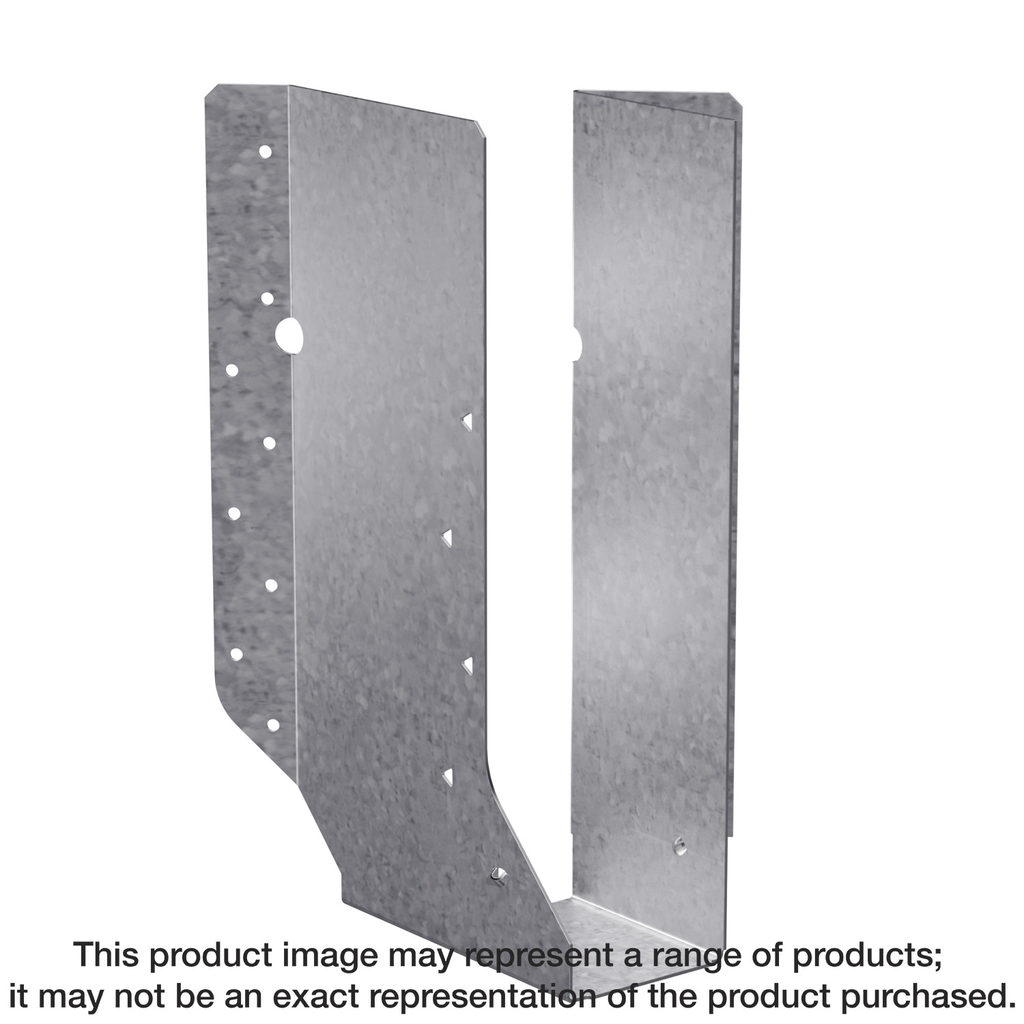

Engineered for robust structural support, the galvanized joist hanger from Simpson Strong-Tie accommodates double 2×10 or 2×12 joists with ease. Crafted from durable 16-gauge steel and finished with a G90 galvanization, it offers excellent corrosion resistance, ensuring longevity even in challenging environments. The innovative angled nail slots facilitate proper installation by directing nails effectively, while the design allows for both square cut and bevel cut joist ends. This skewed right model is particularly suited for installations requiring a 40° to 50° skew, making it a versatile choice for various construction projects.
Description
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. SUL/SUR hangers provide a 45° connection between a joist and header.
Additional information
| Weight | 1.51 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Joist Size | Double 2×10 or 2×12 |
| Depth | 8.34375 in |
