2 X 10 TPL FACE MOUNT HANGER
$40.67

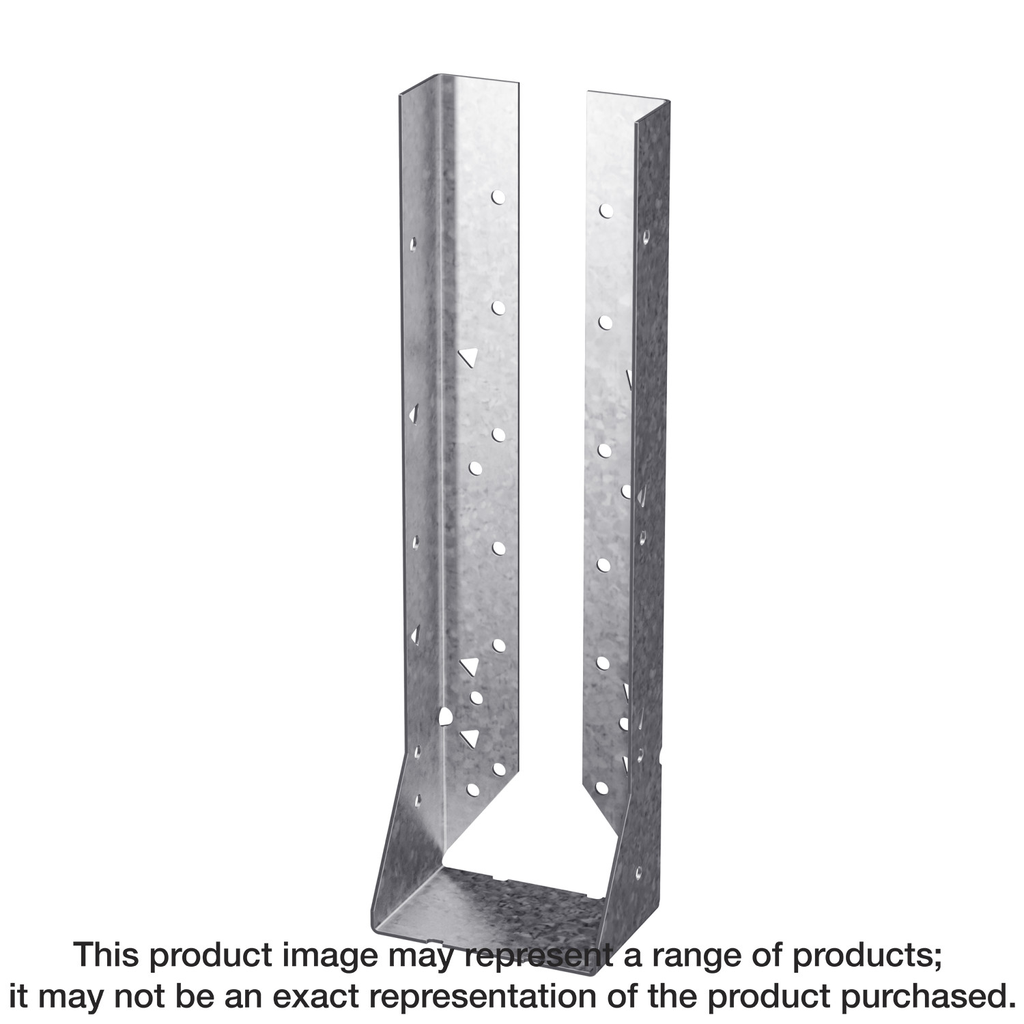

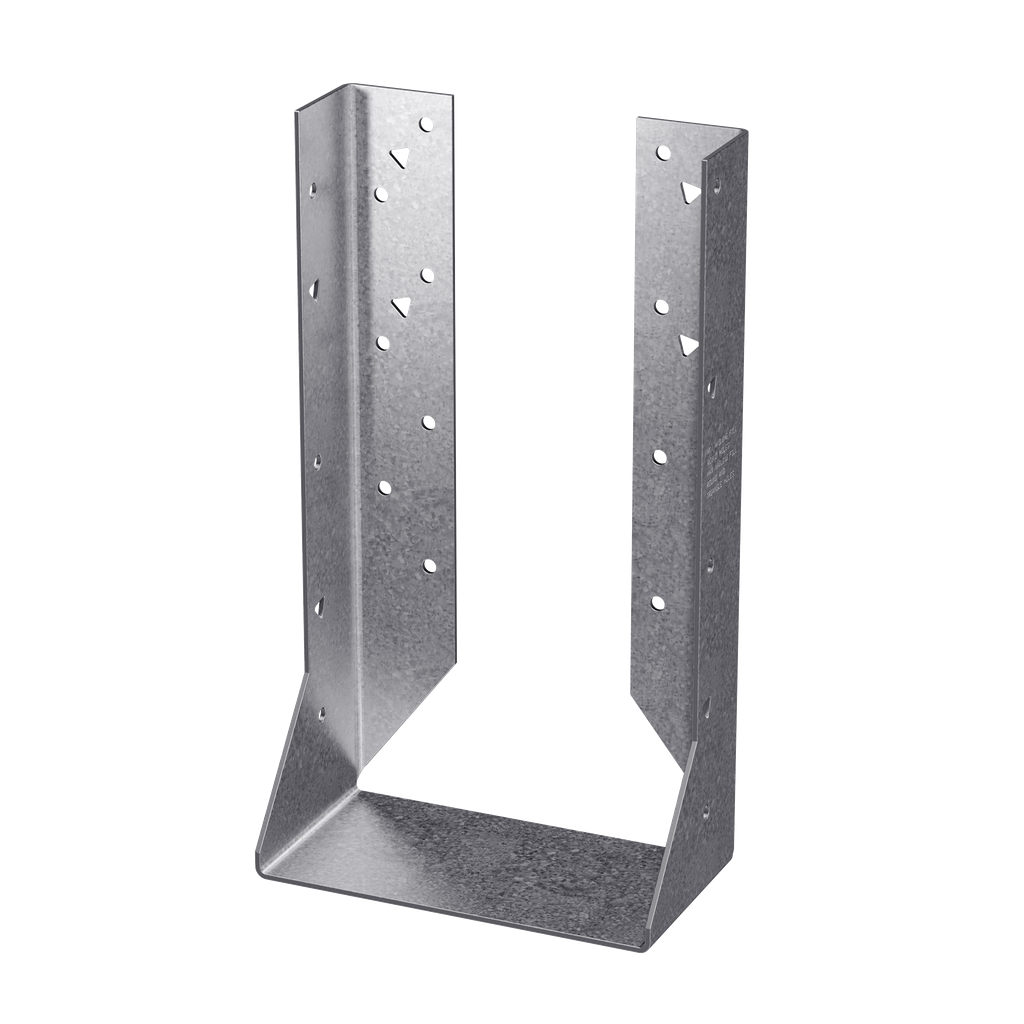

This face-mount concealed-flange joist hanger, designed for triple 2×10 nominal joists, is an essential component for ensuring sturdy connections in wood, masonry, and concrete frameworks. Crafted from 14-gauge steel and galvanized for enhanced corrosion resistance, it stands up to the rigors of various environments while maintaining structural integrity. The HUC-series hangers are not only tested for load capacity but are also code compliant, ensuring reliability in your construction projects. For those seeking added strength, optional triangle holes are included for supplemental load capabilities, making this product a robust choice for building and renovation tasks.
Description
The HUC is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges providing cleaner visible lines in exposed conditions. Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°.
Additional information
| Weight | 1.15 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Joist Size | Triple 2×10 |
| Depth | 4.8275 in |
