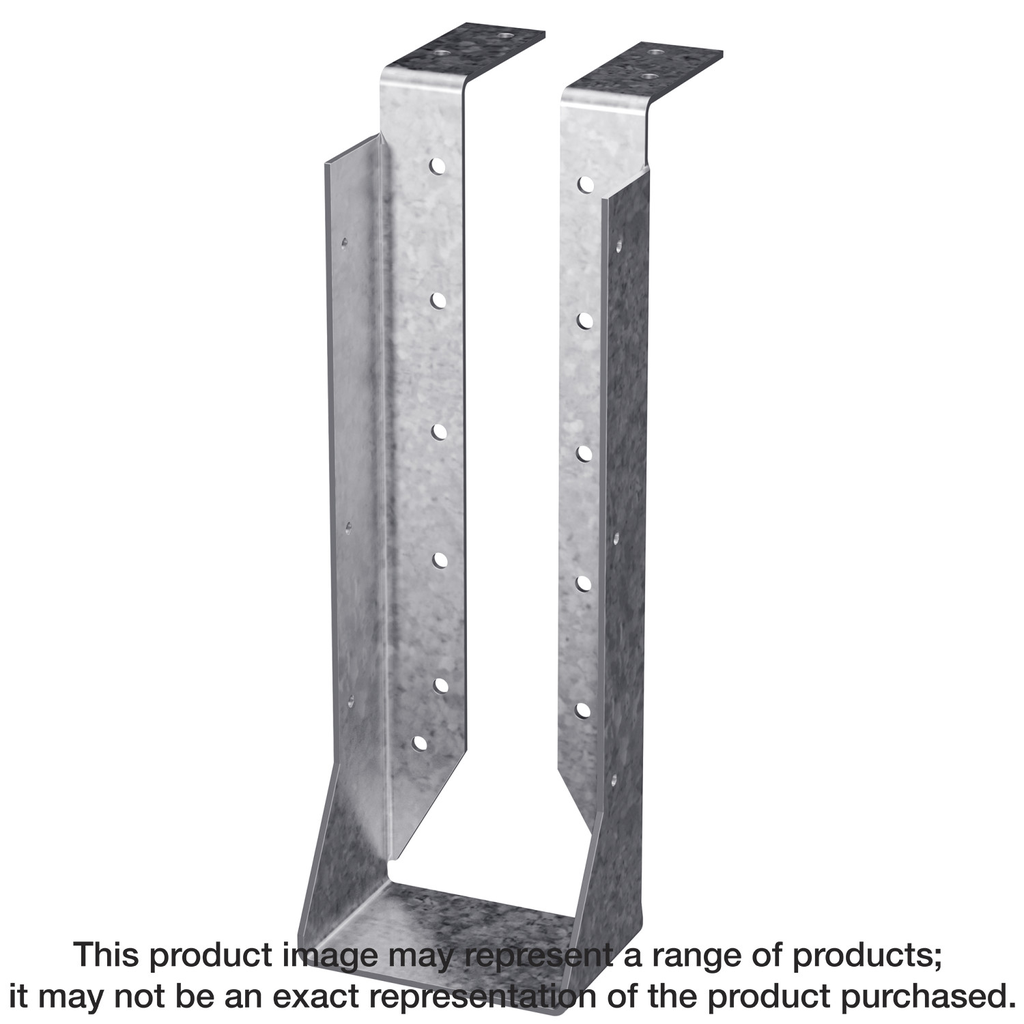

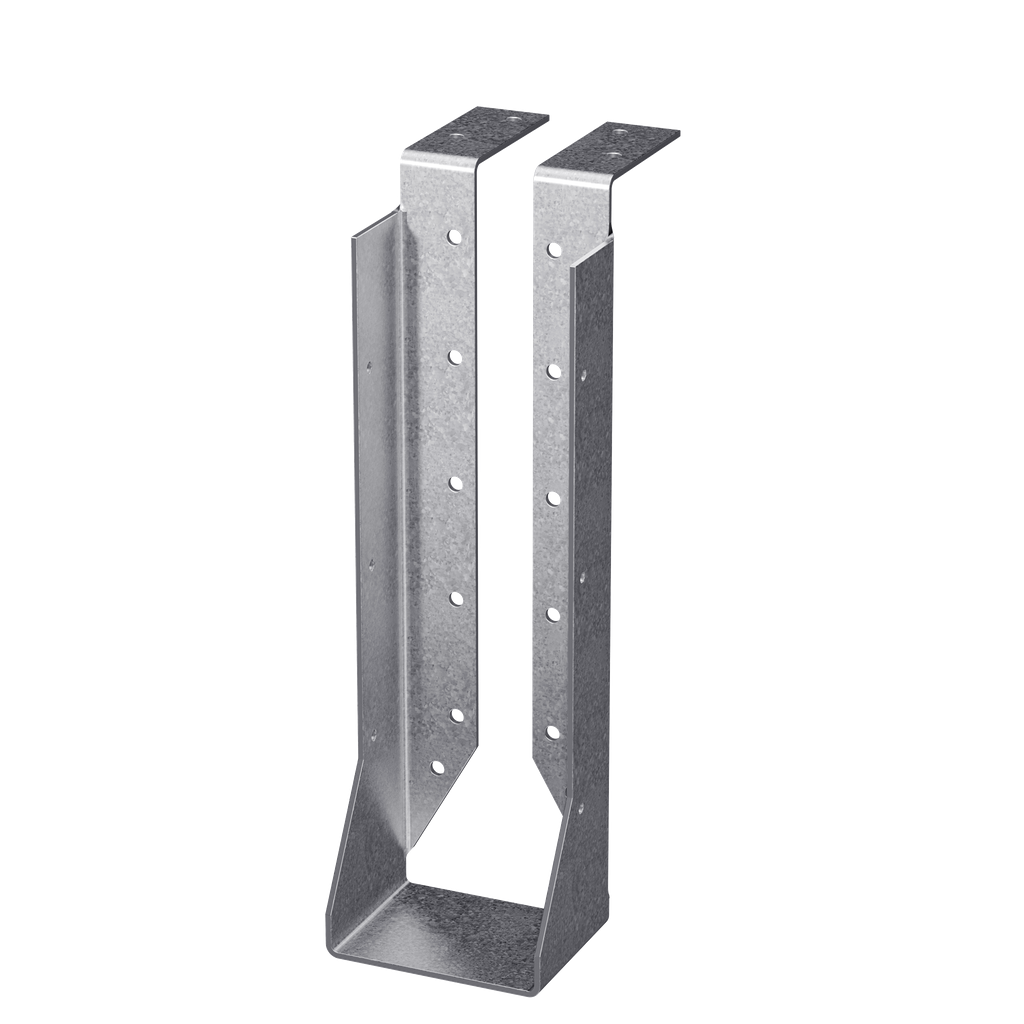

2 X 12 DBL CONCEALED TOP FLANGE HANGER
$59.55
Engineered for robust structural support, the galvanized top-flange concealed-flange joist hanger from Simpson Strong-Tie is specifically designed for double 2×12 joists. Crafted from 12-gauge steel, this durable hanger ensures reliable performance in various construction applications, adhering to load ratings and code compliance that guarantee peace of mind during installation. Its innovative design allows for sloping up to 45 degrees, accommodating various building needs while providing extra protection against corrosion with its G90 galvanization. For projects requiring unique specifications, rough beam sizes may be available through special order, making it a versatile choice for builders seeking quality and integrity in their framing solutions.
Description
The HUCTF is a hybrid hanger that incorporates the advantages of both face-mount and top-mount hangers. This heavy-duty joist hanger is designed with two concealed flanges for end-of-wall or corner installation. The HUCTF features face-nailing that allows the hanger to be securely attached to the member.
Additional information
| Weight | 1.98 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 3.323 in |
| Joist Size | Double 2×12 |
