2 X 12 DBL CONCL FACE MOUNT HANGER
$28.71

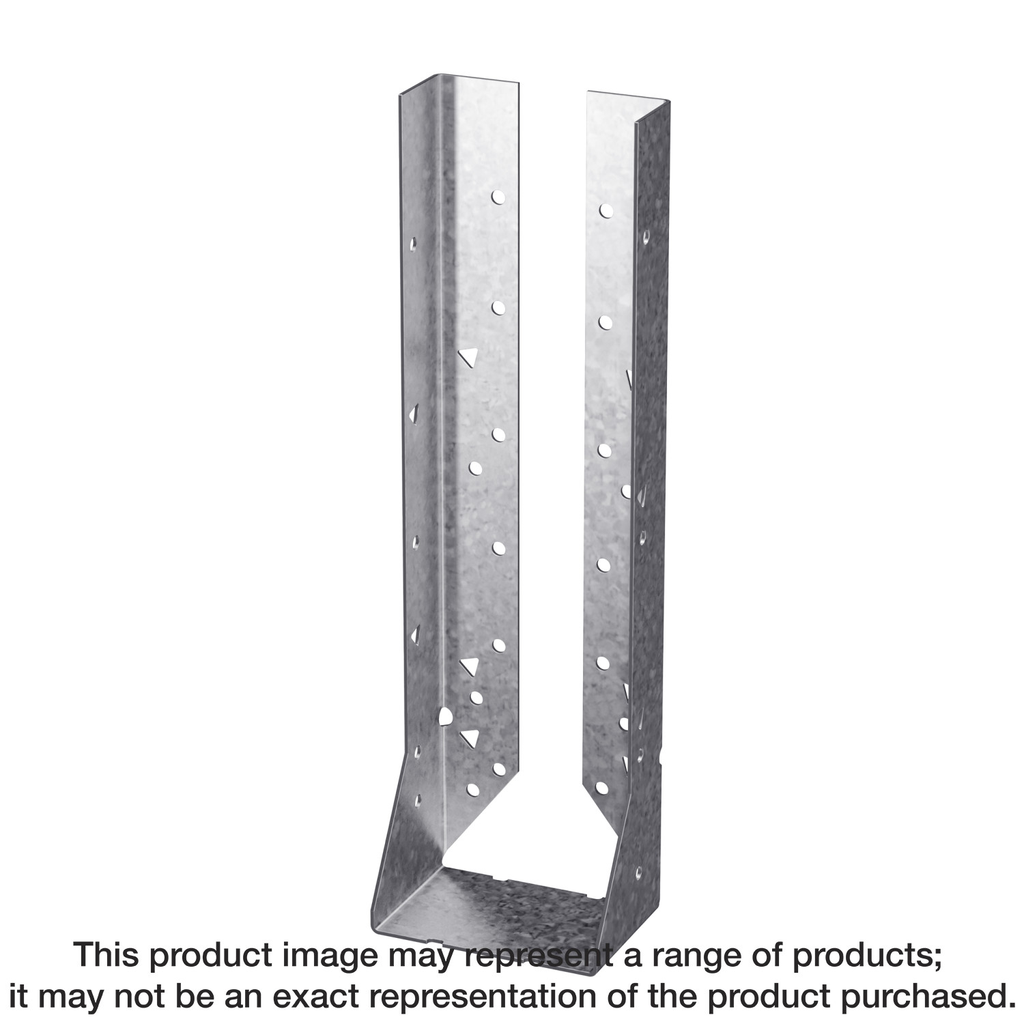

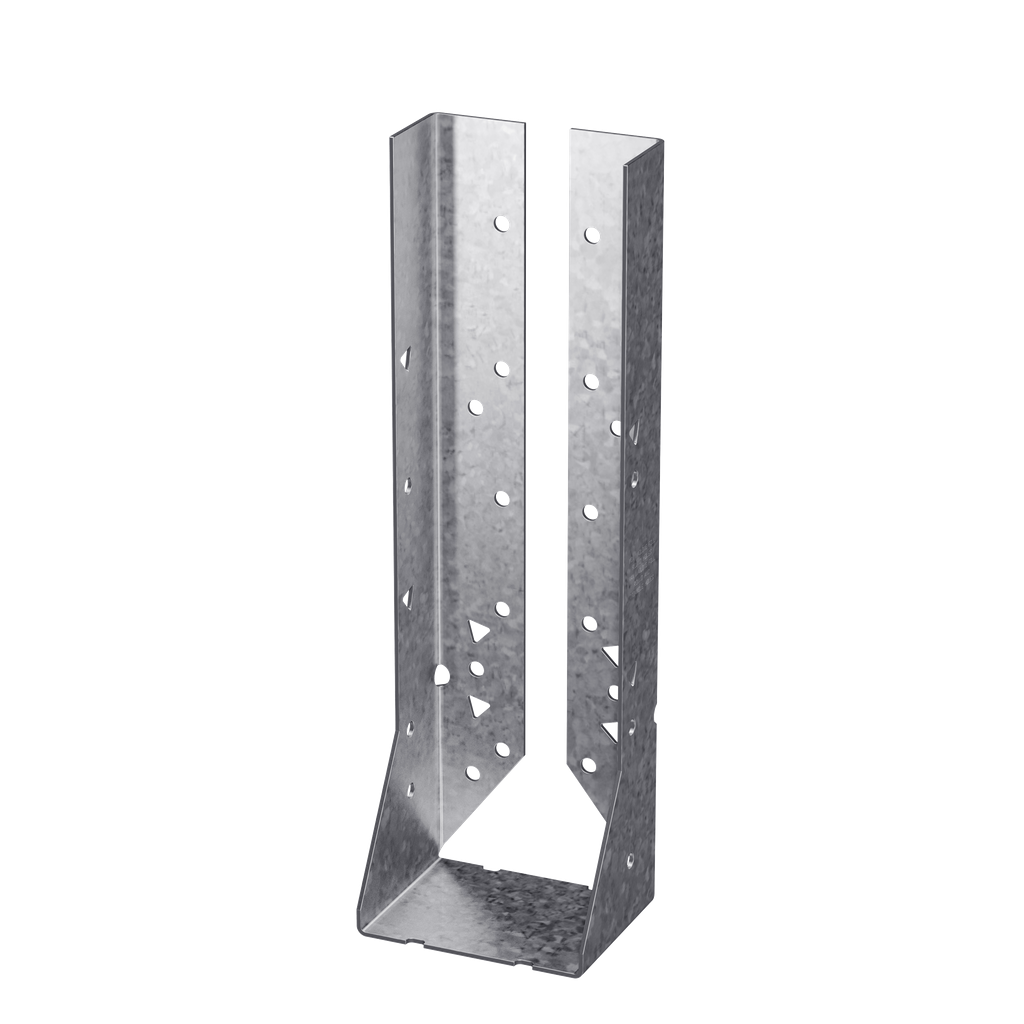

Engineered for reliability and versatility, the HUC-series joist hanger from Simpson Strong-Tie provides an effective solution for securing double 2×12 wood joists to various substrates including wood, masonry, and concrete. Constructed from durable 14-gauge steel and featuring a galvanized coating for enhanced corrosion resistance, this hanger is designed to meet rigorous load requirements and building codes. Its thoughtful design includes optional triangle holes, allowing for additional load support when necessary, making it an excellent choice for both new construction and renovation projects. With a depth of 3.265 inches and a seat width of 3-1/8 inches, this face-mount concealed-flange hanger ensures a secure and sturdy installation for any structural application.
Description
The HUC is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges providing cleaner visible lines in exposed conditions. Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°.
Additional information
| Weight | 1.27 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 3.265 in |
| Nominal Joist Size | Double 2×12 |
