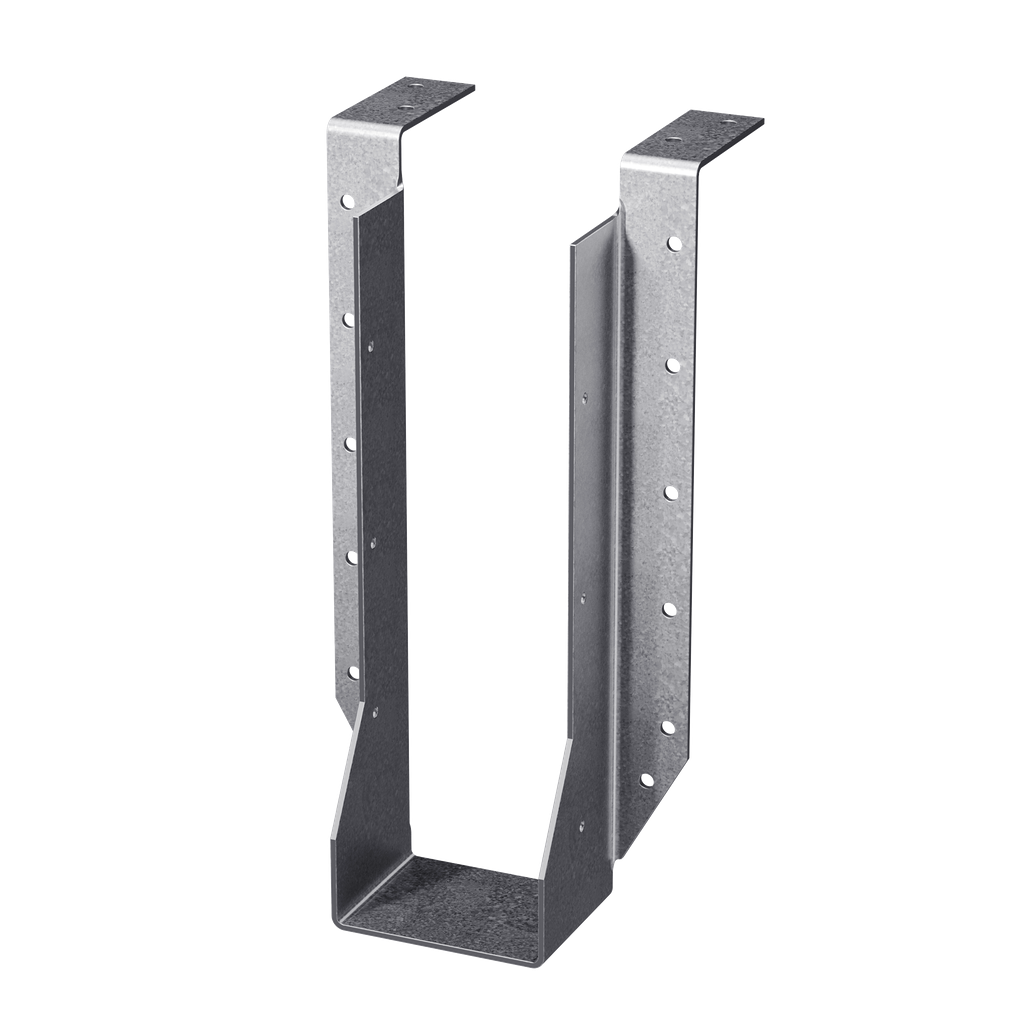

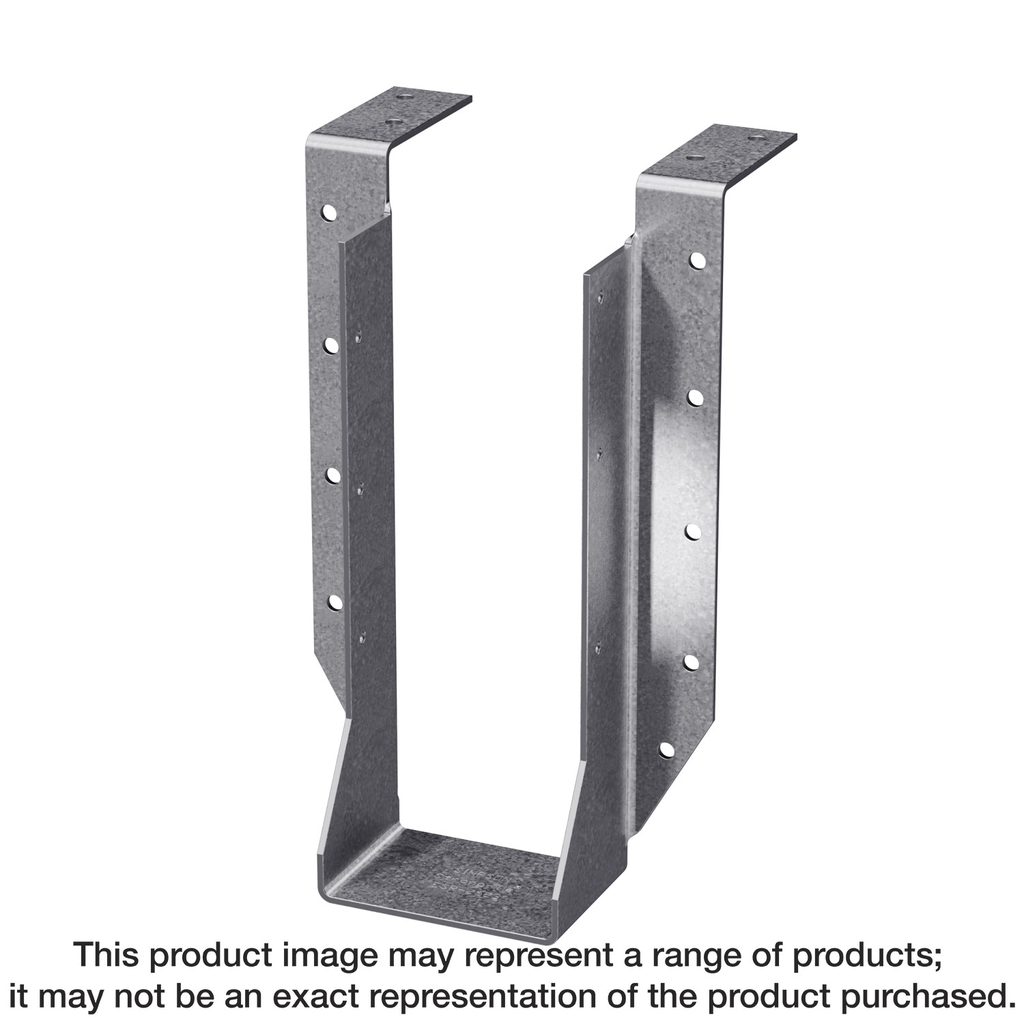

2 X 12 DBL TOP FLANGE FACE MOUNT HANGER
$59.55
Engineered for strength and reliability, this top-flange joist hanger is designed specifically for double 2×12 beams. Crafted from robust 12-gauge steel and finished with a galvanized coating, it offers exceptional corrosion resistance, making it ideal for both indoor and outdoor applications. The innovative design allows for a maximum skew of 45 degrees and a downward slope of the same extent, providing flexibility in installation. With rigorous testing to meet load ratings and ensure code compliance, this joist hanger stands as a dependable solution for your framing needs, delivering both stability and peace of mind.
Description
The HUTF is a hybrid hanger that incorporates the advantages of both face-mount and top-mount hangers. This heavy-duty, top-flange joist hanger features face-nailing that allows the hanger to be securely attached to the member. The HUTF is available with one “A” flange concealed.
Additional information
| Weight | 1.98 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Seat Width | 3-1/8 in. |
| Nominal Joist Size | Double 2×12 |
