2 X 12 TPL CONCEALED TOP FLANGE HANGER
$79.58

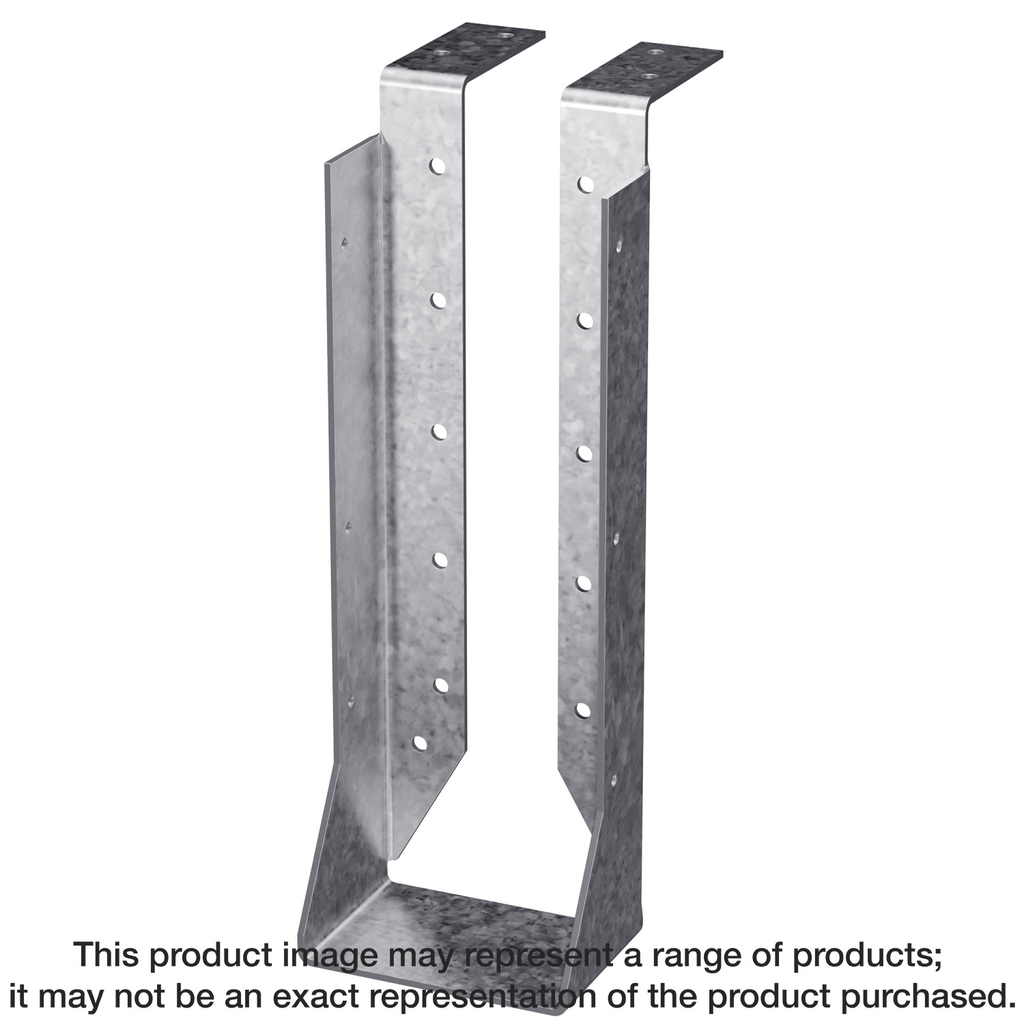

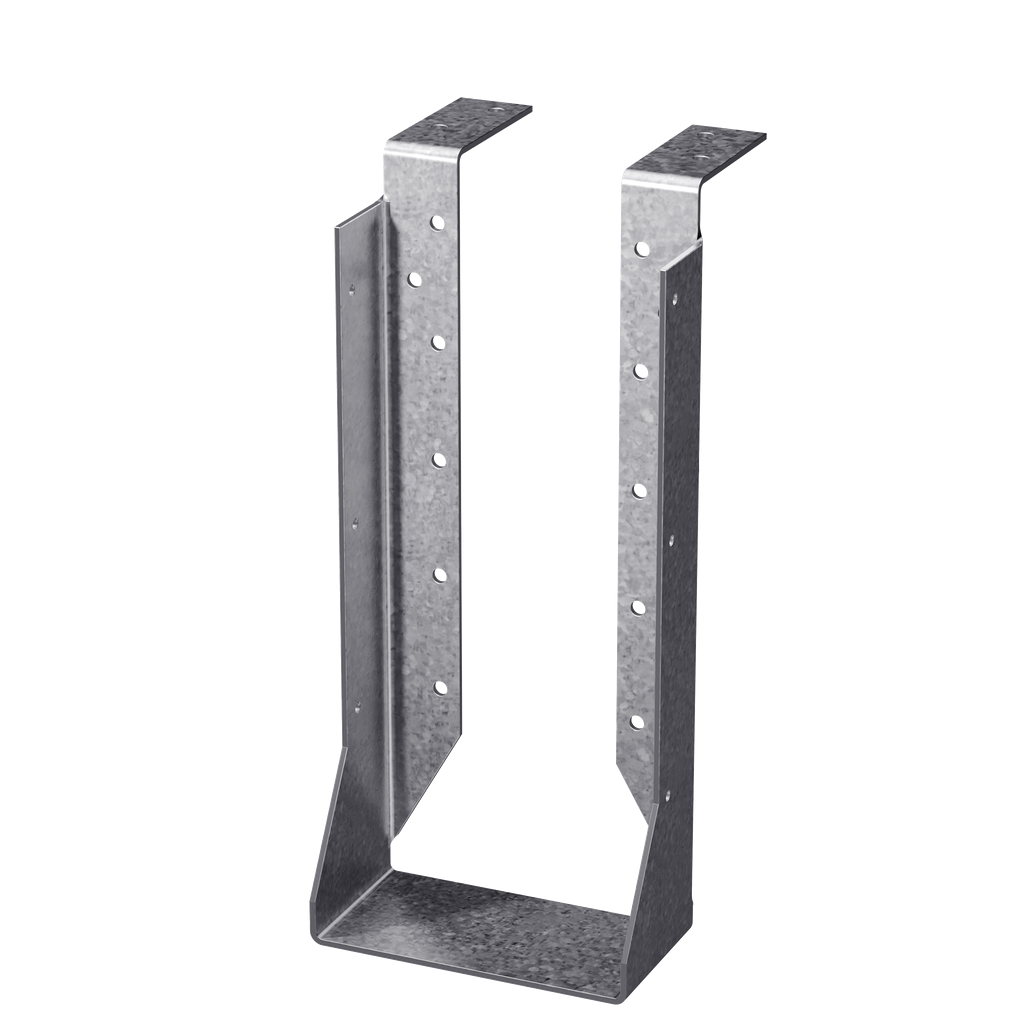

Crafted from robust 12-gauge steel, this galvanized top-flange concealed-flange joist hanger is designed for supporting triple 2×12 beams, ensuring both strength and durability in your construction projects. The HUC212-3TF model allows for a maximum slope of 45 degrees, providing versatility in various applications, though it does not support skew options. Its G90 galvanization offers enhanced corrosion resistance, making it suitable for environments where moisture exposure is a concern. Furthermore, the HUCTF-series hangers are rigorously tested and load-rated, guaranteeing compliance with necessary building codes and providing peace of mind for structural integrity.
Description
The HUCTF is a hybrid hanger that incorporates the advantages of both face-mount and top-mount hangers. This heavy-duty joist hanger is designed with two concealed flanges for end-of-wall or corner installation. The HUCTF features face-nailing that allows the hanger to be securely attached to the member.
Additional information
| Weight | 2.1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Supported Beam Size | Triple 2×12 |
| Depth | 4.8855 in |
