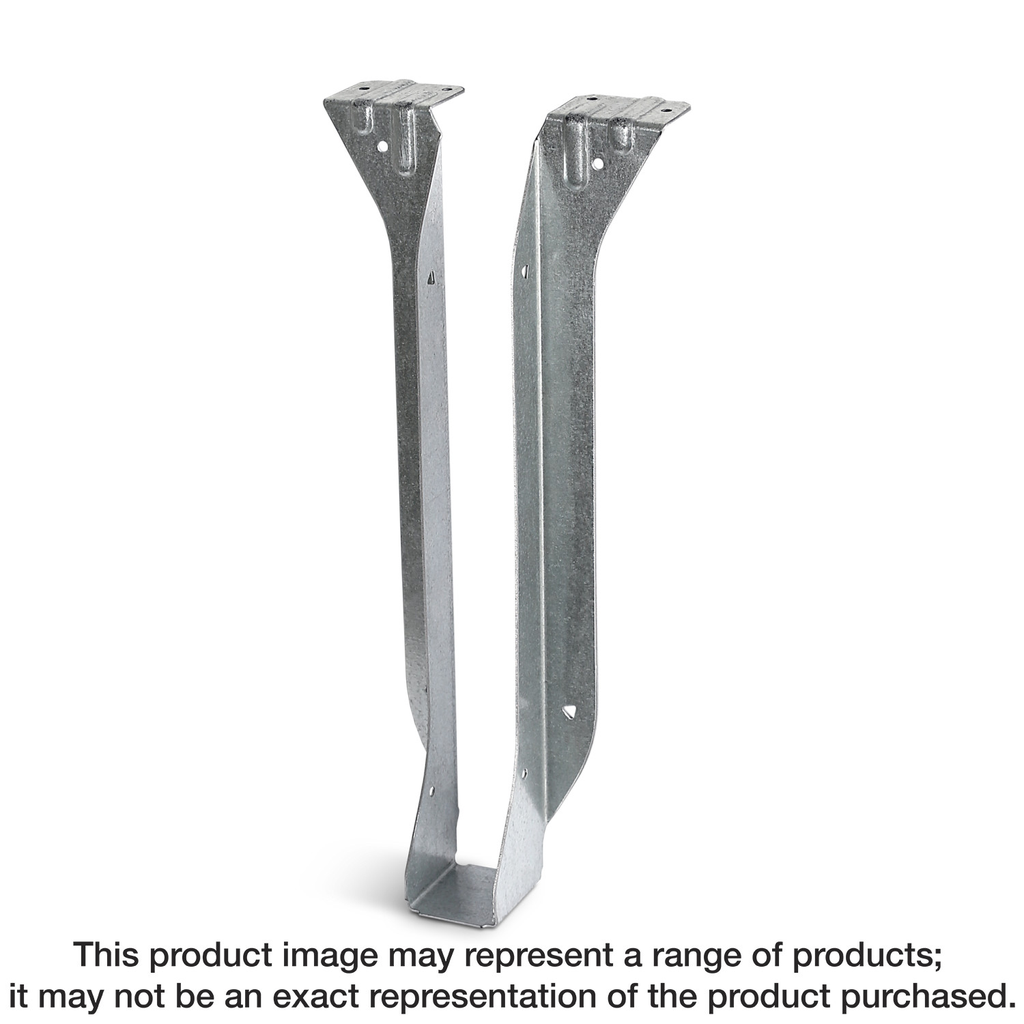

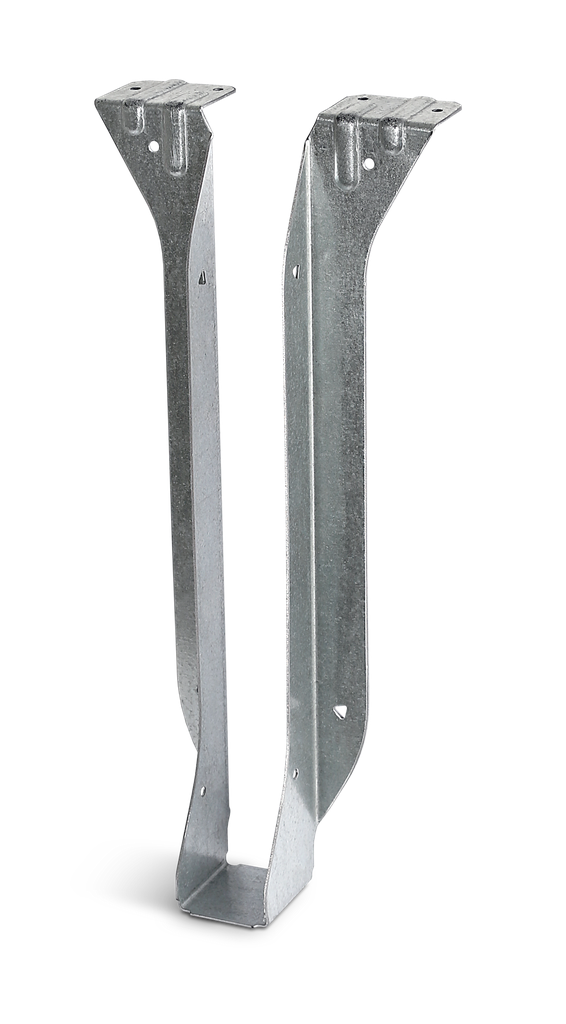

2 X 14 TOP FLANGE HANGER
$7.98
Engineered to deliver robust support for 2×14 joists, the top-flange hanger from Simpson Strong-Tie stands out with its unique two-level embossment, which enhances the stiffness of the top flange and ensures exceptional stability. Constructed from 18-gauge galvanized steel, this hanger is designed to resist corrosion, making it suitable for various applications, especially in environments prone to moisture. It is further fortified to handle increased uplift loads, addressing safety needs in earthquake-prone or high-wind areas. Nail locations are strategically integrated for compatibility with nailers, facilitating easier installation and improved performance, particularly with 2x or 3x nailers, making this a reliable choice for both residential and commercial construction projects.
Description
The JBA is a top-flange hanger for solid sawn lumber applications. This cost-effective hanger is designed to support light-to-medium loads while providing uplift. The JBA also features optional triangular nail holes for maximum nailing to increase allowable loads.
Additional information
| Weight | 0.86 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Joist Size | 2×14 |
| Seat Width | 1-9/16 in. |
