2 X 6 JOIST HANGER SKEWED LEFT ZMAX
$12.43

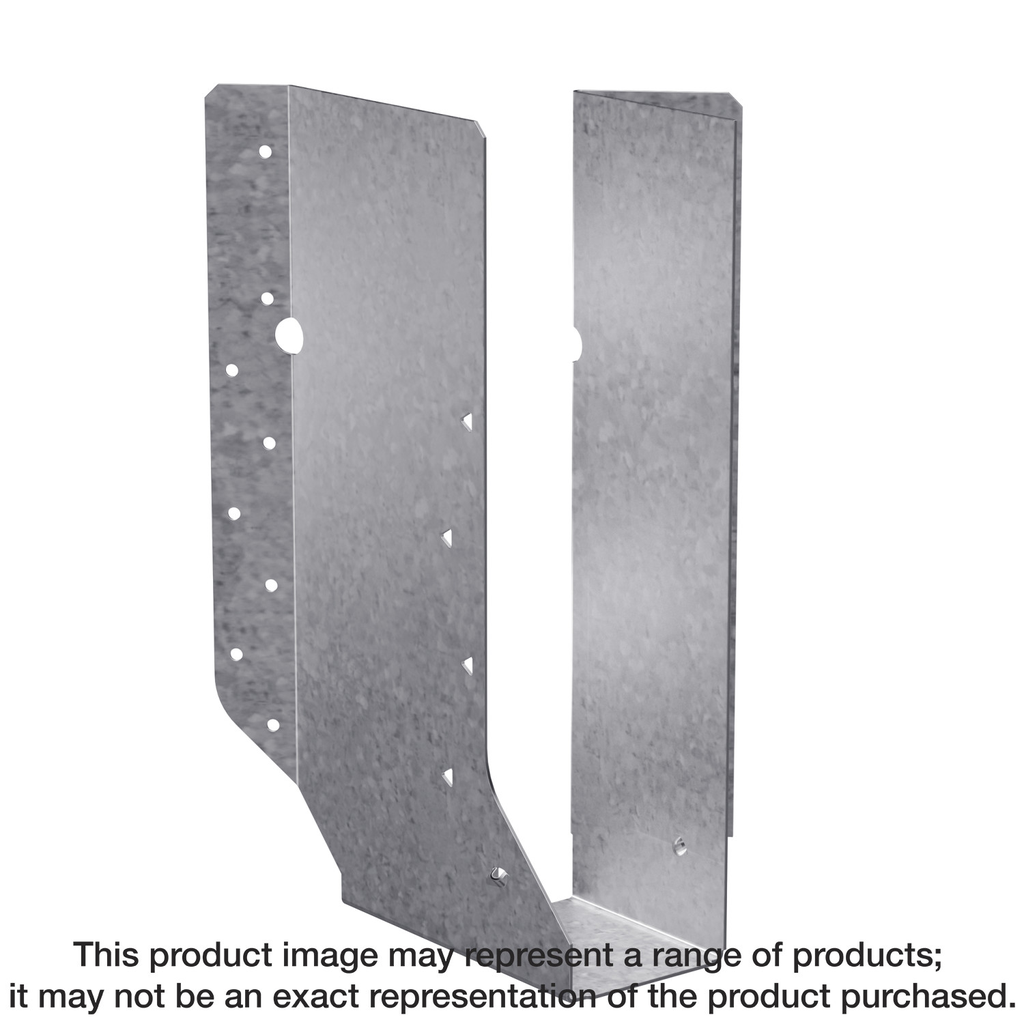

Engineered for reliability in framing applications, the Simpson Strong-Tie SUL26Z Galvanized Joist Hanger is specifically designed to support 2×6 joists with a skewed left orientation. This innovative product features obround nail holes on the acute side, simplifying the installation process by allowing nails to be driven in parallel to the joist. Crafted from 16-gauge steel and coated with ZMAX galvanization, it provides exceptional corrosion resistance, making it ideal for both exterior and treated-wood applications. This joist hanger can accommodate a joist with a skew of 40 to 50 degrees, ensuring versatility in various construction scenarios. Its thoughtful design also includes the option for an acute flange to be turned in, making it suitable for end-of-wall installations with solid sawn sizes.
Description
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The SUR/SUL are 45°-skewed hangers designed to support solid sawn and engineered wood products used in wood construction. These U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation. The SUR and SUL hangers are identical except that they are skewed 45° to the right (SUR) and the left (SUL), respectively.
Additional information
| Weight | 0.64 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Seat Width | 1-9/16 in. |
| Nominal Joist Size | 2×6 or 2×8 |
