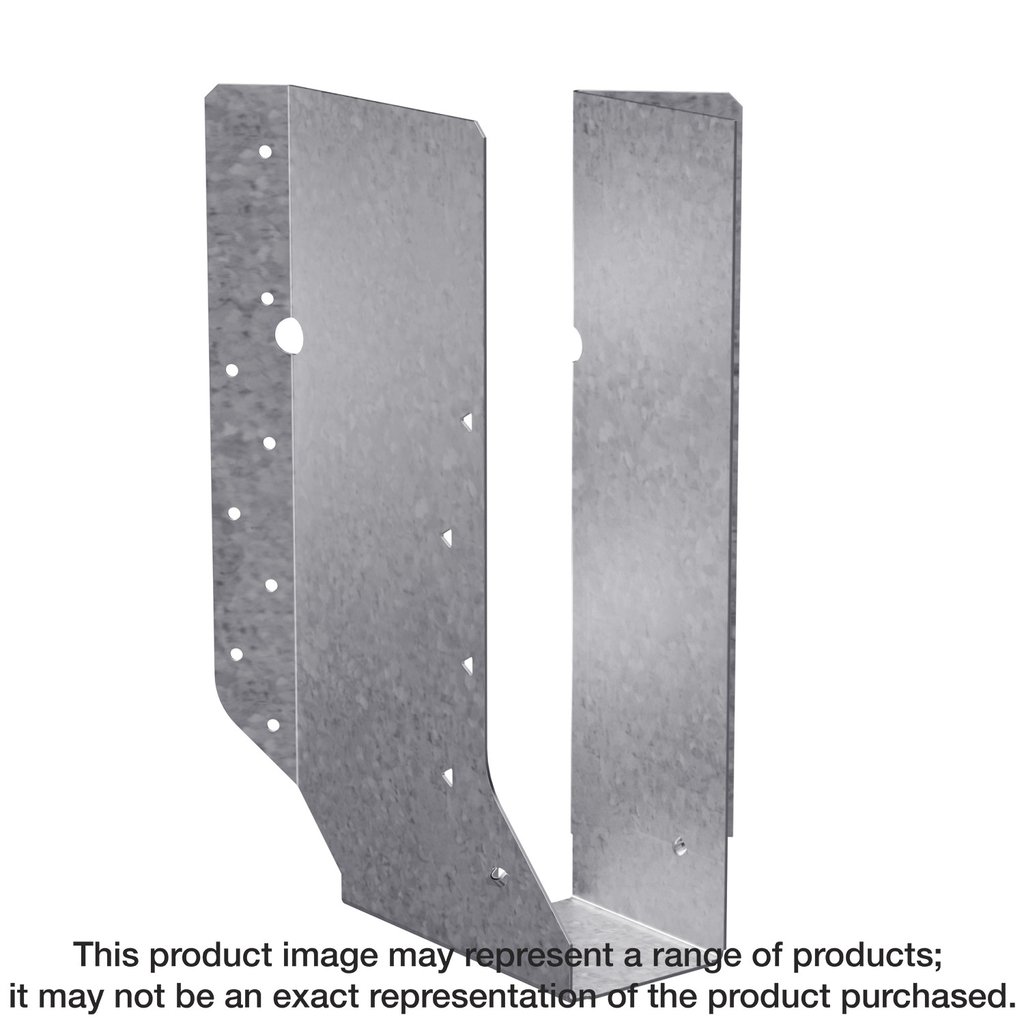

2 X 6 JOIST HANGER SKEWED RIGHT SS
$46.27
Engineered for strength and durability, the stainless-steel joist hanger from Simpson Strong-Tie is designed specifically for 2×6 joists positioned at a skew. With obround nail holes on the acute side, installing nails parallel to the joist is straightforward, ensuring a secure connection. This model accommodates joists skewed at angles between 40° to 50°, while its robust 16-gauge steel construction provides excellent corrosion resistance, making it ideal for both exterior and treated-wood applications. Additionally, the hanger features an acute flange that can be positioned inward to facilitate end-of-wall installations for solid sawn sizes, enhancing its versatility in various projects.
Description
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The SUR/SUL are 45°-skewed hangers designed to support solid sawn and engineered wood products used in wood construction. These U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation. The SUR and SUL hangers are identical except that they are skewed 45° to the right (SUR) and the left (SUL), respectively.
Additional information
| Weight | 0.64 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Joist Size | 2×6 or 2×8 |
| Seat Width | 1-9/16 in. |
