2 X 6 TPL CONCEALED FACE MOUNT HANGER
$26.80

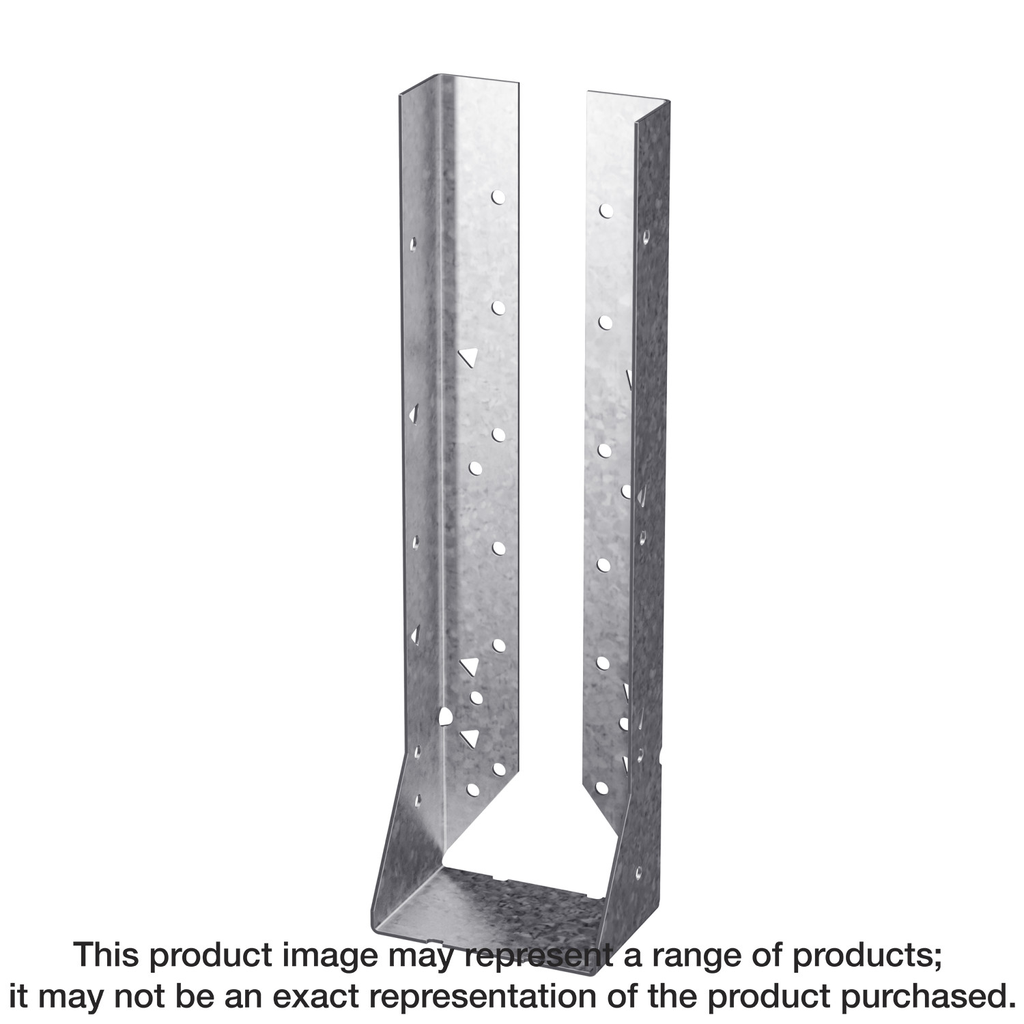

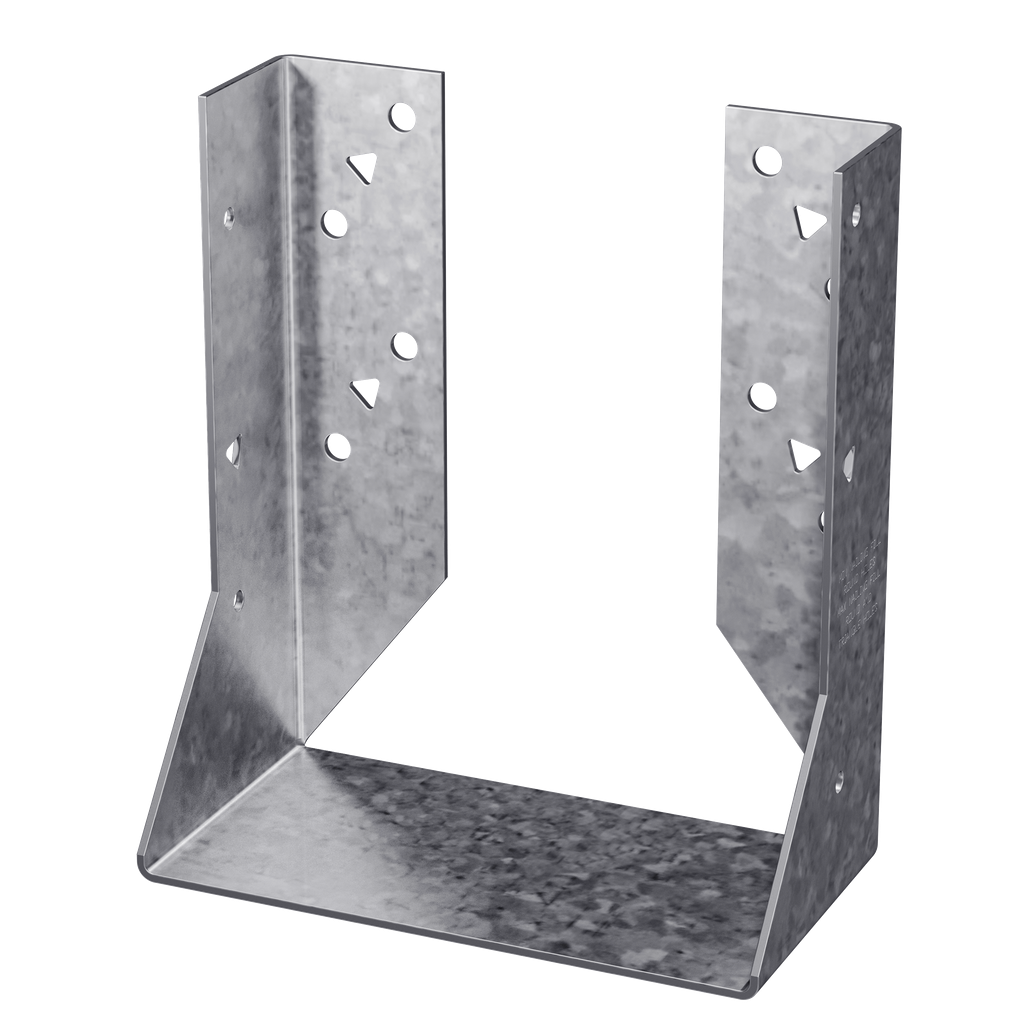

Built for exceptional strength and reliability, the Simpson Strong-Tie HUC26-3 Galvanized Face-Mount Concealed-Flange Joist Hanger is engineered specifically for triple 2×6 configurations. Crafted from durable 14-gauge steel, this hanger features optional triangle holes for added load capacity, ensuring a secure installation that meets rigorous load requirements. Its versatile design allows for connections to wood, masonry, and concrete, making it a highly adaptable choice for various construction projects. With a galvanized finish (G90) for enhanced corrosion resistance, this joist hanger not only conforms to testing and building codes but also provides a long-lasting solution for robust framing applications.
Description
The HUC is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges providing cleaner visible lines in exposed conditions. Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°.
Additional information
| Weight | 0.84 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Seat Width | 4-11/16 in. |
| Nominal Joist Size | Triple 2×6 |
