2 X 8 DBL SHEAR FACE MOUNT HANGER ZMAX
$2.25

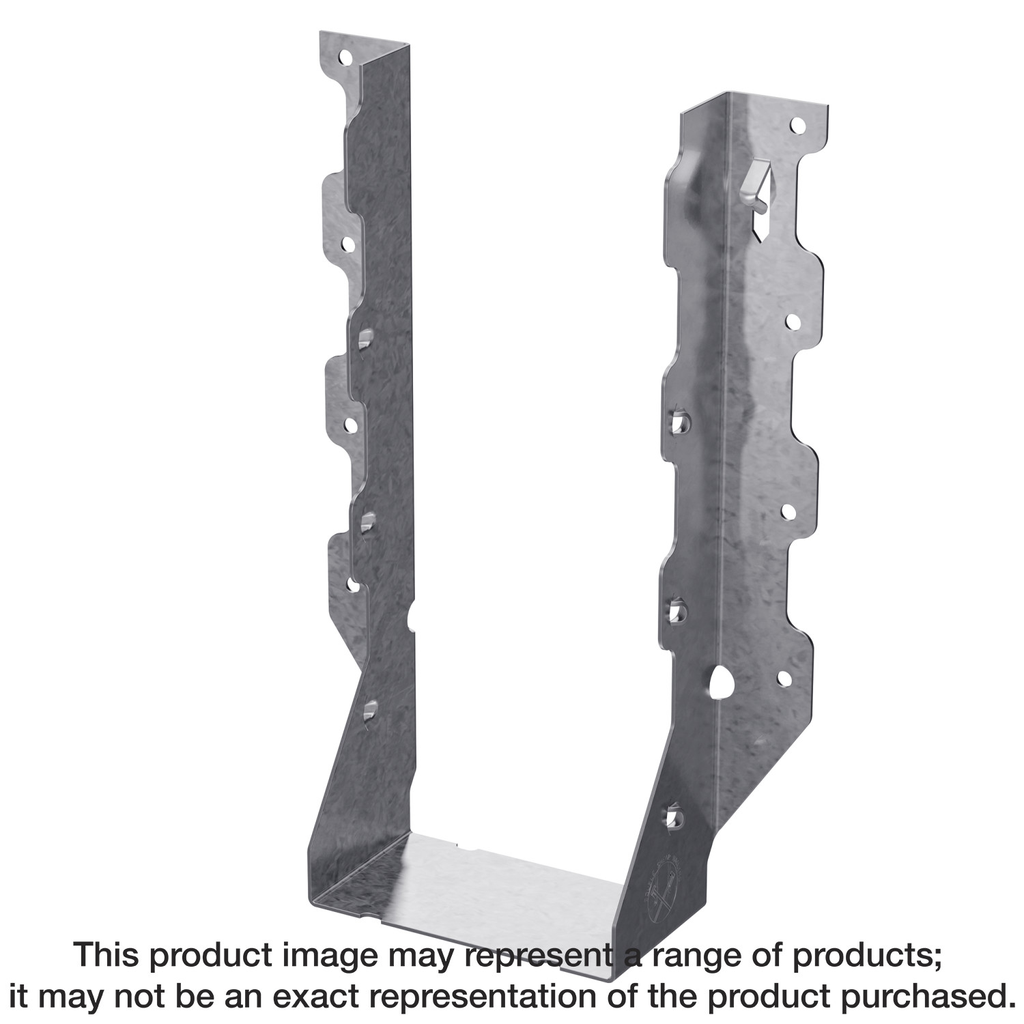

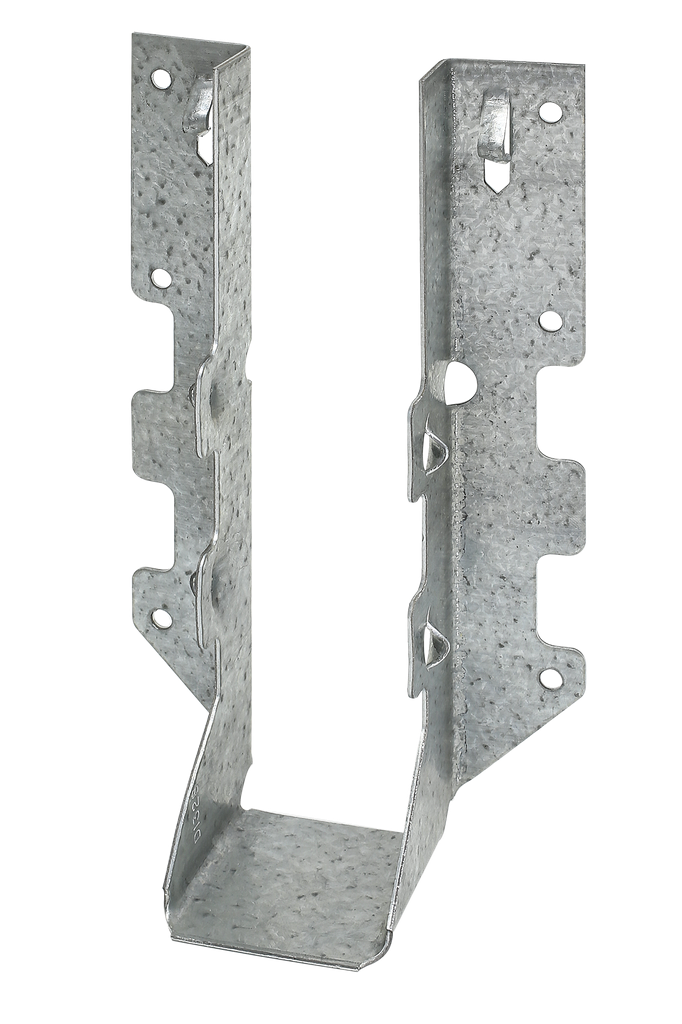

Engineered for strength and versatility, the LUS28Z is a face-mount joist hanger designed specifically for 2×8 and 2×10 lumber. With its patented double-shear nailing design, this joist hanger provides enhanced structural integrity using fewer nails, making it a dependable choice for various applications. Crafted from 18-gauge steel and featuring ZMAX galvanization, it offers superior corrosion resistance, ensuring longevity in both exterior settings and with treated wood. Installation is streamlined with speed prongs that facilitate quick setup, while the angled joist nailing design allows for easier access in tight spaces. Whether for new builds or renovations, this joist hanger is a robust solution for securely supporting your projects.
Description
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.
Additional information
| Weight | 0.353 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Joist Size | 2×8 and 2×10 |
| Depth | 3.6585 in |
