24IN FLOOR-TO-FLOOR TAKE UP SCREW KIT/25
$314.27

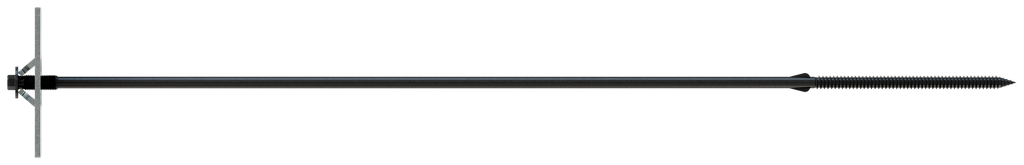

Engineered for efficient performance in floor-to-floor connections, the Simpson Strong-Drive® SDWF FLOOR-TO-FLOOR Screw is a robust solution that simplifies installation while enhancing structural integrity. This 0.270 inch by 24 inch screw comes with accompanying TUW take-up washers and a hex driver bit, making it incredibly user-friendly by providing all required installation hardware in one kit. Its innovative design features shrinkage compensation, ensuring a secure fit as the materials settle over time, while the electrocoated finish allows for use in dry, low-corrosion environments. Additionally, the ability to install from within the structure adds a layer of safety by reducing the need for external work, further streamlining the construction process.
Description

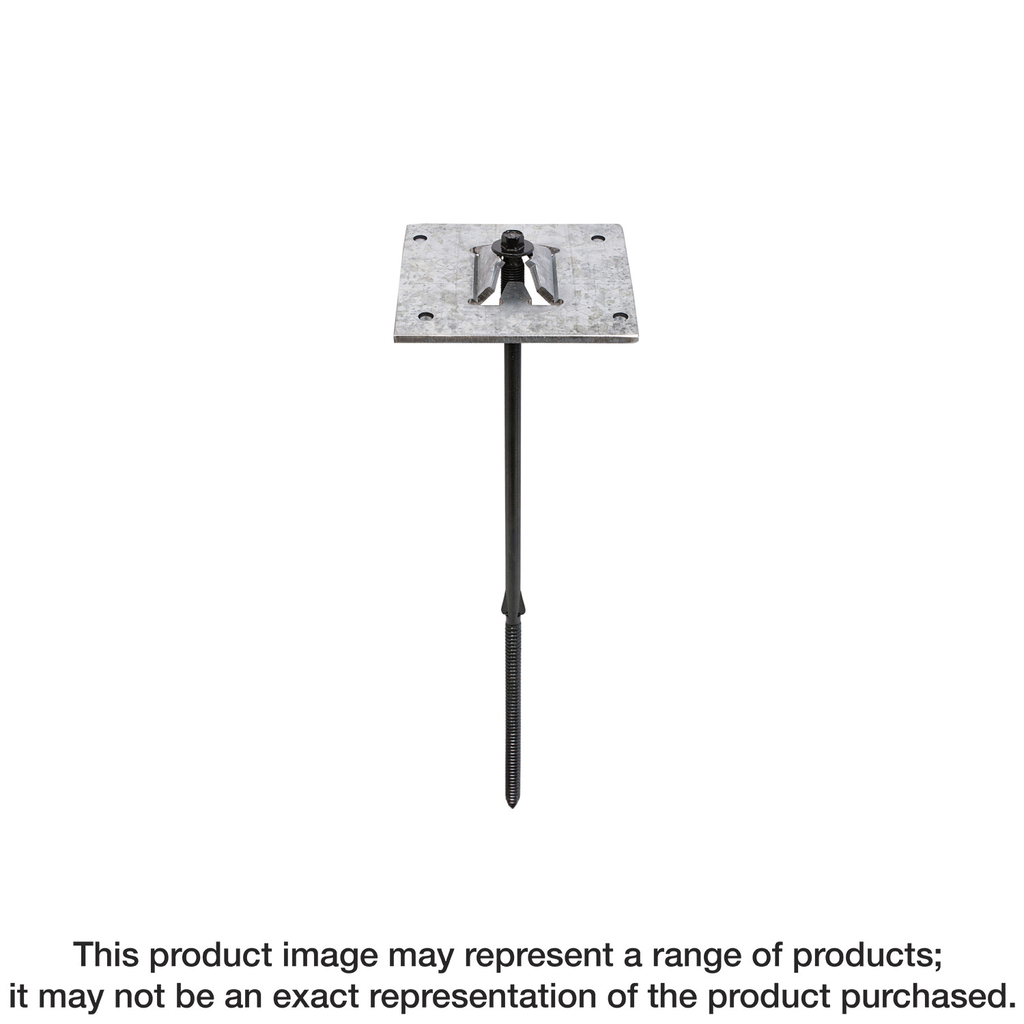

The Strong-Drive SDWF Floor-to-Floor screw is designed to simplify the wind-uplift restraint connection while providing superior performance over the life of the structure. The unique design of the SDWF enables it to attach upper and lower walls together from the top, spanning the floor system and providing an easy-to-install connection within the continuous uplift load path of the structure. The innovative Take-Up Washer (TUW) plays a key role in the long-term performance of the SDWF when installed between the screw head and the sole plate of the upper floor.
Additional information
| Weight | 22 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 0.730 in |
| Length | 24 in |
