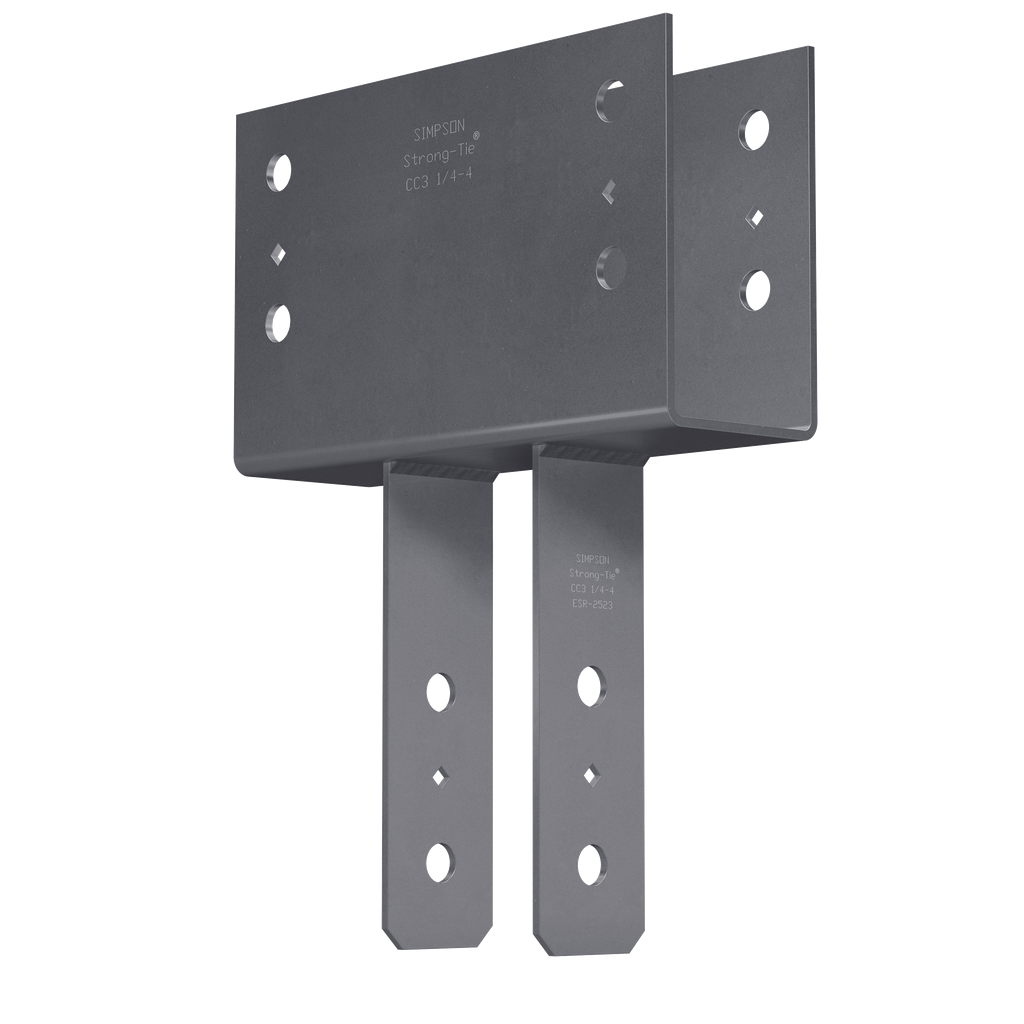

3-1/8″ BEAM, 4X POST COLUMN CAP
$145.82
Specifically engineered for rugged durability and structural integrity, this column cap enhances the performance of your 3-1/8 inch beams paired with 4x posts. Crafted from robust 7-gauge steel and featuring certified welds, this component instills confidence in its strength and loading capabilities. The innovative design includes diamond holes that facilitate temporary fastening while adhering to NDS code requirements for bolt spacing, ensuring optimal load performance. Additionally, this column cap is engineered to withstand increased uplift loads, making it an ideal choice for areas prone to earthquake or wind activities, all finished with a reliable Simpson Strong-Tie gray paint finish for enhanced longevity.
Description
The CC is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The CC helps to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 11.56 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Beam Width | 3-1/8 in. |
| Load Capacity | Increased Uplift Loads for Earthquake or Wind |
