3-1/8″ BEAM, 6X POST COLUMN CAP
$145.82

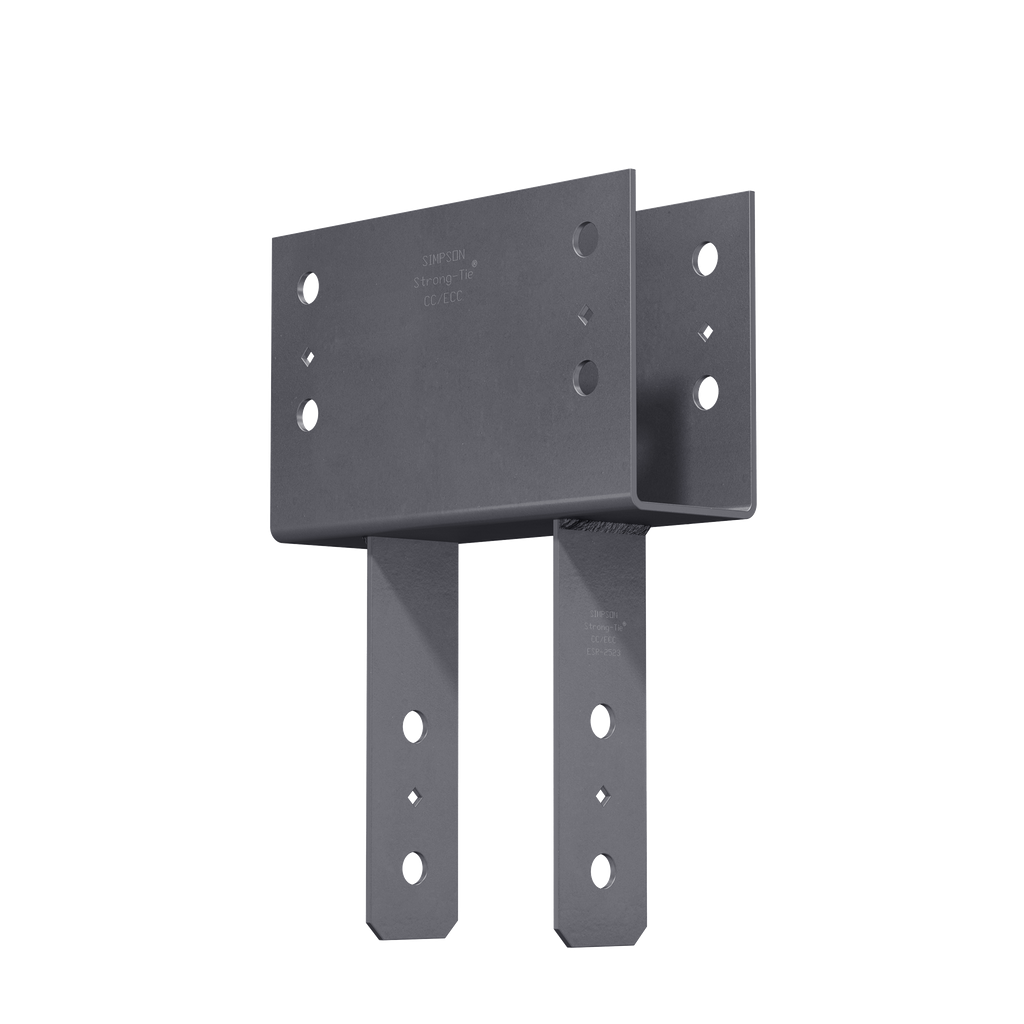

Engineered for robust structural integrity, the CC3 column cap from Simpson Strong-Tie is expertly crafted from durable 7-gauge steel, ensuring reliable performance in demanding applications. Featuring diamond holes, this cap allows for secure temporary fastening during installation, while certified welds provide added assurance in its strength and load-bearing capabilities. Designed to meet both uplift requirements for earthquake and wind loading, as well as NDS code specifications for optimal bolt spacing, this component showcases a reliable gray paint finish that enhances its resilience. Ideal for applications involving 3-1/8 inch beams and 6x nominal posts, the CC3 is a vital element for building confidence into any construction project.
Description
The CC is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The CC helps to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 11.56 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Beam Width | 3-1/8 in. |
| Nominal Post Size | 6x |
