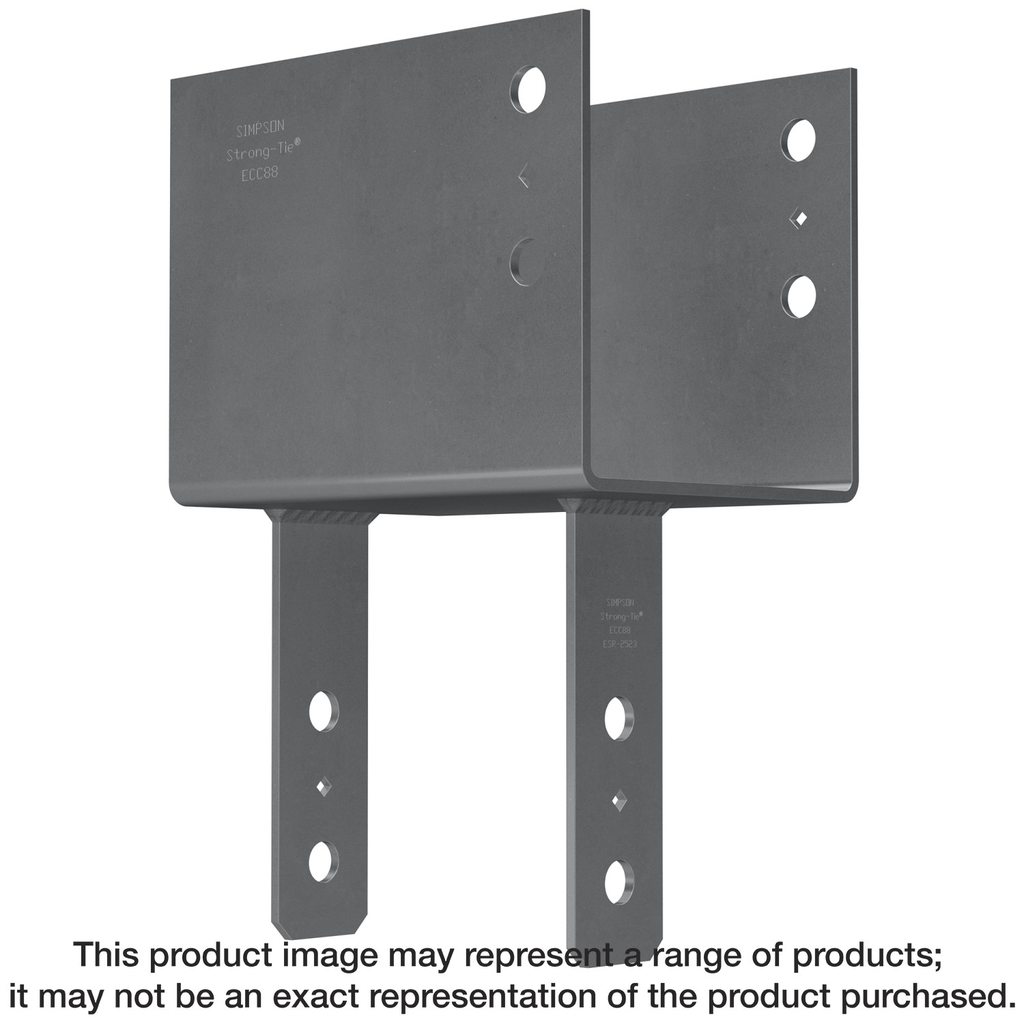

3-1/8″ BEAM, 6X POST ECC
$145.82
Engineered for robust structural support, the ECC End Column Cap is an essential component for any building project involving 6x posts and 3-1/8 inch beams. Crafted from durable 7-gauge steel, it features a sophisticated gray paint finish that not only enhances its aesthetics but also contributes to long-lasting performance. This column cap is designed with certified welds, assuring users of its strength and load-bearing capabilities, particularly during challenging conditions like earthquakes or high winds. Additionally, the incorporation of diamond holes allows for temporary fastening, while the carefully spaced bolts meet NDS code requirements to ensure optimal performance throughout its application. Trust in this innovative solution from Simpson Strong-Tie to provide the dependable support your project demands.
Description
The ECC is designed to provide strong column-beam connections in end-of-beam applications in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond the one side of the column. The ECC helps to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 8.7 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Beam Width | 3-1/8 in. |
| Nominal Post Size | 6x |
