3-1/8in BEAM, 4X POST HDG 2.5in SDS
$195.25

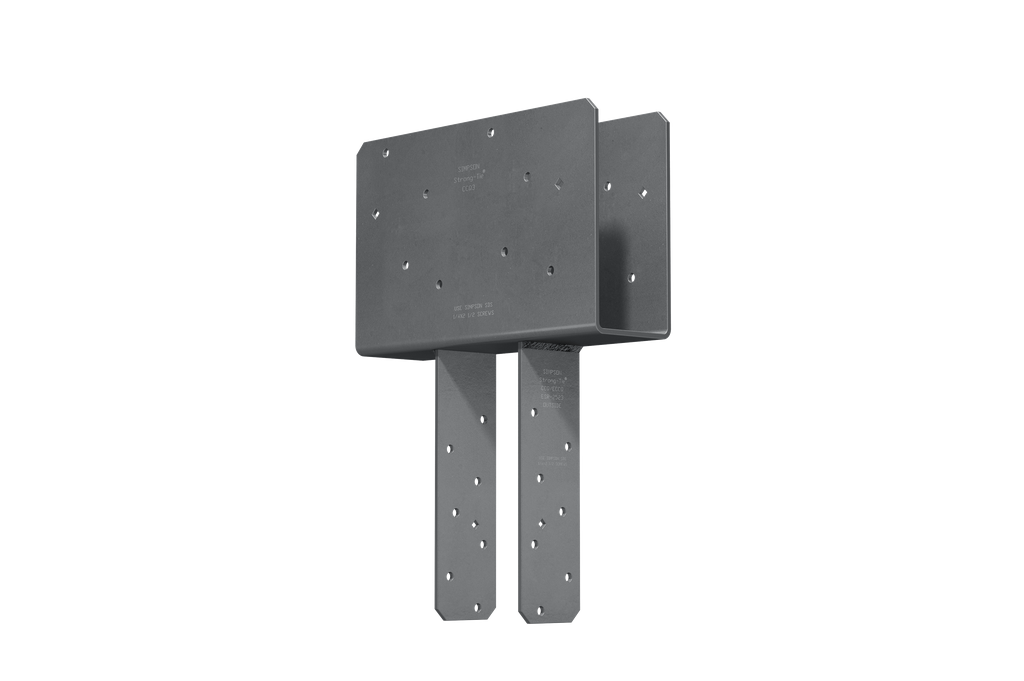

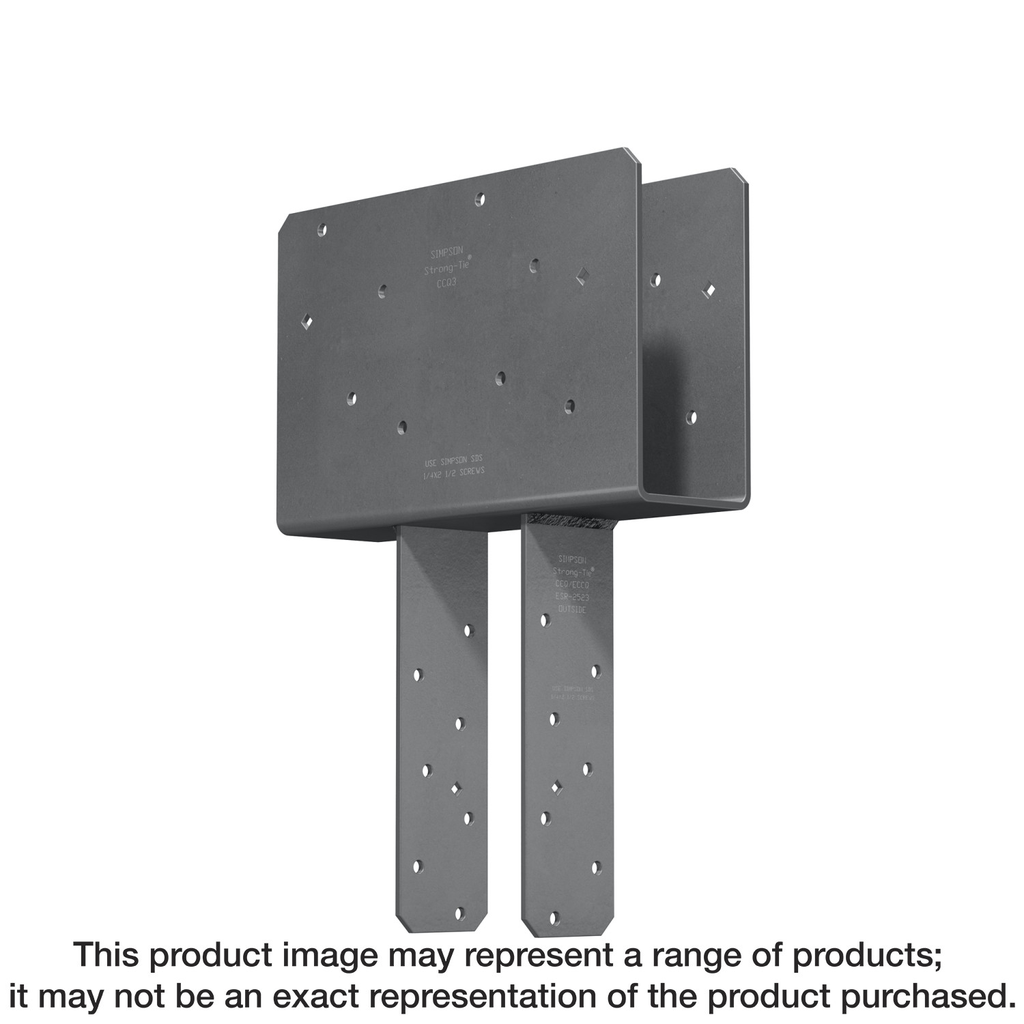

Engineered for superior durability and reliability, the CCQ™ HDG Column Cap by Simpson Strong-Tie is a robust solution designed for 3-1/8 inch beams and 4x posts. Constructed from high-strength 7-gauge steel, this cap is not only built to handle uplift loads under earthquake or wind conditions but also features hot-dip galvanization, providing exceptional corrosion resistance ideal for exterior and treated-wood applications. The innovative design includes SDS screws, which offer a lower profile compared to standard through bolts, further enhancing the overall aesthetic and functionality. Additionally, diamond holes allow for temporary fastening, and certified welds ensure that you can trust in the strength and performance of this component. With these features, this column cap is a reliable choice for building sturdy structures that stand the test of time.
Description
The CCQ is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The extended bearing surface helps distribute the load from the beam and provide support for the connection. The CCQ uses Strong-Drive® SDS Heavy-Duty Connector screws for fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails.
Additional information
| Weight | 10.65 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Beam Width | 3-1/8 in. |
| Depth | 3.599 in |
