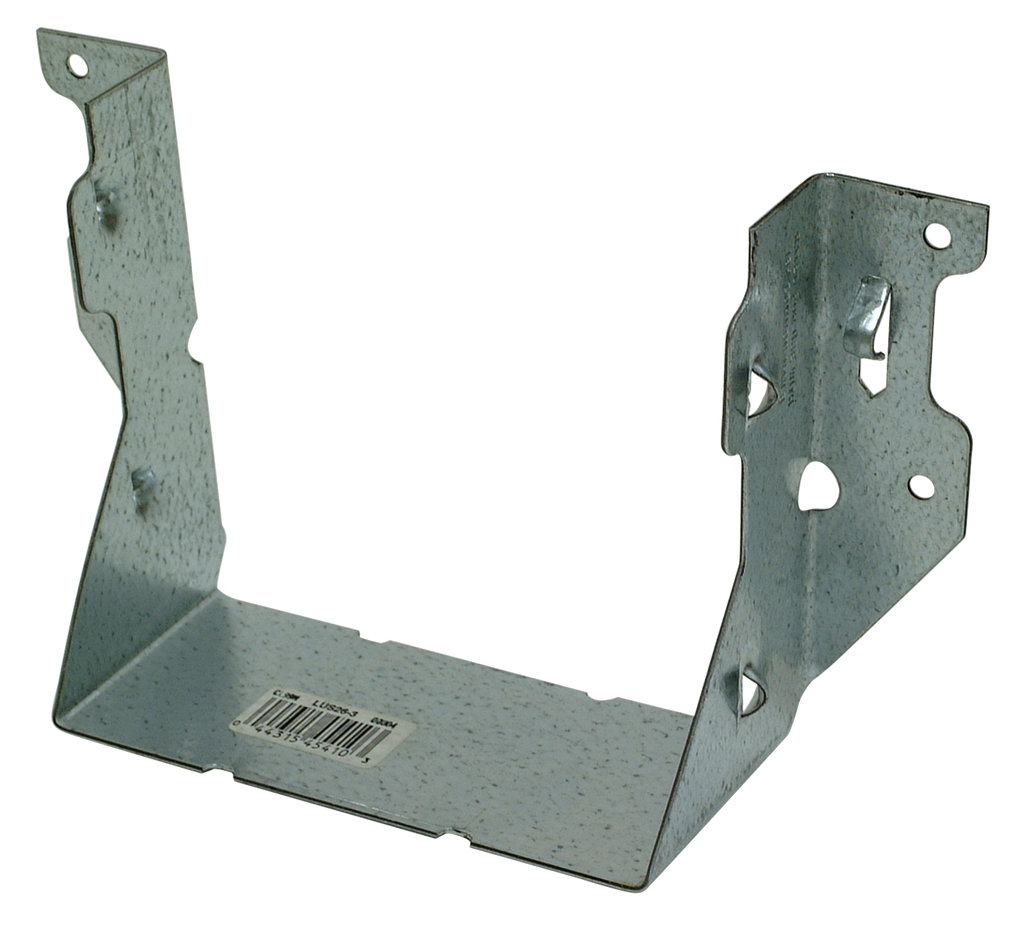

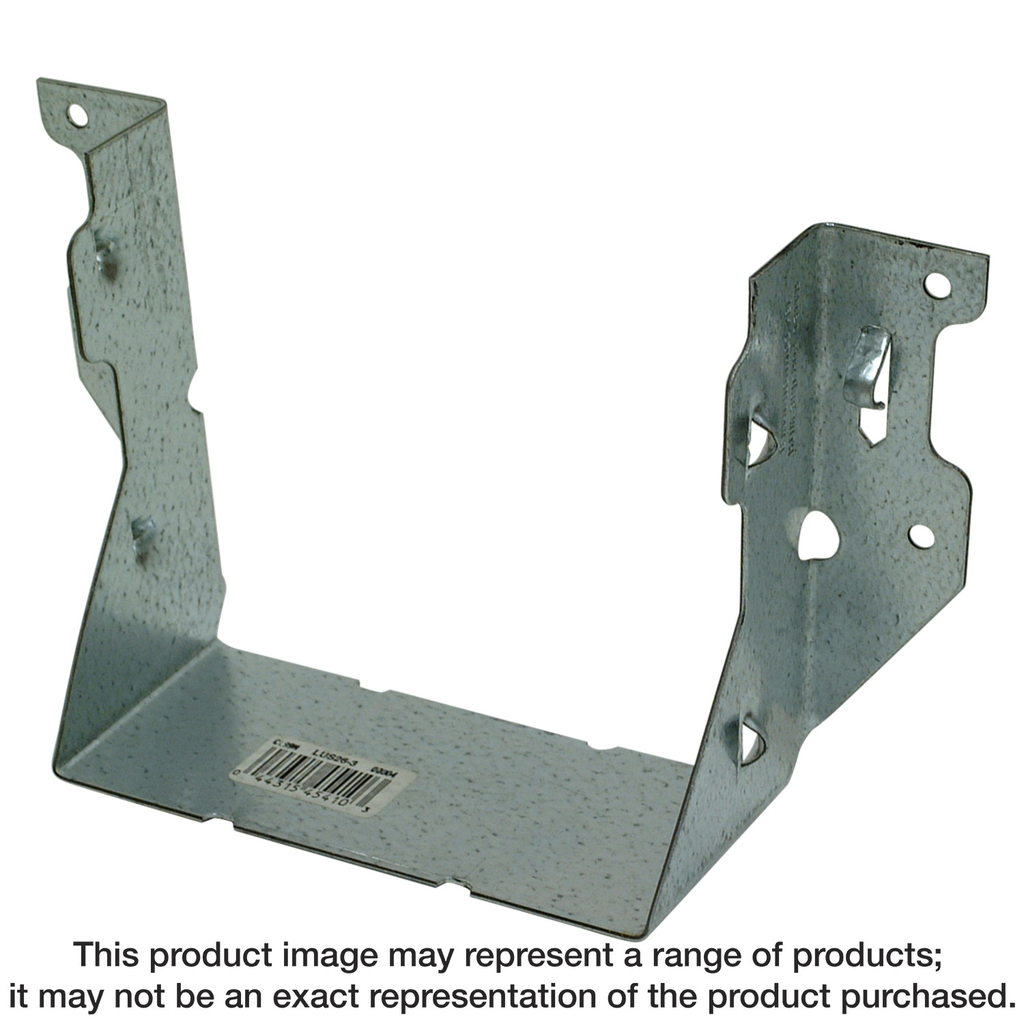

3-2×6 DBL SHEAR FACE MOUNT HANGER
$6.18
Constructed for superior performance and durability, this face-mount joist hanger is engineered to support triple 2×6 joists with confidence. Made from robust 18-gauge steel and finished with galvanized coating for enhanced corrosion resistance, the design incorporates patented double-shear nailing technology, which allows for greater strength using fewer nails. The addition of speed prongs simplifies installation, enabling users to secure the hanger quickly, even in tight spaces where angled joist nailing presents challenges. Overall, this reliable hardware solution emphasizes stability and efficiency, making it an essential component for any construction project.
Description
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.
Additional information
| Weight | 0.36 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Joist Size | Triple 2×6 |
| Depth | 6.842 in |
