3/4 X 18IN ATR W/2-1/4×2-1/4×3/8IN WASH
$39.26
Engineered for maximum reliability and strength, the high-strength preassembled anchor bolt from Simpson Strong-Tie is an essential component for a variety of construction applications. Measuring 3/4 inch in diameter and 18 inches in length, this robust anchor bolt is crafted from ASTM A449 steel, ensuring it can withstand demanding conditions with a tensile strength of 120 ksi. Featuring a head stamp that signifies the quality and performance symbolism of the “No Equal” mark, this anchor bolt is designed to provide an optimal hold through its high-strength design. Available in a range of diameters and lengths, it is a versatile choice that meets diverse anchoring needs in building projects.
Description

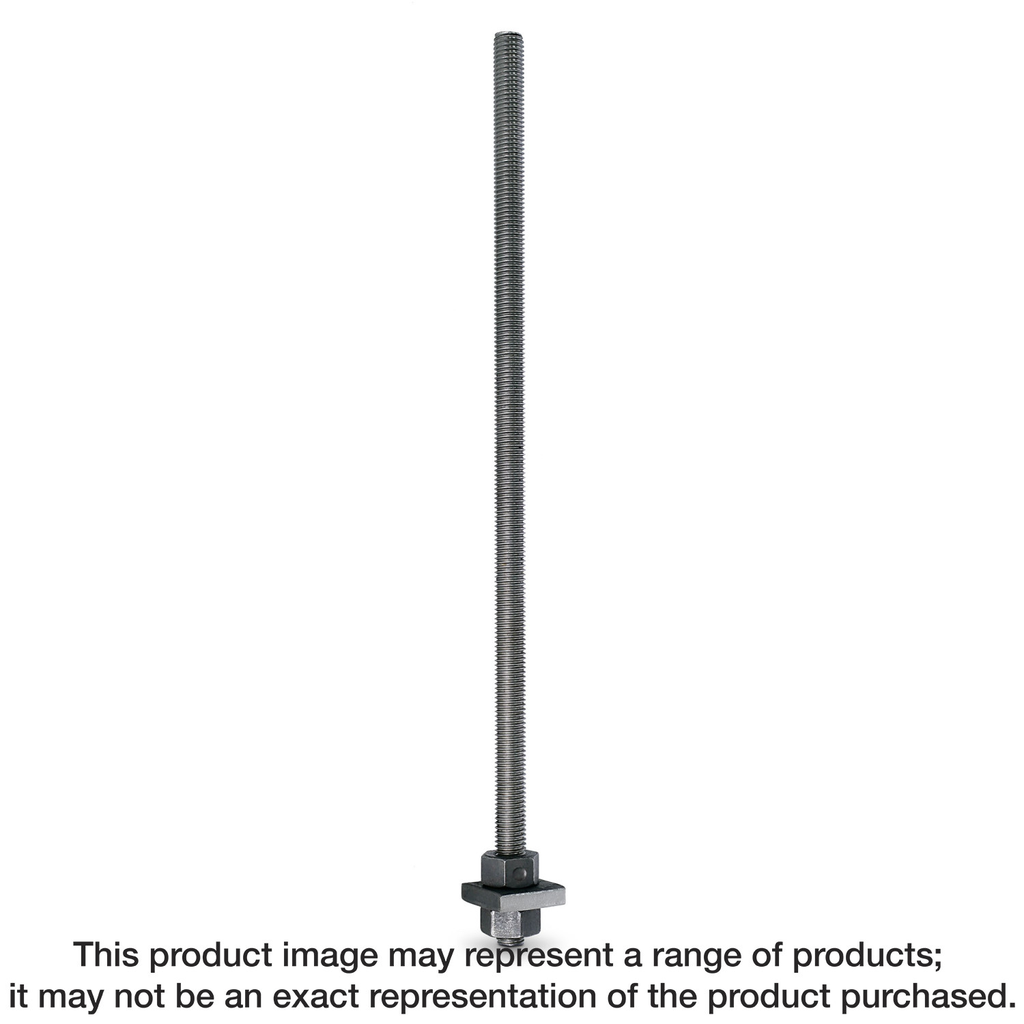

The Simpson Strong-Tie® PAB™ anchor bolt is a versatile cast-in-place anchor bolt ideal for high-tension-load applications, such as rod systems and shearwalls. It features a plate washer at the embedded end, sandwiched between two fixed hex nuts. The PAB also has a head stamp for easy identification after the pour.
Additional information
| Weight | 2.67 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Material | Steel — ASTM A449; Fu = 120 ksi |
| Diameter | 3/4 in. |
