3/4 X 30IN ATR W/2-1/4×2-1/4×3/8IN WASH
$58.38
Constructed with high-quality steel to meet ASTM A449 standards, this preassembled anchor bolt is designed for strength and reliability in various structural applications. Measuring 30 inches in length and featuring a robust 3/4-inch diameter, the anchor ensures a secure hold that withstands heavy loads, making it a dependable choice for builders and contractors. Each bolt is marked with the “No Equal” insignia, indicating its superior performance and strength characteristics, suitable for both residential and commercial projects. With the versatility of diameters from 1/2 inch to 1-1/4 inch and lengths ranging from 12 inches to 36 inches, this anchor bolt meets diverse construction needs, providing peace of mind in any assembly.
Description

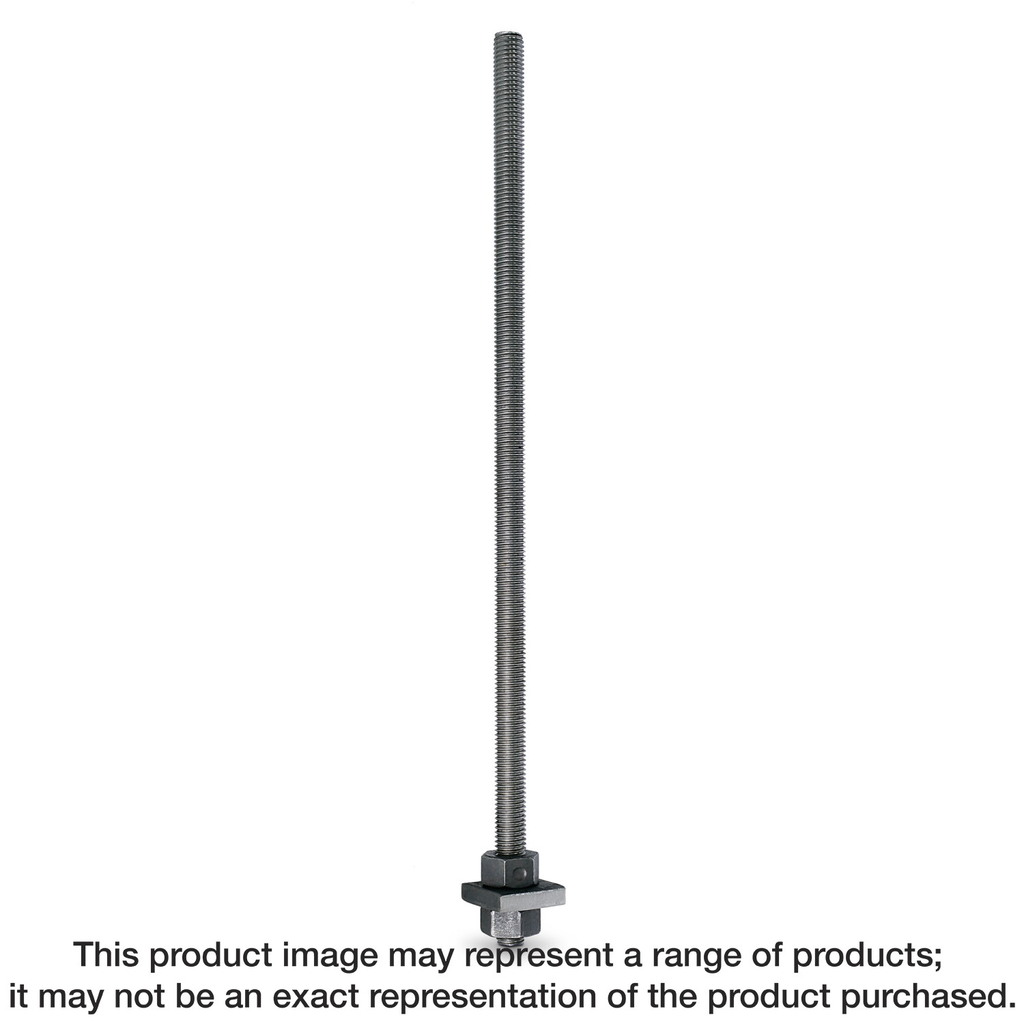

The Simpson Strong-Tie® PAB™ anchor bolt is a versatile cast-in-place anchor bolt ideal for high-tension-load applications, such as rod systems and shearwalls. It features a plate washer at the embedded end, sandwiched between two fixed hex nuts. The PAB also has a head stamp for easy identification after the pour.
Additional information
| Weight | 3.91 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Length | 30 in |
| Diameter | 3/4 in. |
