3/4 X 36IN ATR W/2-1/4×2-1/4×3/8IN WASH
$61.29
Engineered for superior performance, this high-strength preassembled anchor bolt from Simpson Strong-Tie is designed to provide optimal anchoring solutions for your construction needs. With a robust diameter of 3/4 inch and a length of 36 inches, it ensures exceptional load-bearing capabilities, making it suitable for a variety of applications. The anchor bolt features a head stamp that includes the recognized “No Equal” sign and diameter designation, a testament to its quality and reliability. Manufactured from high-strength steel in accordance with ASTM A449 standards, this product promises durability and resilience under pressure, essential for both structural integrity and safety in your projects.
Description

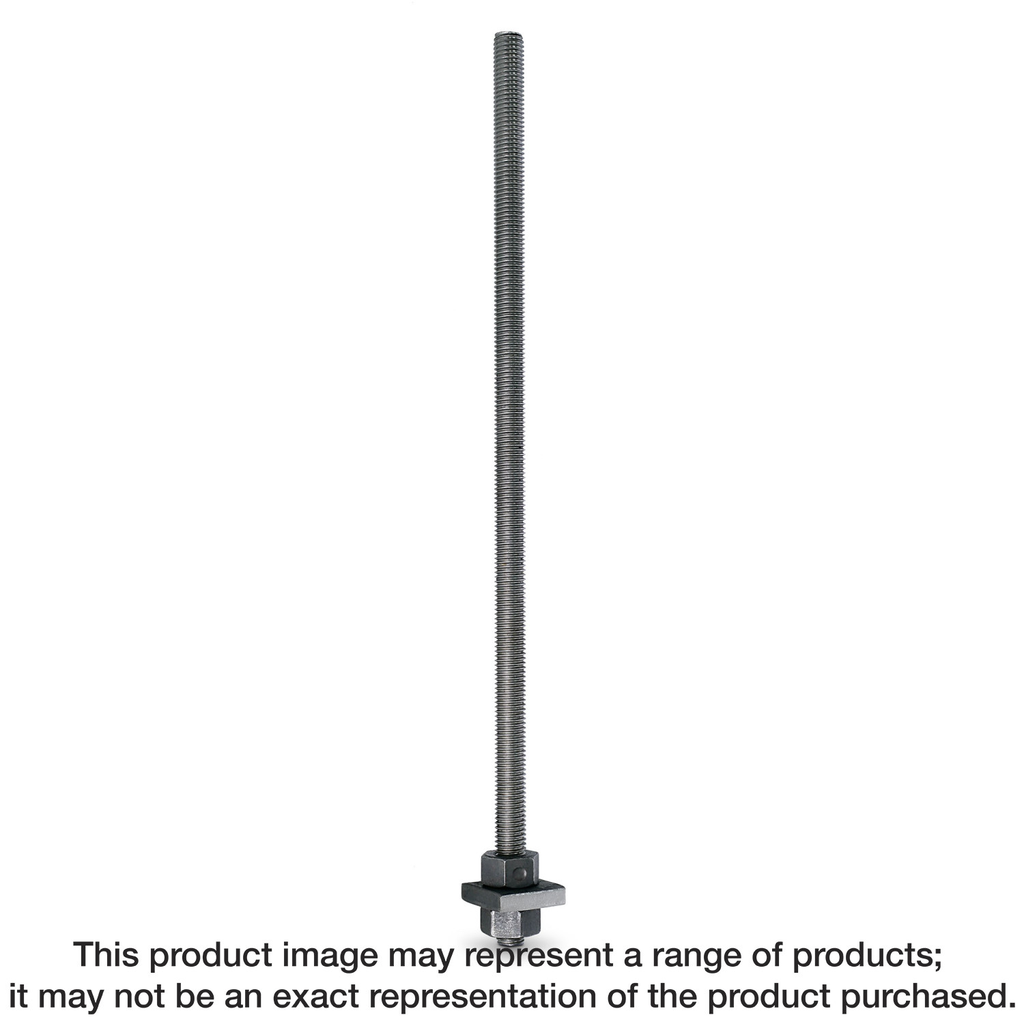

The Simpson Strong-Tie® PAB™ anchor bolt is a versatile cast-in-place anchor bolt ideal for high-tension-load applications, such as rod systems and shearwalls. It features a plate washer at the embedded end, sandwiched between two fixed hex nuts. The PAB also has a head stamp for easy identification after the pour.
Additional information
| Weight | 4.52 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Material | Steel — ASTM A449; Fu = 120 ksi |
| Length | 36 in |
