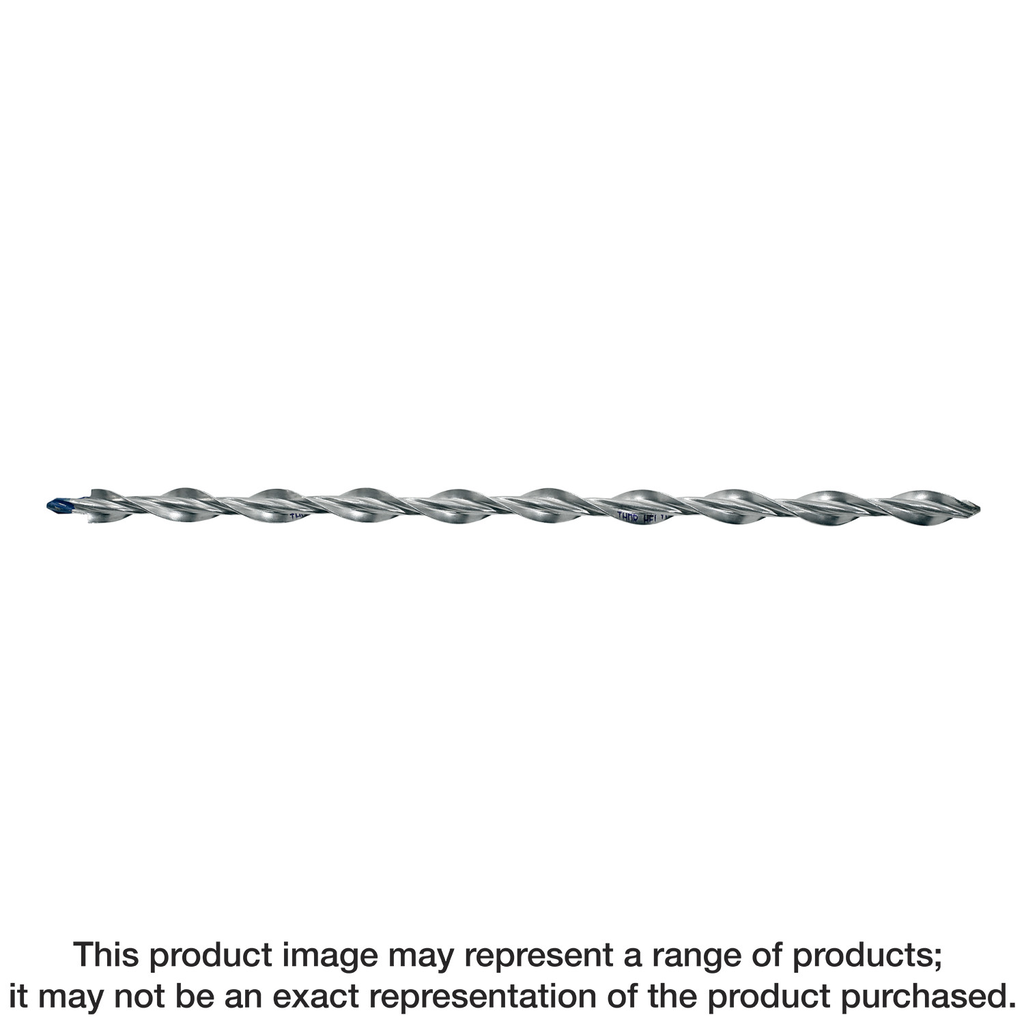

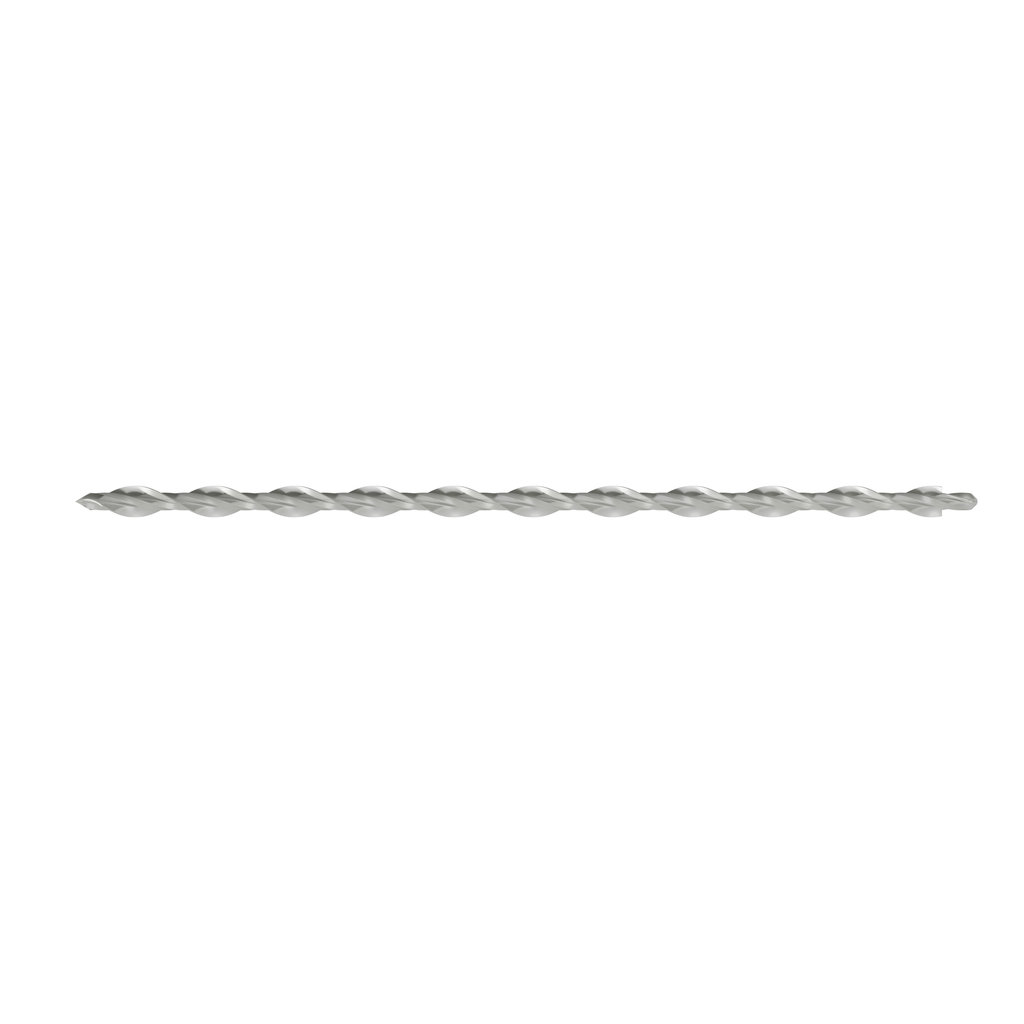

3/8 X 10 304SS HELI-TIE HELICAL TIE
$386.25
The Simpson Strong-Tie Heli-Tie™ is an innovative solution designed to provide reliable and discreet structural support in masonry and brick applications. With a unique fractional sizing that eliminates the need for metric drill bits, installation is efficient and straightforward, using a rotohammer to ensure faster setup compared to other options on the market. Once installed, the tie can be countersunk up to 1/2 inch below the surface, allowing for an inconspicuous repair that seamlessly blends with the building’s existing aesthetics. Crafted from corrosion-resistant stainless steel and featuring a larger core diameter, this wall tie offers enhanced torsional capacity, minimizing deflection under load and ensuring long-lasting performance.
Description
The Heli-Tie helical wall tie is a stainless-steel tie used to anchor building façades to structural members or to stabilize brick walls. The helical design allows the tie to be driven quickly and easily into a predrilled pilot hole (or embedded into mortar joints in new construction) to provide a mechanical connection between a masonry façade and its backup material. As it is driven, the fins of the tie undercut the masonry to provide an expansion-free anchorage that will withstand tension and compression loads. The Heli-Tie wall tie is installed into a predrilled hole using a proprietary setting tool with an SDS-plus® shank rotohammer to drive and countersink the tie. Heli-Tie wall ties perform in concrete and masonry as well as wood and steel studs.
Additional information
| Weight | 3.3 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 10.039 in |
| Length | 10 in |
