3/8 X 14 304SS HELI-TIE HELICAL TIE
$470.57

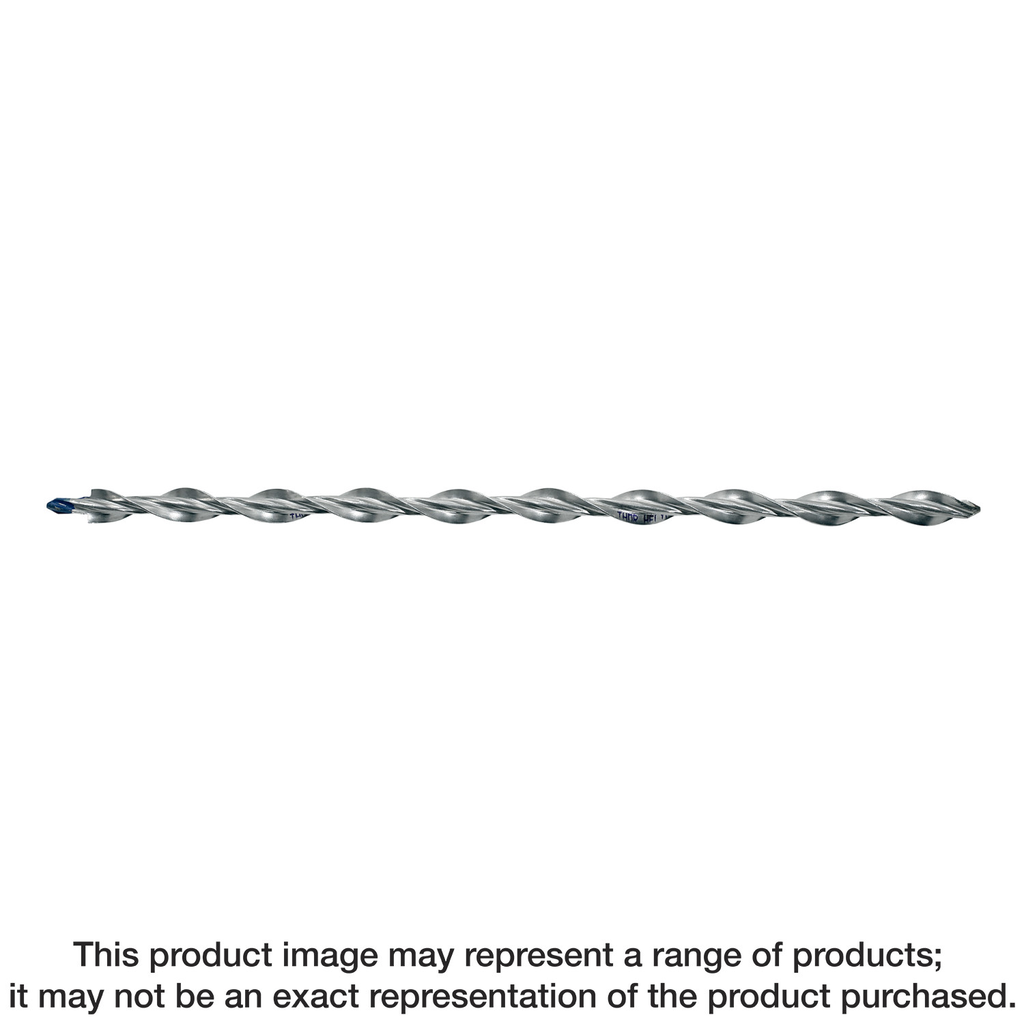

The Heli-Tie™ by Simpson Strong-Tie is engineered to provide robust structural support with a focus on ease of installation. This helical wall tie measures 3/8 inches wide and 14 inches in length and is designed for use with a rotohammer in hammer mode, allowing for a quicker setup compared to competitive options. Made from corrosion-resistant stainless steel, it not only enhances durability but also ensures a discreet repair that maintains the aesthetic integrity of the structure. The tie installs flush, with a countersunk depth of up to 1/2 inch, making it easy to patch after installation while the unique larger core diameter offers improved torsional capacity and reduced deflection. To complete the installation, you only need a 7/32 inch or 1/4 inch drill bit, eliminating the need for metric sizes.
Description
The Heli-Tie helical wall tie is a stainless-steel tie used to anchor building façades to structural members or to stabilize brick walls. The helical design allows the tie to be driven quickly and easily into a predrilled pilot hole (or embedded into mortar joints in new construction) to provide a mechanical connection between a masonry façade and its backup material. As it is driven, the fins of the tie undercut the masonry to provide an expansion-free anchorage that will withstand tension and compression loads. The Heli-Tie wall tie is installed into a predrilled hole using a proprietary setting tool with an SDS-plus® shank rotohammer to drive and countersink the tie. Heli-Tie wall ties perform in concrete and masonry as well as wood and steel studs.
Additional information
| Weight | 4.6 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 13.976 in |
| Length | 14 in |
