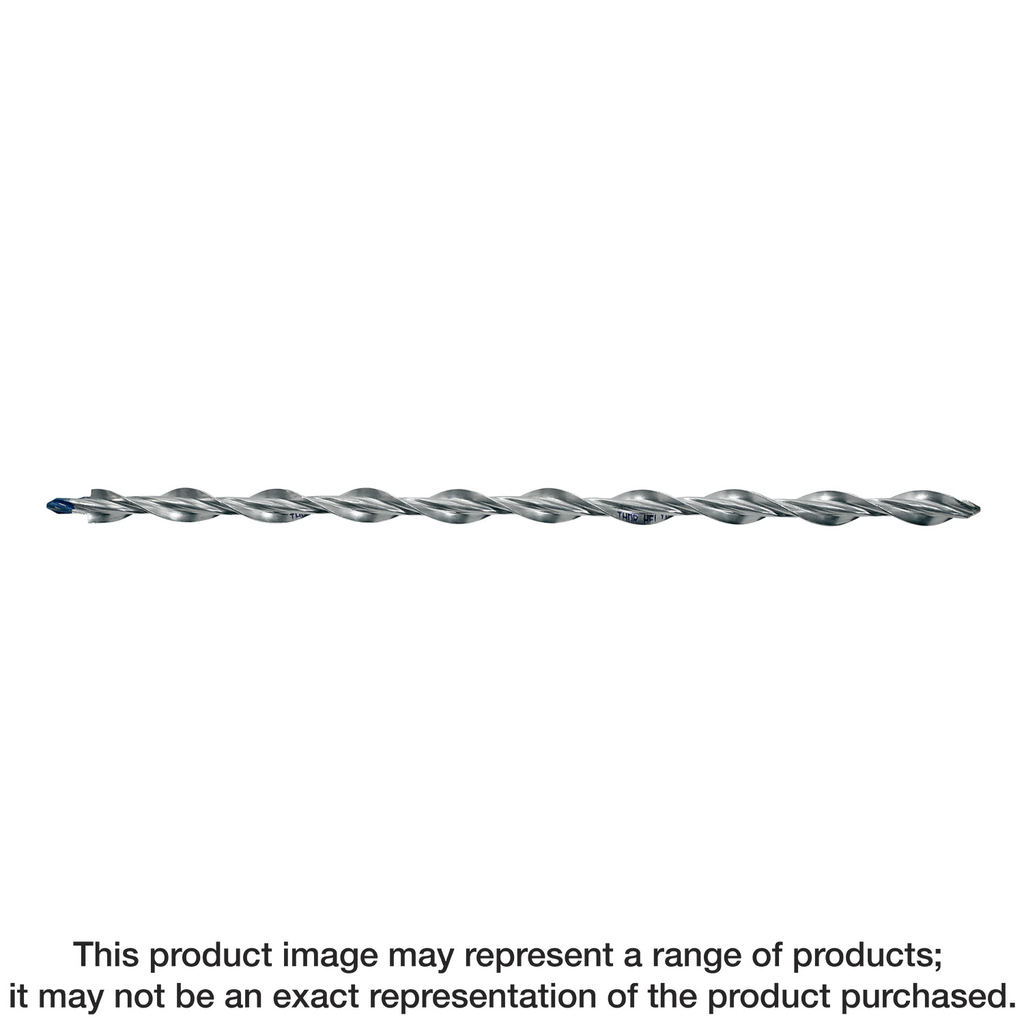

3/8 X 16 304SS HELI-TIE HELICAL TIE
$522.17
The Heli-Tie™ from Simpson Strong-Tie offers an innovative solution for reinforcing walls with its robust 3/8-inch diameter and 16-inch length design. Engineered with a larger core diameter, these helical wall ties deliver exceptional torsional capacity and significantly reduce deflection due to “uncoiling” under load, enhancing the structural integrity of your masonry. Crafted from corrosion-resistant stainless steel, they not only promise longevity but also allow for inconspicuous installation, as the ties can be countersunk up to half an inch below the surface for seamless wall repairs. Quick to install, requiring only a 7/32-inch or 1/4-inch drill bit, this product empowers builders and repair professionals to execute wall anchoring efficiently and effectively while maintaining aesthetic appeal.
Description
The Heli-Tie helical wall tie is a stainless-steel tie used to anchor building façades to structural members or to stabilize brick walls. The helical design allows the tie to be driven quickly and easily into a predrilled pilot hole (or embedded into mortar joints in new construction) to provide a mechanical connection between a masonry façade and its backup material. As it is driven, the fins of the tie undercut the masonry to provide an expansion-free anchorage that will withstand tension and compression loads. The Heli-Tie wall tie is installed into a predrilled hole using a proprietary setting tool with an SDS-plus® shank rotohammer to drive and countersink the tie. Heli-Tie wall ties perform in concrete and masonry as well as wood and steel studs.
Additional information
| Weight | 5.25 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Length | 16 in |
| Depth | 15.945 in |
