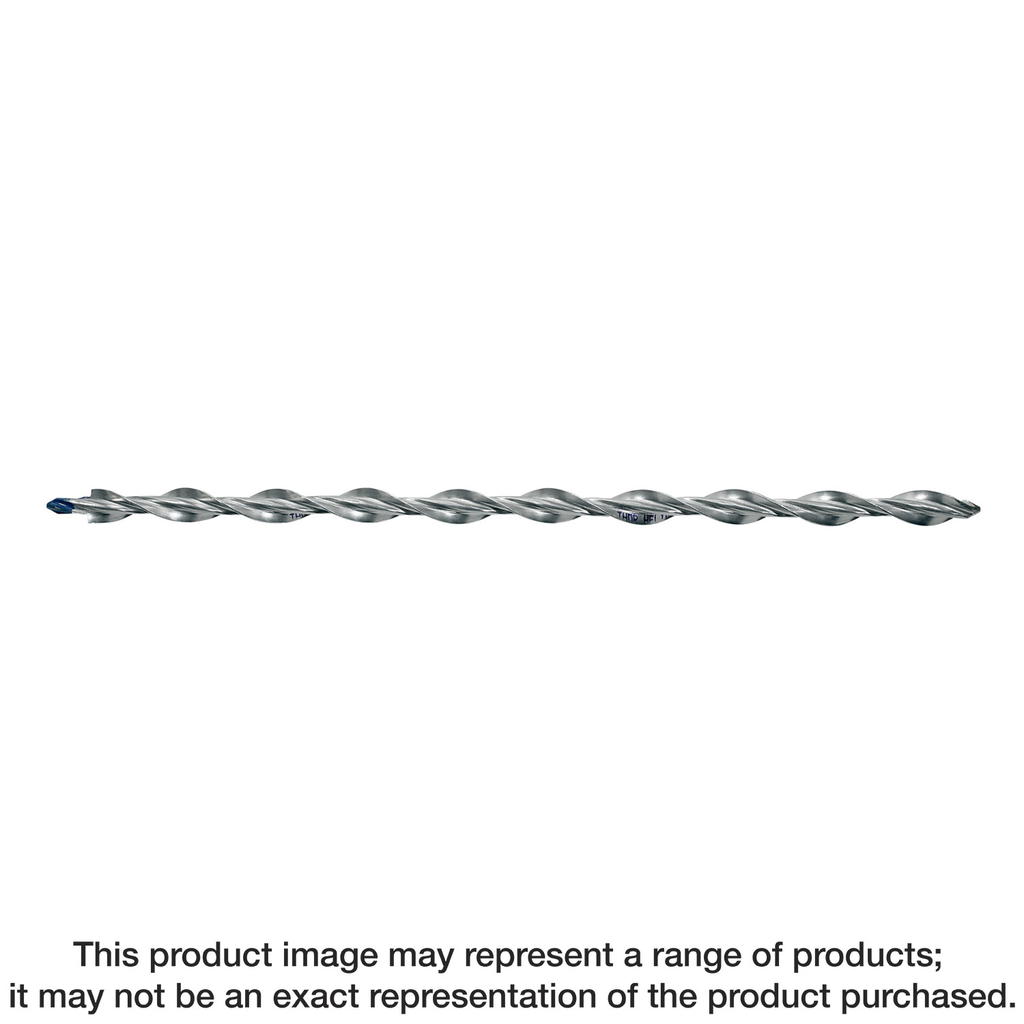

3/8 X 18 304SS HELI-TIE HELICAL TIE
$600.76
The HELI371800A Heli-Tie™ from Simpson Strong-Tie is designed to provide sturdy support and repair for various construction and remodel projects. Measuring 18 inches in length, this helical wall tie features a larger core diameter that enhances its torsional capacity, ensuring minimal deflection under load. Crafted from corrosion-resistant stainless steel, it not only guarantees longevity and durability but also installs quickly and effortlessly—thanks to its compatibility with 7/32-inch or 1/4-inch drill bits and the ability to work rapidly with a rotohammer in hammer mode.
Description
The Heli-Tie helical wall tie is a stainless-steel tie used to anchor building façades to structural members or to stabilize brick walls. The helical design allows the tie to be driven quickly and easily into a predrilled pilot hole (or embedded into mortar joints in new construction) to provide a mechanical connection between a masonry façade and its backup material. As it is driven, the fins of the tie undercut the masonry to provide an expansion-free anchorage that will withstand tension and compression loads. The Heli-Tie wall tie is installed into a predrilled hole using a proprietary setting tool with an SDS-plus® shank rotohammer to drive and countersink the tie. Heli-Tie wall ties perform in concrete and masonry as well as wood and steel studs.
Additional information
| Weight | 5.95 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Manufacturer | Simpson Strong-Tie |
| Length | 18 in |
| Depth | 17.913 in |
